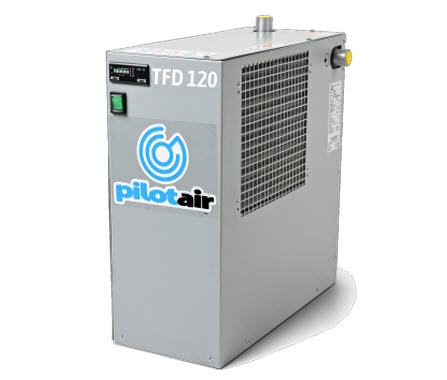

Refrigerated Compressed Air Dryer 200 L/S Capacity / 415V / 2” BSP F TFD120

The Pilot TFD 6 Refrigerated Compressed Air Dryer System is rated for Australian conditions with a flow rate based on an ambient temperature of 35°c. It offers a cost-effective air treatment solution, with reduced downtime, lower equipment maintenance costs and improved product finish.

Fitted with the efficient ALU-DRY heat exchanger, high-efficiency compressors, hot gas bypass valve and low-pressure drop, the system also offers reduced energy consumption
Upgraded electrical control panel
Hot gas bypass valve
Condensate drain
Rated for Australian conditions with a flow rate based on an ambient temperature of 35°c

Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements.
Warranty: 12 months on all products listed.
A 3 micron Pre-Filter is required to be fitted in the compressed Air System prior to the dryer to ensure product warranty

Data refers to the following condition: Ambient temperature of 35°c, with inlet air at 7 bar and 45°c. Pressure dew point as per Class 5-ISO Standard 8573.1.

Part Number/SKU: TFD120

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
