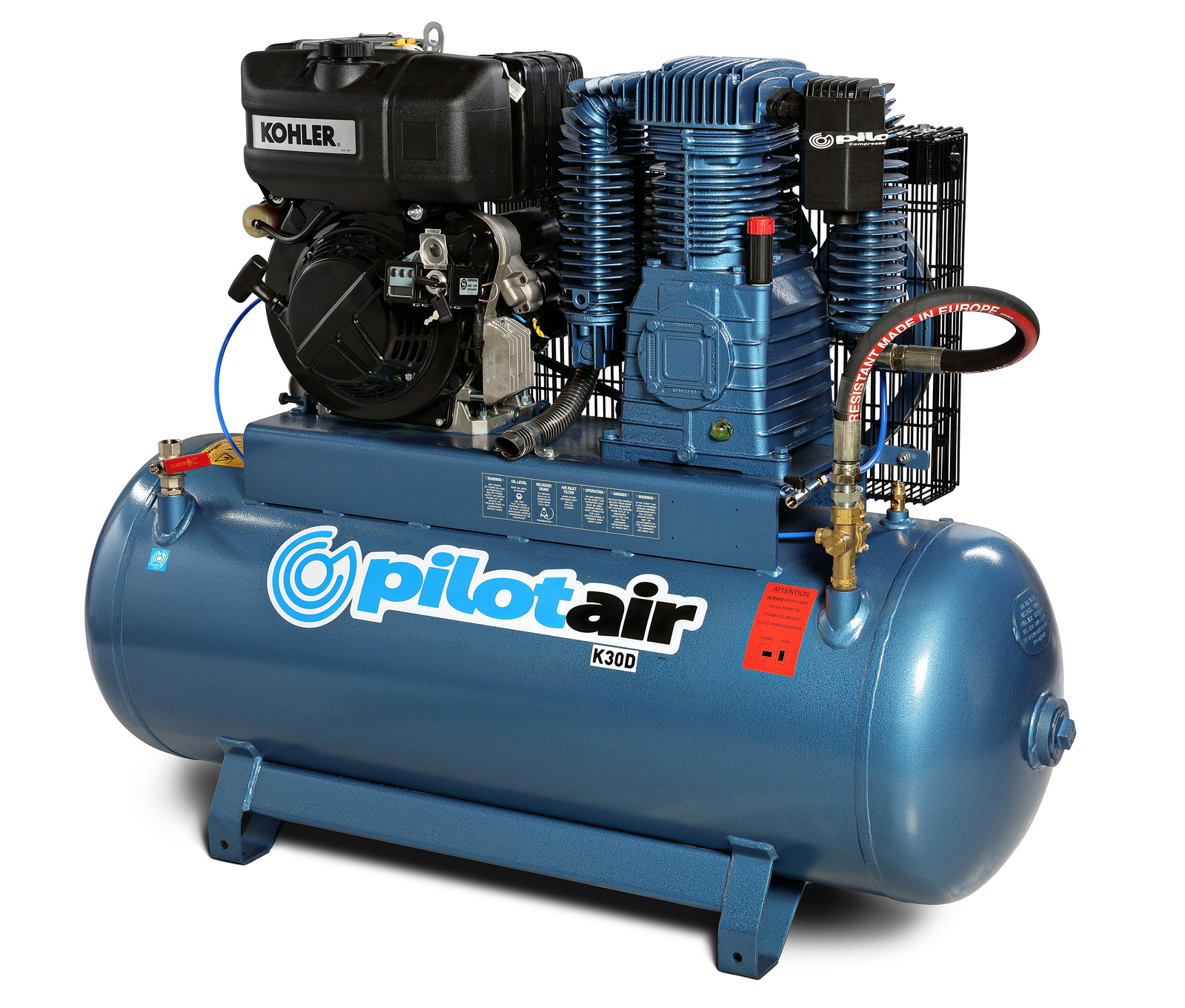

K30D AIR COMPRESSOR

–

DIESEL DRIVEN

PISTON DISPLACEMENT                      981 L/MIN ~ 34.7 CFM*

FREE AIR DELIVERY                            812 L/MIN ~ 28.7 CFM*

MAXIMUM CUT OUT PRESSURE           1100 KPA ~ 160PSI

COMPRESSOR PUMP                          TWIN CYLINDER,TWO STAGE, ITALIAN MADE

ENGINE                                                KOHLER KD440 (10.3 HP @ 3600RPM) ELECTRIC START

NOTE: BATTERY & LEADS NOT INCLUDED

RECEIVER                                            147 LITRE (STATIC PALLET FEET), TO AS1210, AUSTRALIAN MADE

DIMENSIONS                                        1450mm L X 580mm W X 1050mm H

WEIGHT                                                200 KG*

AIR OUTLET                                          3/4'' BSP

FEATURES

AUSTRALIAN DESIGNED AND BUILT

CAST IRON CYLINDER PUMP

INDUSTRIAL GRADE HAMMERTONE ENAMEL FINISH

PNEUMATICALLY CONTROLLED AUTOMATIC IDLE DOWN CONTROL

“EASY START VALVE”

WARRANTY: 3 YEARS ON PUMP AND MOTOR, 1 YEAR ON ALL OTHER COMPONENTS

• DIESEL DRIVEN COMPRESSOR K30D

Part Number/SKU: K30D

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
