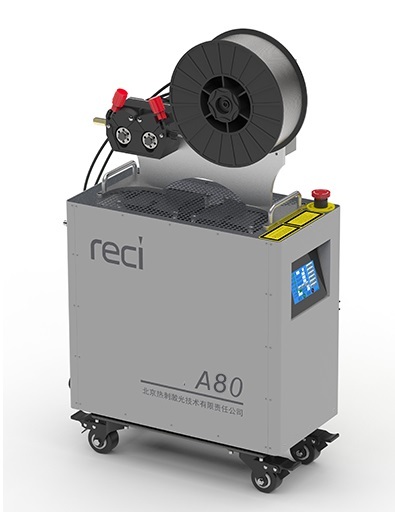

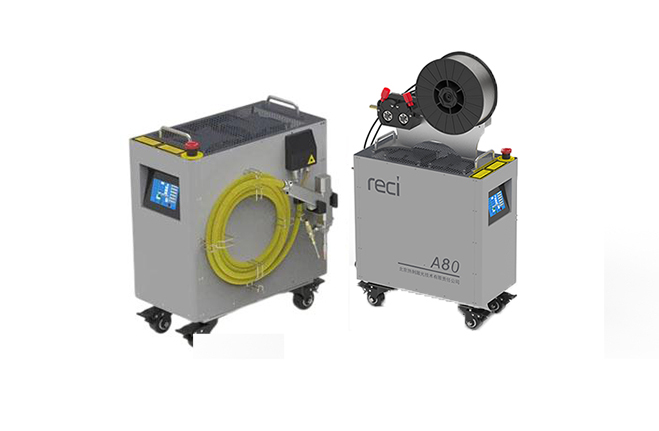

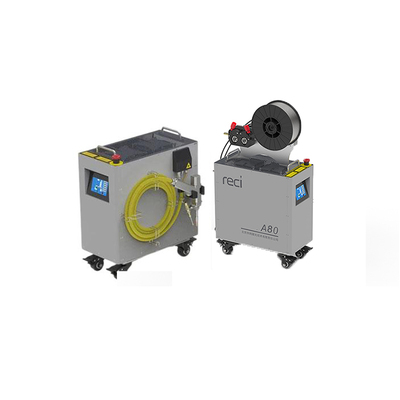

RECI Fiber Laser Welder A80

Product Characteristics:

High wall-plug efficiency
High power with Excellent beam quality
High reliability, long service life, maintenance free
All fiber structure, compact, rugged package05 Multiple anti-high-reflection

Product Description

Product Category: 0.8-1.5kw fiber laser

Description: A series high-power single-mode continuous-wave fiber laser is developed and produced by Reci Laser. The average power exceeds 1000W with single resonant cavity and single-mode beam quality by solving the obstacle of transverse mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality. This series products can be widely used in fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, high beam quality, and high electro-optic conversion efficiency.

Previous Model: FCA1000

Model Parameters

MODEL	A80
Limit output power (W) (At the current of 19A)	700
Max output power (W) (At the current is 225A)	800
Operating Mode	24h continuous working
Power Range (%)	10-100
Central Wavelength (nm)	1080 +3
Power instability during continuous operation (%) (initial power and power after 1 hour of operation)	< 1
Power instability under different operating conditions (%) (Environmental temperature 0 c and 40 c	< 3
Max Modulation Frequency (kHz)	20
Delivery Fiber Length (m)	Standard 5m or 10m customizable
Operating Voltage (VAC)	AC 220V 50/60Hz
Red Laser Power (mw)	> 0.5
Power consumption (w)	< 2500
Control Model	Ext AD/ LOC AD
Ambient Humidity )%)	< 90
Ambient Temperature (C)	- 20 - 40
Cooling Method	Air Cooling
Size WHD (mm 2)	273 * 614.9 * 396.3
Weight (kg)	< 34

Alternative SKU: FCA1000
Alternative SKU: PULSELASERSYSTEM LASER-WELDER

Part Number/SKU: A80

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	A80
Brand	Reci
Shipping Weight	35.0000kg
Shipping Width	0.810m
Shipping Height	1.200m
Shipping Length	0.520m
Shipping Cubic	0.505440000m3
Unit Of Measure	ea
