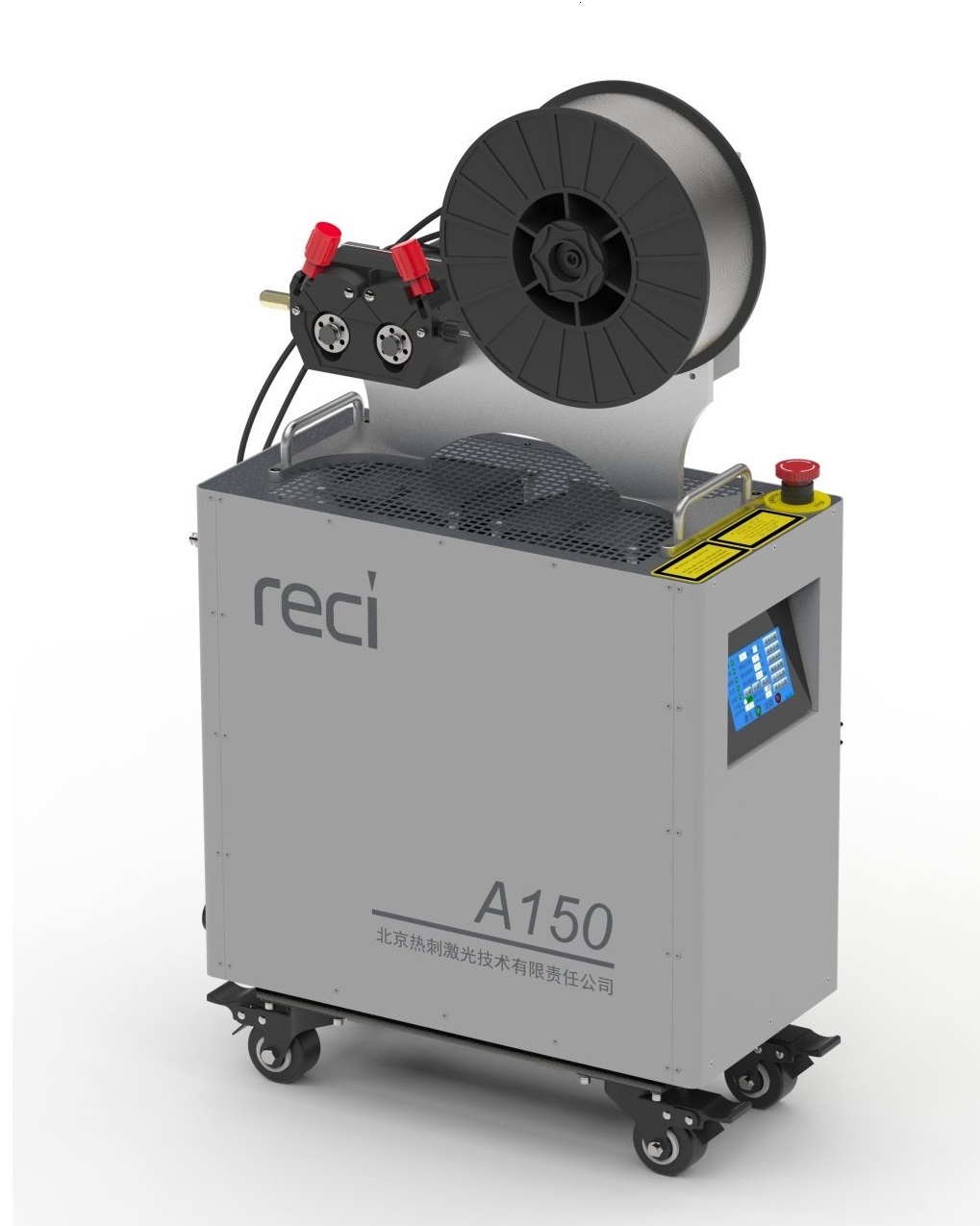

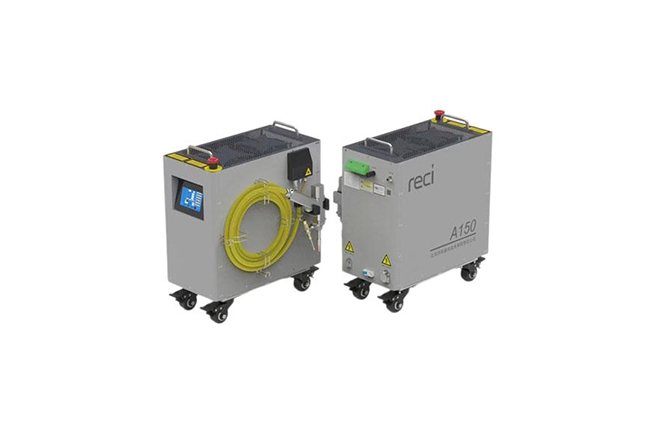

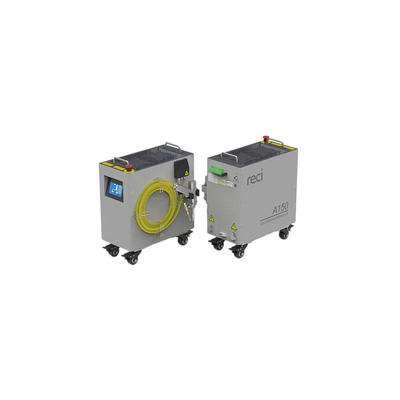

RECI Air-Cooled Fiber Laser Welder A150

The A series Reci Welding machine is independently developed and prodyced by reci laser. Compared with traditional air & solid laser devices, the product has the outstanding characterstics of higher electro-optical conversion efficiency as well as superior beam quality.

Meanwhile, due to the coilability of optical fiber, the structure of the fiber laser is more compact. The Reci air-cooled laser welder has the advantages of wall plug efficiency, high output power, superior beam quality, compact structure, Maintenance-free, and low cost, and can be widely used in metal processing related fields like Industrial processing, Military and national defense, scientific research and other scenerios.

Product Characteristics:

• High wall-plug efficiency
• High power with Excellent beam quality
• High reliability, long service life, and maintenance-free
• All-fiber structure, compact, rugged package Multiple anti-high-reflection
• pulse laser systems

Parameters

Model	A150
Limit Power (W)(At the current of 19A)	1300W
Maximum Power (W)(the current is 225A)	1500W
Operating Power	Continious welding & Spot Welding
Polarization Direction	Random
Output Power adjustment Range	10-100%
Central Wavelength	1080 +-3nm
Power attenuation after 1 Hour of continious operation	<2%
Maximum Modulation Frequency	5 Khz
Indicating Red Light Power	>=0.2mW
Output fibre core Diameter	20µm
Ouput Armored Cable Length	Default 5M
Operating Volatge	AC 220V Single Phase, 50/60Hz
Maximum Power consumption	<4100W
Control Method	Touch Screen
Dimension (W X H X D)	273 X 634.1 X 527.7 mm
Weight	43 Kg
Operating Temperature	-30~40°C
Operating Humidity	<90%
Cooling	Air
Storage Temperature	-10-60°C
Inert gas pressure	≤0.7MPa



Reci Air Cooled Laser Welder Features -

• It is 7 Times more efficient than traditional argon arc weldedr
• 14 micron core diameter optical fiber output, fundamental mode light spot, good beam quality
• The welding depth is 1.5 times that of other water-cooled lasers with the same power
• High wall-plug Efficienct, the Wall plug efficiency of whole machine is 38%
• Purely air cooled compact structure design, can work in -30°C ~-40°C
• High reliability, service life is more than 6 Years, low maintenance cost
• Saving power, compared with water cooled laser welding machine, It saves electricity cost, saving cost of one and half years almost can buy a new Reci air cooled laser welder



Product Category: 0.8-1.5kw fiber Fiber Laser

Description: A series high-power single-mode continuous-wave fiber laser is developed and produced by Reci Laser. The average power exceeds 1000W with single resonant cavity and single-mode beam quality by solving the obstacle of transverse mode instability (TMI), stimulated Raman scattering (SRS) and poor beam quality. This series products can be widely used in fine cutting, metal welding, surface treatment, 3D printing and rapid prototyping, due to the high average power, multiple anti-high-reflection, high beam quality, and high electro-optic conversion efficiency.





Previous Model : FCA1500

Alternative SKU: FCA1500

Part Number/SKU: A150

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
