Razor Multi 230 AC/DC Bundle Unimig PK11108

DESCRIPTION:

Our brand new RAZOR MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZOR line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.

FEATURES:

• 5” Colour LCD Screen
• Gas-shielded & Gasless MIG
• AC/DC High-Frequency TIG
• Pulse MMA
• Power Factor Correction (PFC)
• SPOOL GUN READY
• Wireless Foot Control Ready
• Hot Start  & Crater Fill
• Geared Wire Drive

SPECIFICATIONS:

• PRIMARY INPUT VOLTAGE: 240V Single Phase
• SUPPLY PLUG: 15 AMP
• Ieff (A): 9.4 / 15
• "RATED OUTPUT: 25A/15.3V-200A/24V (10A)
• 25A/15.3V-230A/25.5V (15A)"
• PROTECTION CLASS: IP21
• INSULATION CLASS: H
• MINIMUM GENERATOR (kVA): 8.5 (10A) / 10 (15A)
• DINSE CONNECTOR: 35/50
• STANDARD: AS/NZ60974-1
• WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• WARRANTY (Years): 3

MIG SPECIFICATIONS:

• MIG WELDING CURRENT RANGE: 25-200A (10A) / 25-230A (15A)
• "MIG DUTY CYCLE @ 40°C: 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) /
• 25% @ 230A, 60% @ 187A, 100% @ 145A (15A)"
• MIG WIRE SIZE RANGE: 0.6-1.0mm
• MIG WIRE SPOOL SIZE: 1kg / 5kg
• MIG WELDING THICKNESS RANGE: 1-10mm
• DRIVE ROLLER SIZE: 30/22

TIG SPECIFICATIONS:

• TIG FUNCTION TYPE: AC/DC High-Frequency
• TIG WELDING CURRENT RANGE: 10-200A
• TIG DUTY CYCLE @ 40°C: 25% @ 200A, 60% @ 130A, 100% @ 100A (10/15A)
• TIG WELDING THICKNESS RANGE: 1-8mm

STICK SPECIFICATIONS:

• STICK WELDING CURRENT RANGE: 10-200A
• "STICK DUTY CYCLE @ 40°C: 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) /
• 25% @ 200A, 60% @ 130A, 100% @ 100A (15A)"
• STICK ELECTRODE RANGE: 2.5-4.0mm
• STICK WELDING THICKNESS RANGE: 2-12mm
• SIZE & WEIGHT:
• DIMENSIONS (mm): 660x210x330mm
• WEIGHT (kg): 20kg

MACHINE FEATURES:

• WIRE DRIVE: Geared
• VRD: Yes
• SYNERGIC PROGRAMS: Yes
• BURNBACK ADJUSTMENT: Yes
• THERMAL OVERLOAD PROTECTION: Yes
• POWER FACTOR CORRECTION (PFC): Yes

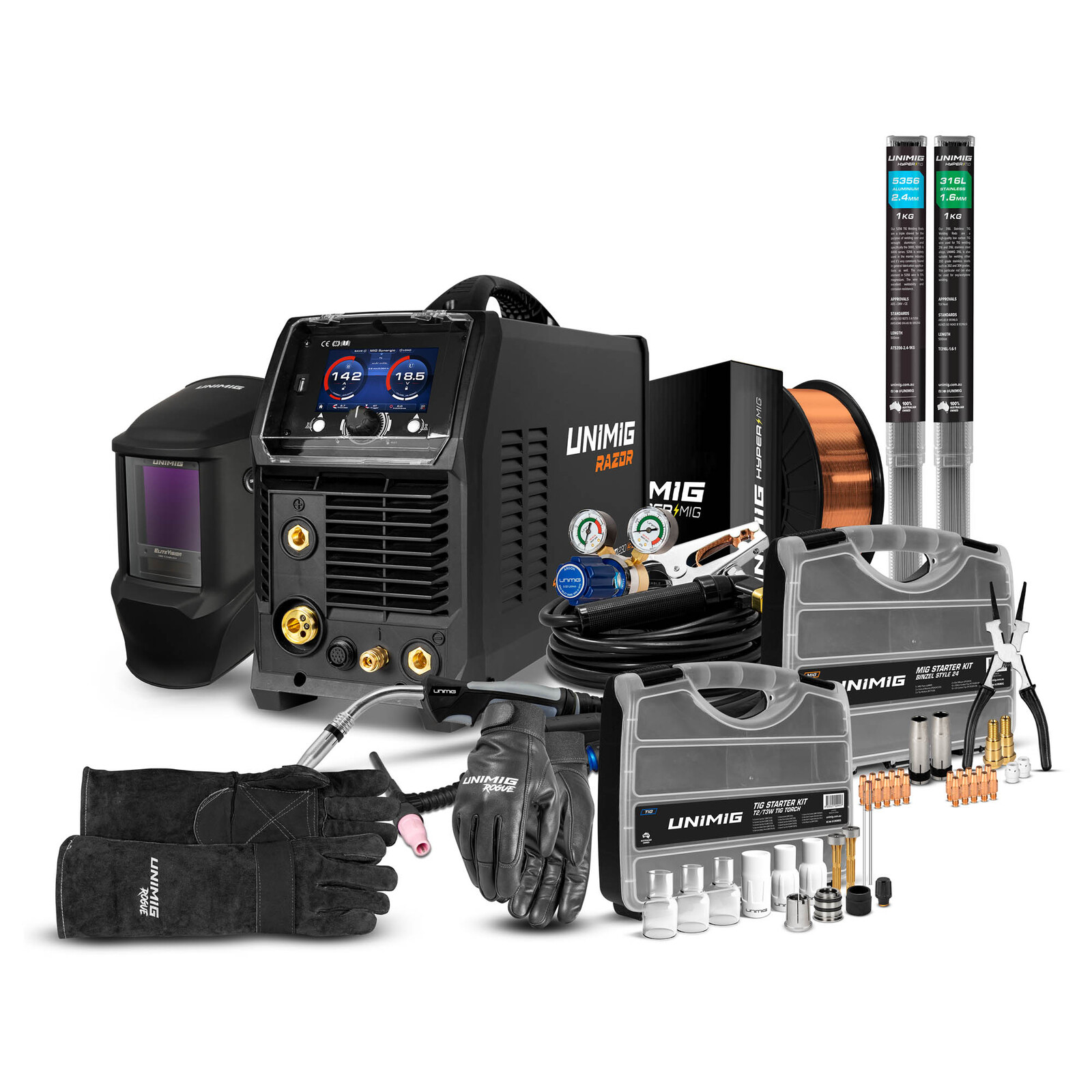

BUNDLE CONTENTS:

• Razor multi 230 AC/DC welder.
• Welding helmet trade series black.
• A consumable starter kit suit M24.
• Consumable starter kit suit T2/T3W.
• ER70S-6 mild steel wire 0.9mm 5kg.
• 5356 tig filler rod 2.4mm 1kg.
• 316l tig filler rod 1.6mm 1kg.
• Rogue heavy-duty welding gloves.
• Rogue tig welding gloves-large.


Part Number/SKU: PK11108

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
