Razor 200 Pulse Bundle Unimig PK11109

DESCRIPTION:

The all-new RAZOR 200 PULSE has arrived. As our latest innovation in pulse MIG, this machine comes filled with revolutionary technology across the board. Whether it’s MIG, pulse MIG, double pulse MIG, High-Frequency TIG, pulse TIG, or STICK – you name it, the RAZOR 200 PULSE can handle it. Get everything pulse MIG has to offer on a 15 amp plug.

FEATURES:

• Single & Double Pulse MIG
• 100+ Synergic Programs
• 5" Touch LCD Screen
• Digital MIG Torch
• Hot Start & Crater Fill
• 4 Geared Wire Drive
• 100 Job Memory

SPECIFICATIONS;

• PRIMARY INPUT VOLTAGE: 240V Single Phase
• SUPPLY PLUG: 15 AMP
• Ieff (A): 14.9
• RATED OUTPUT: 40A/16V-200A/24V
• NO LOAD VOLTAGE (V): 77
• PROTECTION CLASS: IP23S
• INSULATION CLASS: H
• MINIMUM GENERATOR (kVA): 11
• DINSE CONNECTOR: 35/50
• STANDARD: AS/NZ60974-1
• WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• WARRANTY (Years): 3
• MIG WELDING CURRENT RANGE: 40-200A
• MIG DUTY CYCLE @ 40°C: 15% @ 200A, 60% @ 101A, 100% @ 78A
• MIG WIRE SIZE RANGE: 0.6-1.0mm
• MIG WIRE SPOOL SIZE: 1kg / 5kg
• MIG WELDING THICKNESS RANGE: 1-10mm
• DRIVE ROLLER SIZE: 30/22
• TIG FUNCTION TYPE: High-Frequency
• TIG WELDING CURRENT RANGE: 5-200A
• TIG DUTY CYCLE @ 40°C: 20% @ 200A, 60% @ 116A, 100% @ 90A
• TIG WELDING THICKNESS RANGE: 1-8mm
• STICK WELDING CURRENT RANGE: 20-180A
• STICK DUTY CYCLE @ 40°C: 15% @ 180A, 60% @ 91A, 100% @ 70A
• STICK ELECTRODE RANGE: 2.5-4.0mm
• STICK WELDING THICKNESS RANGE: 2-12mm
• DIMENSIONS (mm): 605x230x400mm
• WEIGHT (kg): 17kg
• WIRE DRIVE: 4 Geared
• VRD: Yes
• FOOT CONTROL CONNECTION: Yes
• BURNBACK ADJUSTMENT: Yes
• WIRE INCH: Yes
• INDUCTANCE CONTROL: Yes
• THERMAL OVERLOAD PROTECTION: Over Temperature Warning

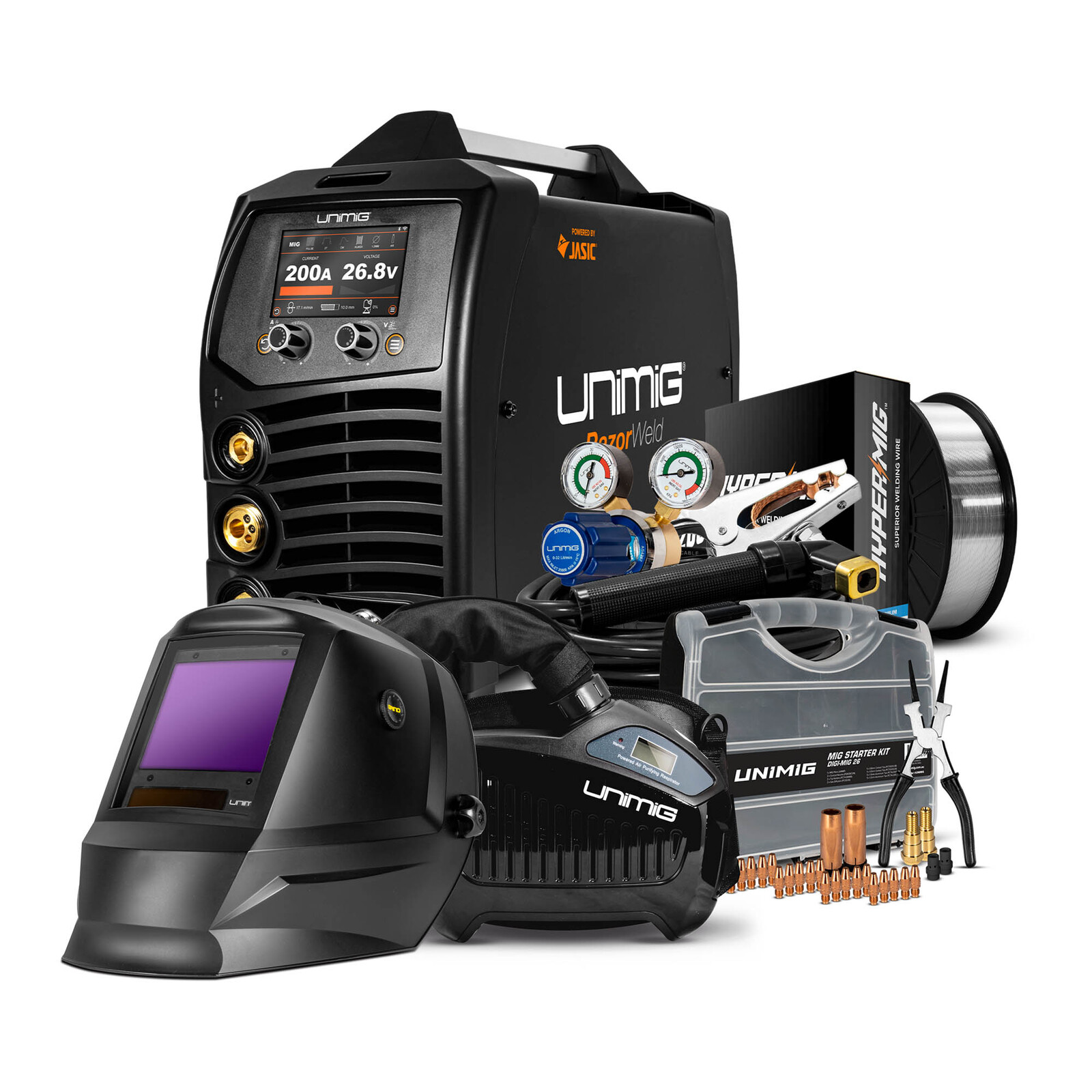

BUNDLE CONTENTS:

• Razor 200 pulse welder.
• Papr-powered air-purifying respirator

Part Number/SKU: PK11109
