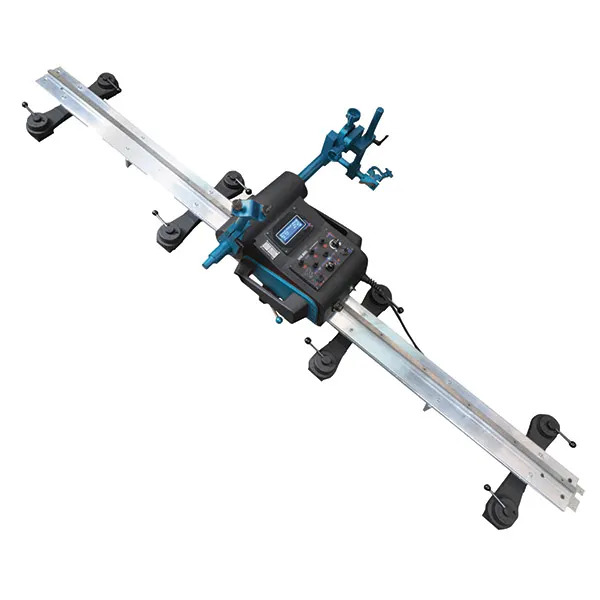

Railbull Track Based Welding Carriage With Oscillator ITM WA-RAILBULL

The Rail Bull is a track welding carriage designed to produce butt and fillet welds with or without oscillation. The carriage can work in PA (flat), PB (horizontal vertical), PC (horizontal), PD (overhead horizontalvertical), PE (overhead), PF (vertical-up) and PG (vertical-down) welding positions.

• Compact, lightweight design with durable aluminum cast housing
• Convenient Power Supply 115–230 V, 50–60 Hz or 42 V, 50–60 Hz

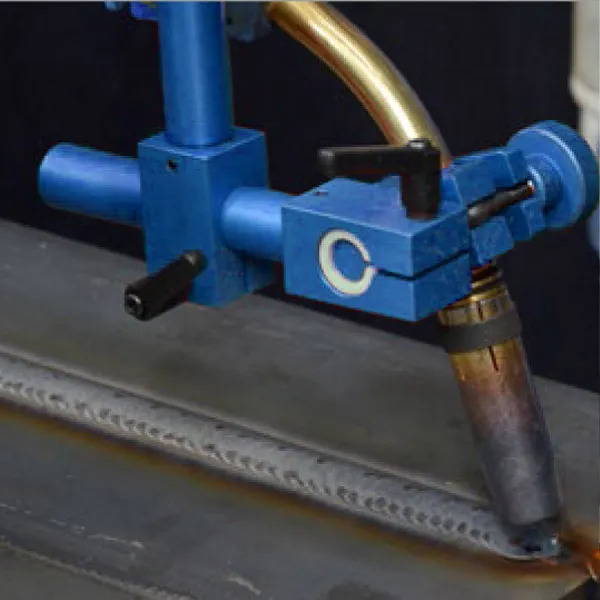

• Quick clamping torch holder mechanism for different types of MIG/MAG torches with diameters of 16–22mm; up to 35mm option
• Precise torch adjustment with screw drive cross slide

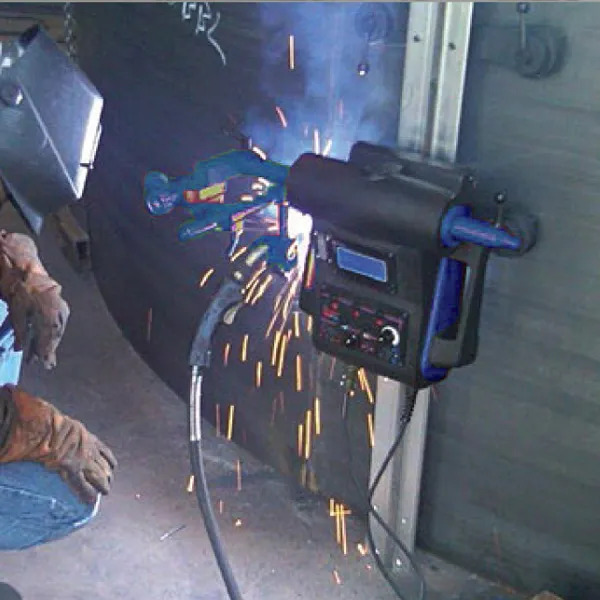

• Ready to work in both vertical and horizontal positions
• Multifunctional LED display (process parameters & warnings)
• Consistent heat input reduces distortion
• Reduce wasted filler metal - eliminates over welding
• Automatic arc on/off initiates welding and travel, simultaneously
• Closed loop position control system based on electrical motor with encoder, ensures increased accuracy of speed and positioning
• Improves working environment - removes operator from heat and fumes
• Linear torch oscillator to produce weave welds
• Menu in English (other languages on request)
• Rack and pinion drive
• Continuous welding
• Rigid rail track system.

Applications

Trailer manufacturing, Truck tanks, Oil tanks, Water storage tanks, Pressure vessels, Vessel overlay / Hard facing, Bridge girders, Structural steel, Structural towers, Panel welding, Transformers, Shipyards or Any application demanding long, continuous welds.

Package Includes

• Welding carriage
• Cross slide assembly
• Short rod torch holder with clamp
• Cable anchor
• Power cord 3m
• Arc ignition cable of 6.5m
• 3mm hex wrench
• 4mm hex wrench
• Operator’s manual
• Metal case

Specifications:

• Voltage: 1~ 115–230 V, 50–60 Hz / 42 V, 50–60 Hz
• Power: 100W
• Welding position (according to EN ISO 6947 and AWS/ASME):
• - PA / 1F / 1G
• - PB / 2F
• - PC / 2G
• - PD / 4F
• - PE / 4G
• - PF / 3G
• - PG / 3G
• Torch diameter: 16–22mm; up to 35mm option
• Minimum radius of curved workpiece surface: 5000mm
• Minimum workpiece thickness: 5mm
• Horizontal pulling force: 350N
• Vertical pulling force: 150N
• Cross slide adjustment range: 0–35mm up-down, left-right
• Horizontal speed: 0–120 cm/min
• Vertical speed: 0–110 cm/min
• Weight: 20kg
• Welding settings storage: 1 (last used)
• Oscillation type linear: (0 - 100mm)
• Oscillation (weaving) pattern: trapezoid, triangle, straight line
• Oscillation width: 0–50mm
• Oscillation speed: 0–1500 mm/min
• Oscillation delay time: 0–5s (at external and central points)

Part Number/SKU: WA-RAILBULL
