PRO5 Pipe Beveller Kit With Metabo Motor Cap 32mm ID 114mm OD WA-PRO5PBE

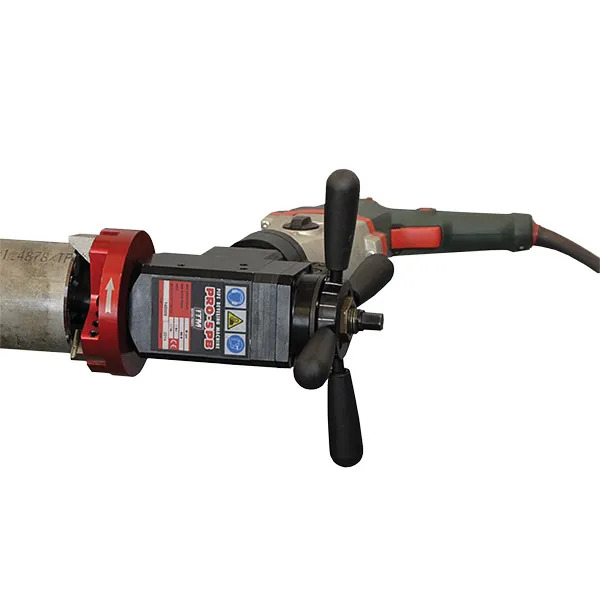

The ITM PRO 5 PB is a European made I.D. mounted pipe bevelling machine, designed for portable use by a single operator. The self-centring expandable mandrel provides quick and correct alignment to pipe or tube prior to machining operations.
The Pro 5 PB is able to simultaneously perform 3 of the following operations:
External bevel, internal bevel, face off, I.D. chamfer, J-groove bevel, and counterbore.

Use any tool bit from ID 25 mm up to OD 140 mm, provided that PRO5PB is equipped with just 1 tool bit either for facing-off or for beveling – no mater short or long.

Pipe machining range:

• 32mm I.D. minimum pipe capacity
• 114mm O.D. maximum pipe capacity
• 25mm I.D. minimum pipe capacity with optional small mandrel
• 140mm O.D. maximum pipe capacity with optional 140mm spindle disk set
• 12mm maximum wall thickness

PACKAGE INCLUDES:

• PRO 5 PB Bevelling Machine with Electric or Pneumatic Motor
• Mandrel 32mm I.D. to 107mm I.D
• 118mm spindle disc
• 3 x set of jaw blocks (1,2,3,4,5,6)
• Set of tools
• Coolant container
• Operator's manual

Part Number/SKU: WA-PRO5PBE

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
