Pneumatic spot welders - Items 4648

TECNA spot welders are designed to meet every need of spot welding.
The new stationary ergonomic frame designed by TECNA helps to facilitate the operator's work.
The control unit has been positioned frontally to allow the operator to view the welding data even during the working cycle.
The pneumatic commands and the compressed air pressure gauge have been placed at the top for easier adjustment and reading.

MAIN WELDER FEATURES

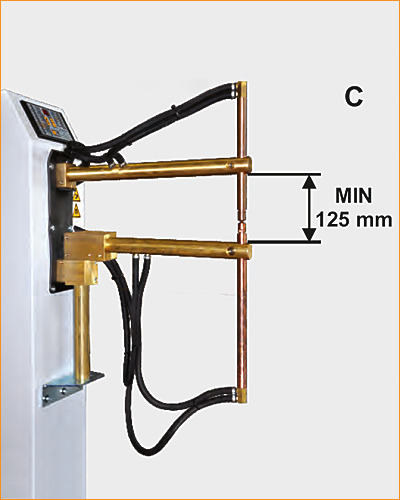

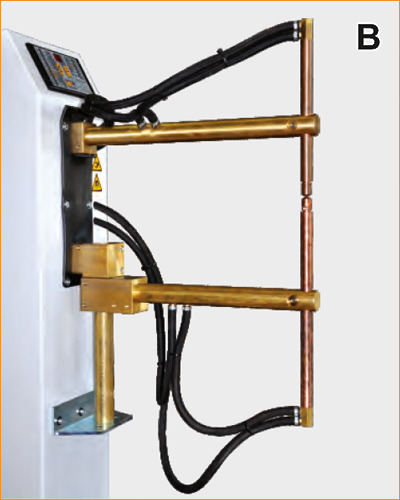

  • Arms adjustable in length allowing a better working flexibility.

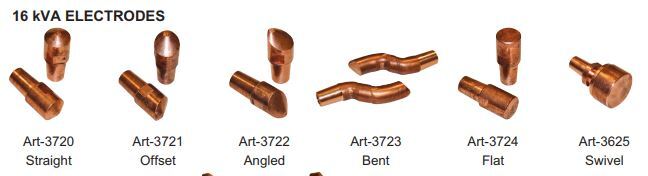

  • Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting.
  • Adjustable electrode stroke.
  • Epoxy resin coated transformer.
  • Water-cooled transformer, arms and electrodes.
  • Microprocessor control unit TECNA TE90.
  • The air operated lubrication free cylinder eliminates oil mist.
  • Electrode force adjustment with air filter reducer with gauge.
  • Semi-automatic drainage system.
  • Electrode speed control valves, shock absorber for cylinder's end of stroke and air discharge silencers.
  • Two-stage electric foot pedal, that besides its normal use in automatic and single spot mode, allows the operator to bring the pieces together and to weld them only when correctly positioned.
  • Pre-arrangement for the connection of a second electric two-stage foot pedal item 70284.
  • The addition of the second foot pedal allows to recall two different adjustments of time- current. This function is helpful when different kinds of welding are to be performed on the same piece.

* Some Spot Welders require special electrical requirements. If you are unsure an electrician can help determine what is needed with our Spot Welder Calculators.

We will customize machine to your need. Free Design


Part Number/SKU: 4648

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 4648
Brand Tecna
Shipping Weight 250.0000kg
Shipping Width 1.200m
Shipping Height 1.800m
Shipping Length 1.200m
Shipping Cubic 1.728000000m3
Unit Of Measure ea
