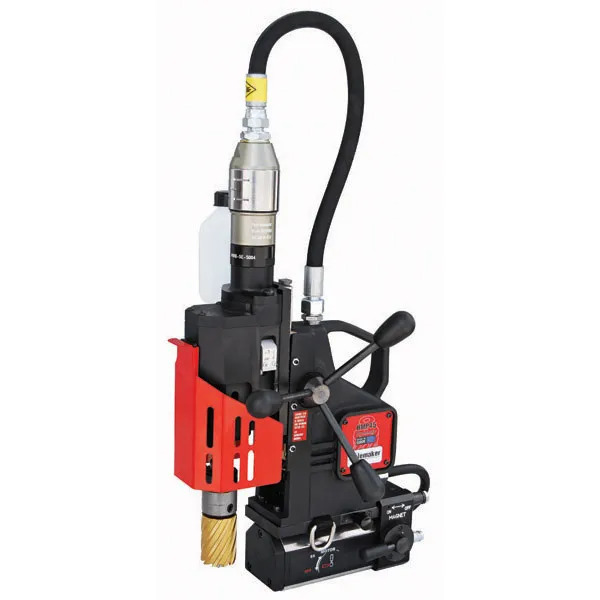

Pneumatic Magnetic Base Drill 2MT 190/290 RPM HMP45-ATEX

The HMP45 is a compact portable pneumatic powered drilling machine which allows hole cutting up to 45mm diameter and 52mm depth using Holemaker cutters. The No. 2 Morse Taper spindle allows a wide range of tooling to be used with the machine.
The combination of pneumatic drive and permanent magnetic base eliminate the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry.

The compressed-air motor used in the HMP45 drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.

SPECIFICATIONS

  CAPACITY (Diameter)   45mm
  CAPACITY (Depth)   52mm
  CAPACITY (Twist Drill)   2 Morse Taper 23mm
  MOTOR   Power 800 Watt Pneumatic, 1400L/min
  SPEED   2 Speed 190 / 290 rpm
  WEIGHT    19.0 kg
  MAGNETIC DEAD LIFT   7500 Nm on 25mm Steel Plate

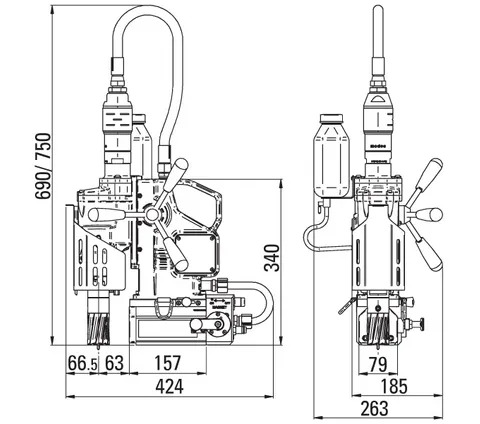

  HEIGHT     690mm min / 750mm Max
  STROKE     150mm




Part Number/SKU: HMP45-ATEX

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU HMP45-ATEX
Brand Holemaker
Shipping Weight 20.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
