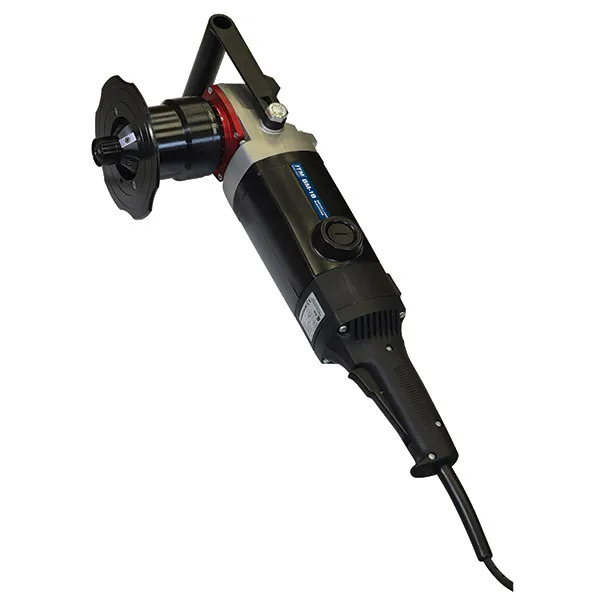

Plate Beveller Portable Max Bevel Width 18mm 240V Motor ITM WA-BM18

FEATURES

• Powerful electric motor
• Maximum 18mm bevel width (more than one pass may be required)
• Mill edges of plates and pipes made of steel, aluminium alloys, brass or plastic
• Bevel materials with minimum thickness of 1.5mm
• Continuous bevel width adjustment
• New more durable milling heads with hexagonal fixing
• Easy replacement of milling head
• Rounding inserts R2, R3, R4 or R5 available
• 4-sided indexable cutting inserts (sold separately)

STANDARD SET INCLUDES:

• WA-BM18 bevelling machine without milling head
• Plastic box
• 32mm flat wrench
• Allen wrench hex s=6
• Does not include milling head
• Contact block
• 6mm hex wrench
• Operator’s manual

SPECIFICATIONS

• Power: 2200 W
• Spindle Speed (Without Load): 1800 - 5850 rpm
• Maximum Bevel Width: 18mm
• Bevel Angle (Depending On Milling Head): B = 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°
• Minimum Workpiece Thickness: 2mm
• Minimal Diameter Of Countersinking: ca 40mm
• Rounding Edges: R2, R3, R4, R5
• Dimensions (L x W x H): 585mm × 156mm × 238mm
• Weight (Without Milling Head): 10kg

Part Number/SKU: WA-BM18
