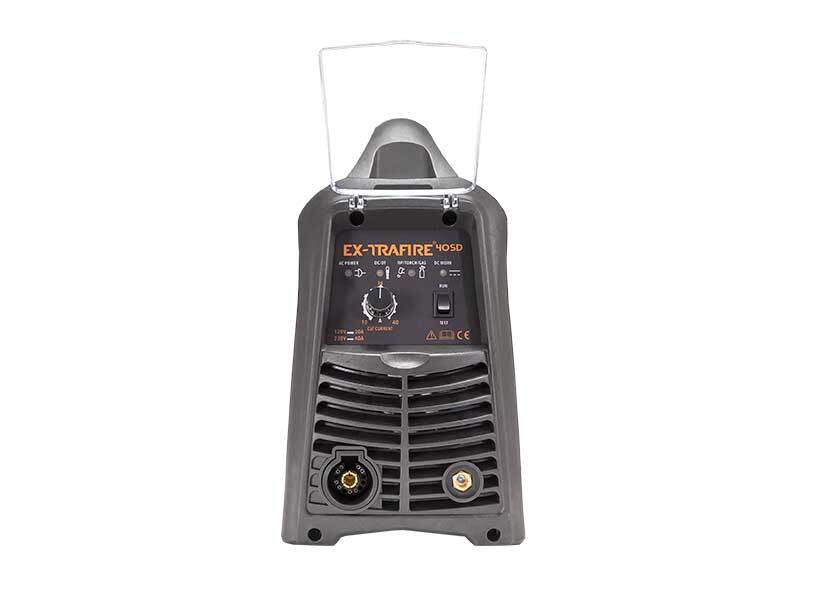

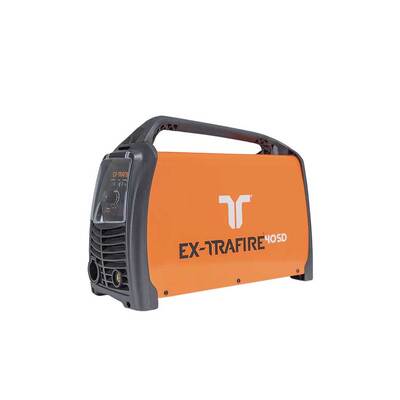

Plasma Cutter 40SD With 8 Metre Machine Torch Ex-Trafire EX40SD-M8M

Description

Simply to use / setup. Great power ratio. Mechanize or hand cutting.

SIMPLE OPERATION

  • Plug & cut
  • Engineered for hobbyist

HIGHEST APPLICATION FLEXIBILITY

  • Plate thicknesses up to 15 mm +
  • Lightweight, exceptionally portable

EX-TRA PERFORMANCE

  • Precise cuts
  • Easy operation

BEST COST-EFFECTIVENESS

  • Very low investment
  • Lower running costs

Specifications



 Cutting current   10-30 A (120 VAC) / 10-40 A (230 VAC)
 Modes  cutting / grid cutting
 Duty cycle  @ 40° C @ 230 VAC 40 % @ 40 A, 100 % @ 25 A
 Rated output voltage  140 VDC
 Severance cutting capacity  20 mm +*
 Piercing cutting capacity  8 mm*
 Recommended cutting capacity  12 mm*
 Plasma gas  compressed air / nitrogen
 Air flow [lpm/bar]  120/4.5
 CNC interface  yes
 Preadjusted voltage divider ratio  50:1
 Input voltage  100/240 VAC ± 15 %
 Frequency  50/60 Hz
 Dimension (L×H×W)  469×228×177 mm
 Weight  11.8 kg
 Maximum input pressure [bar/psi]  10/145
 Protection level  IP23S
 Insulation class  H/F


Part Number/SKU: T-EX40SD-M8M

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T-EX40SD-M8M
Brand ThermaCut Ex-Trafire
Shipping Weight 45.0000kg
Shipping Width 0.600m
Shipping Height 0.500m
Shipping Length 0.750m
Shipping Cubic 0.225000000m3
Unit Of Measure ea
