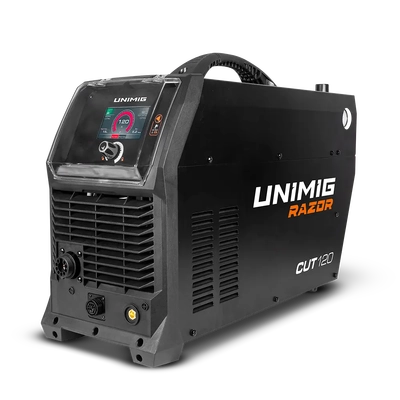

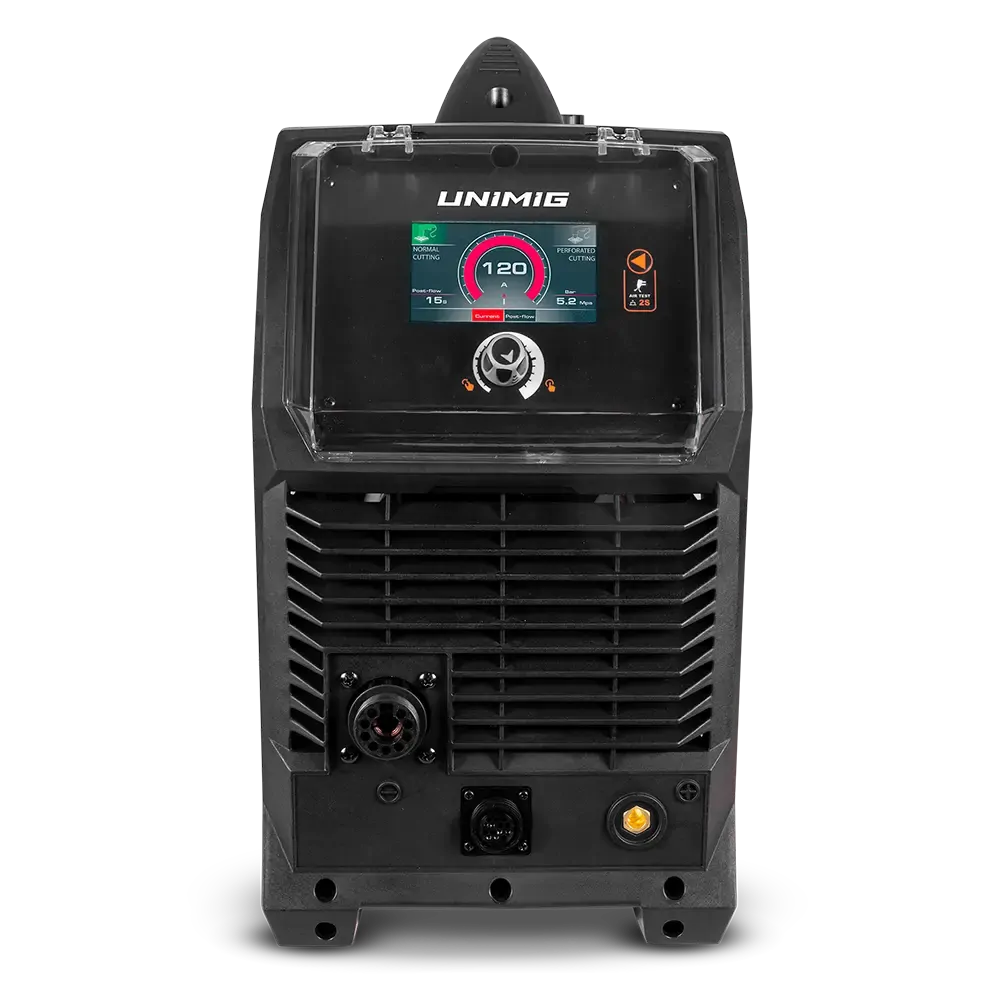

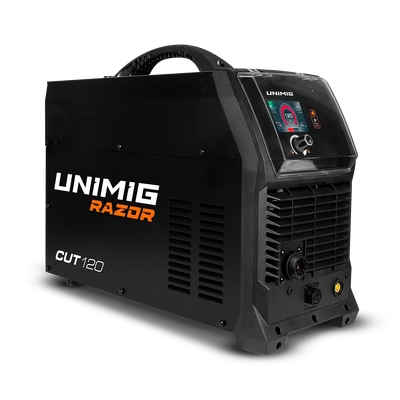

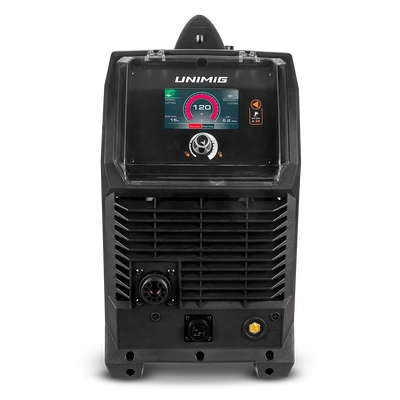

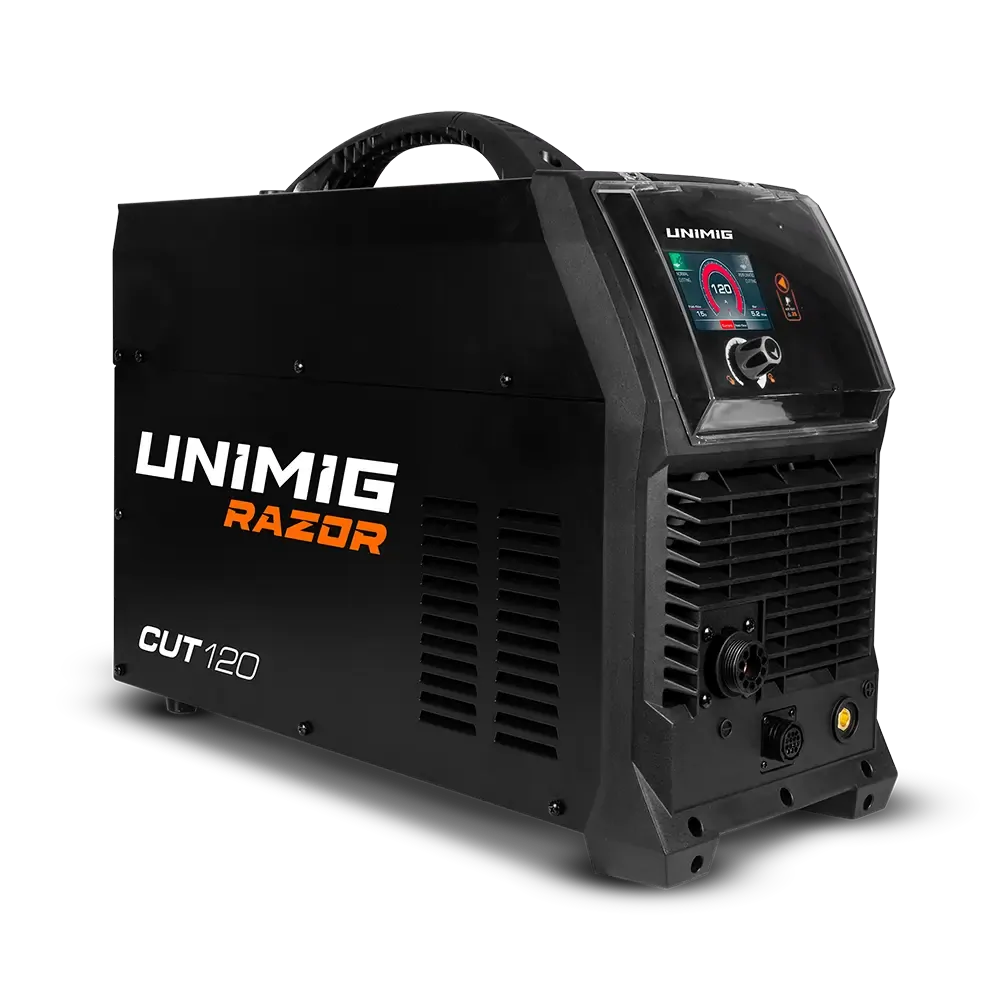

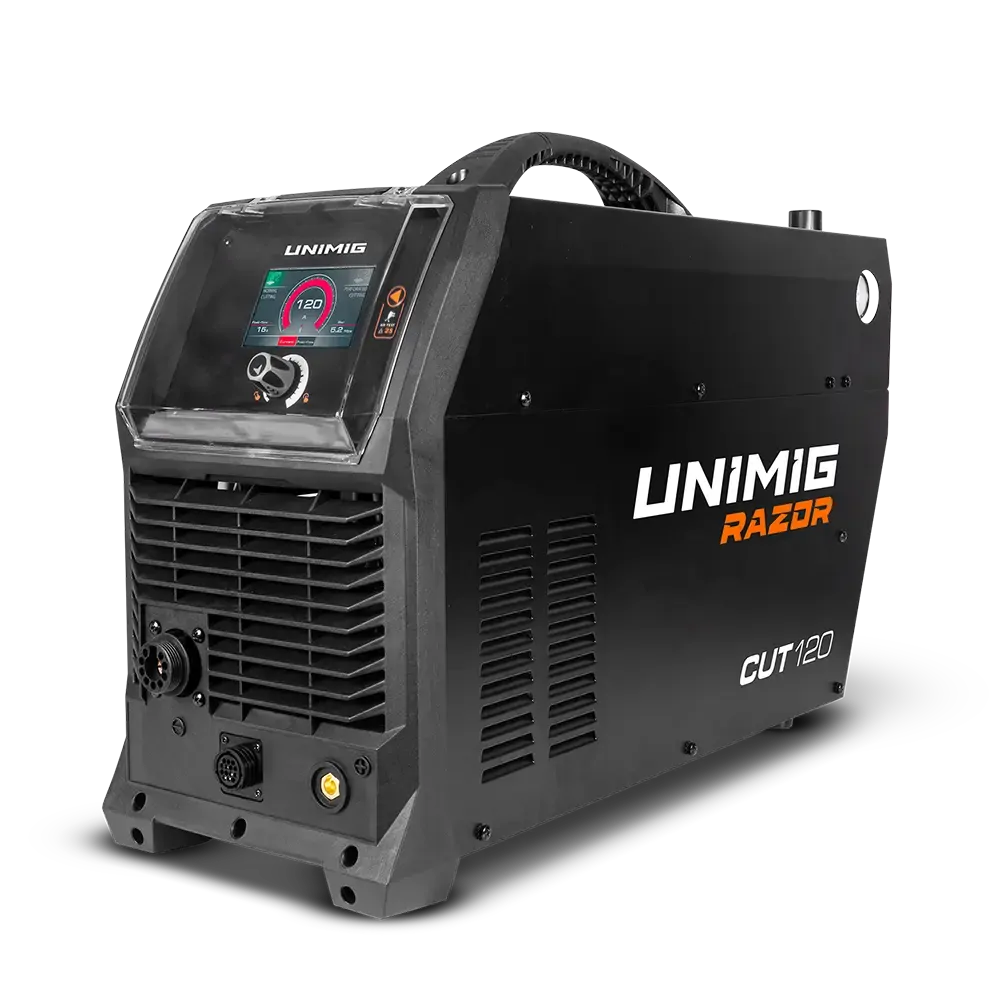

Plasma Cutter 120 Razor Cut Unimig U14002K

The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.

PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.





THREE PHASE - 415V POWER


45mm CLEAN CUT - MILD STEEL.


PILOT ARC START - START CUT WITHOUT DIRECT CONTACT.


2T/4T TORCH CONTROLS - MORE COMFORT WHEN CUTTING.

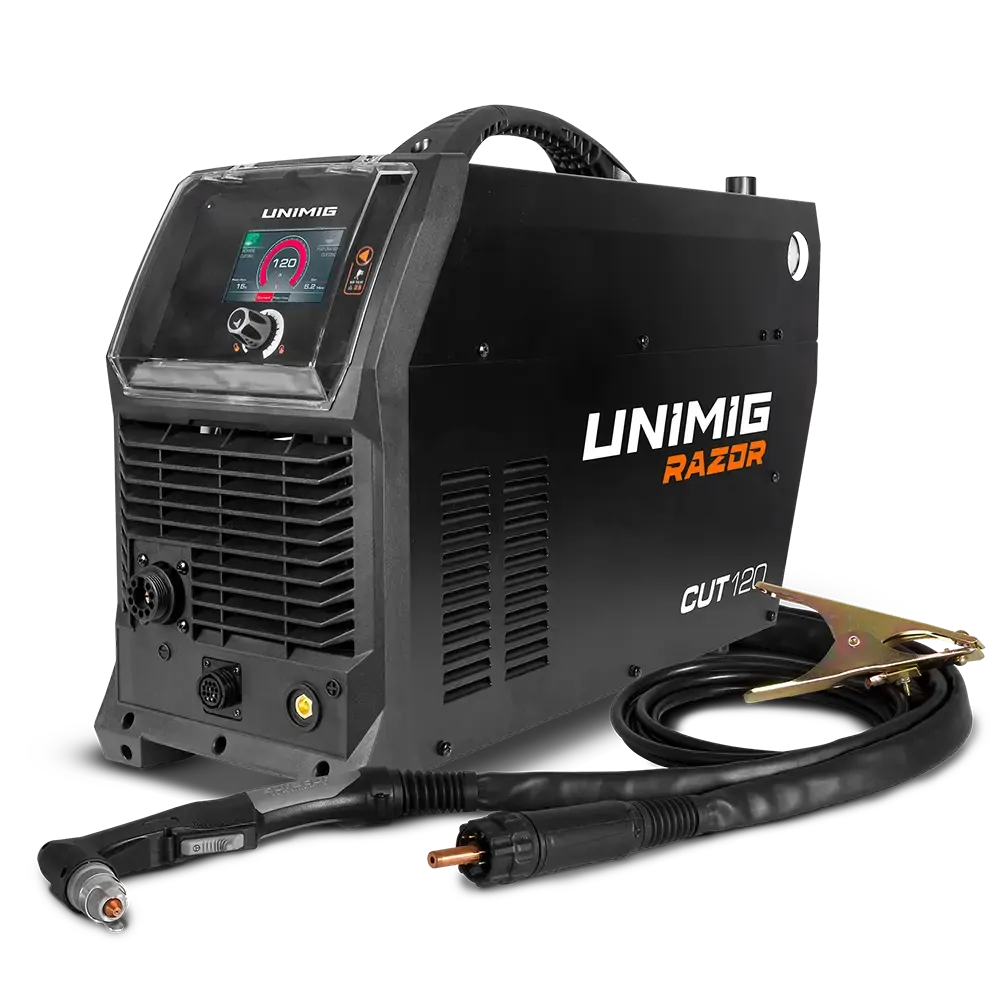

Package Contents

  • RAZOR™ CUT 120 Plasma Cutter
  • 6m SC120 Plasma Torch
  • 4m 300 AMP Earth Clamp
  • Air Regulator
  • Operating Manual

SPECIFICATIONS

PRIMARY INPUT VOLTAGE  415V Three Phase
SUPPLY PLUG
No plug supplied 		  (32 AMP Recommended)
 Ieff (A)  26.0
 NO LOAD VOLTAGE (V)  420
 PROTECTION CLASS  IP21
 INSULATION CLASS  F
 DINSE CONNECTOR  10/25
 STANDARD  AS/NZ60974-1
 WARRANTY (Years)  B



PLASMA SPECIFICATIONS

 PLASMA CUT CURRENT RANGE  20-120A
 PLASMA CUT DUTY CYCLE @ 40°C  60% @ 120A, 100% @ 100A
 MILD STEEL CUT THICKNESS  45mm
 MILD STEEL SEVERANCE THICKNESS  60mm
 ALUMINIUM CUT THICKNESS  36mm
 STAINLESS STEEL CUT THICKNESS  45mm
 AIR FLOW DRAW OFF (L/min)  189
 AIR FLOW PRESSURE (Bar)  5.17 (75 psi)
 PLASMA ARC START  Pilot Arc

*Please note warranty only applies to the power source only

https://www.nationalwelding.com.au/assets/files/RAZOR-CUT-120-Info-Sheet-JAN21.pdf

Plasma Torch and Consumables Info https://www.nationalwelding.com.au/assets/files/SC120-Torch-Breakdown%20(1).pdf




Part Number/SKU: U14002K

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU U14002K
Brand Unimig
Shipping Weight 30.0000kg
Shipping Width 0.600m
Shipping Height 0.500m
Shipping Length 0.600m
Shipping Cubic 0.180000000m3
Unit Of Measure ea
