Panasonic TM1100G3 Industrial Robot System Reach and Payload 1163mm Horizontal Reach

  The Panasonic TM robot series satisfy industry requirements for advanced industrial robotic systems in the most demanding of applications

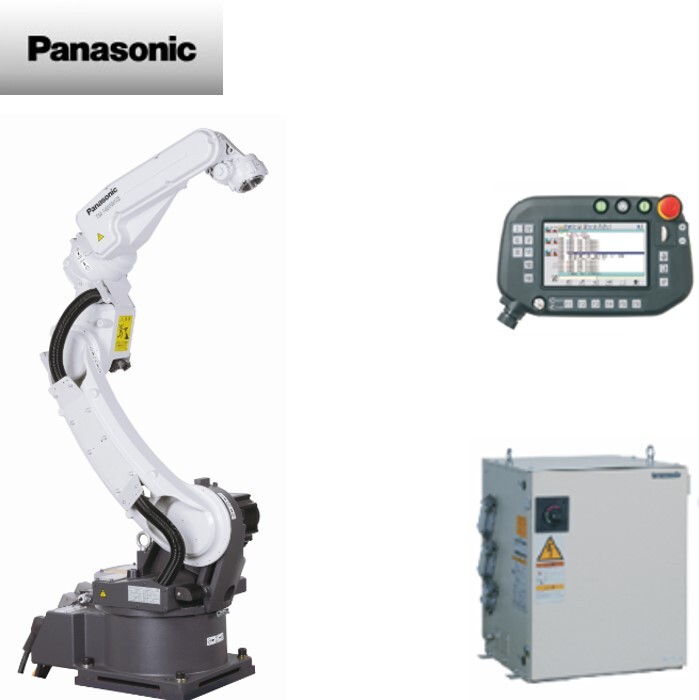

Panasonic Industrial Robot Systems comprise of:

• Robot Manipulator with six axes and various reach options & payload capacities from 6kg to 220kg
• Robot Controller incorporating the servo drives, control system PCBs, Safety system and Interface Controls
• Teach Pendant to program & operate the industrial robot system
• Cable sets between the robot controller, manipulator and teach pendant
• Options including external axis positioners & controllers, extended cable lengths, multi robot synchronisation & process control software are available

Panasonic TM1100G3 Industrial Robot System - Reach & Payload

The Panasonic TM1100G3 Industrial Robot System has 1163mm of horizontal reach and an extensive work envelope as shown in the elevation and plan view diagrams.

• With a 6kg payload capacity this robot system is suited to a wide range of applications including;
  • Materials Handling
  • Picking & Packing
  • Welding
  • Labelling
  • Cutting
  • Machine Tending
  • Assembly
•

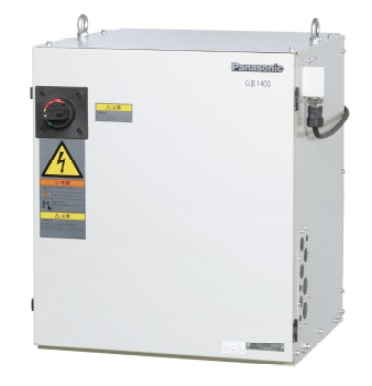

Panasonic G3 Industrial Robot Controller

• Controls maximum 27 axes with multi robot and external axis control.
• 3 robots synchronization capability
• C-like advanced programming language
• 64 bit CPU achieving 30 second quick boot time
• Standard 40000 points memory
• Standard user I/O 40 each. Option I/O 504 each
• Optimum kinematic calculation realizing faster acceleration and deceleration
• Communication via Ethernet
• Optional DeviceNet, Profibus and CC-Link interfaces

Panasonic G3 Robot Teach Pendant

• 7 inch TFT colour LCD

• Graphical User Interface-display

• Network protocols provides advanced production management and quality control for line productions

• Eight function keys, enabling same action with less key strokes during teaching

• Light weight design under 1 kg

• 2 x USB 2.0 ports

• SD memory card slot (SD, SDHC)

• Key Switch for Manual to Automatic Mode switching

• Includes Start / Stop / Servo On and Emergency Stop switches for production control.

Panasonic TM1100G3 Industrial Robot System – Dimensions

Part Number/SKU: TM1100G3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
