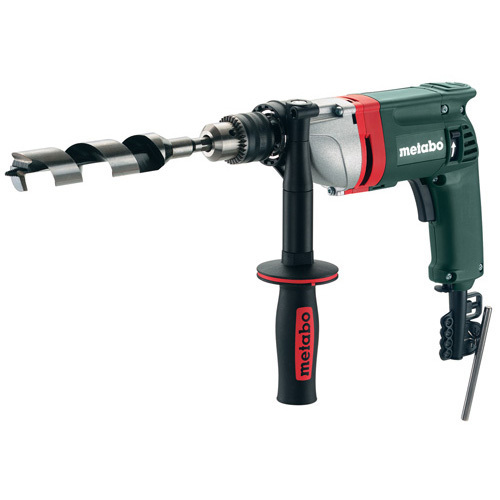

Metabo BE 75-16 Drill 600580190

Description:

Robust die cast aluminium gear housing for optimum heat dissipation and durability
Rotating carbon brush bridge for maximum performance even in anti-clockwise rotation, e.g. when removing jammed screws
Vario (V)-electronics for working with customised speeds for the materials used
Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive if the drill jams for safe working
Spindle with hexagonal recess for screwdriver bits for working without chuck
Suitable for powerful drilling of larger diameters and for stirring thick liquid-like materials

Kit Include:

Metabo BE 75-16 Drill
Geared Chuck
Chuckkey
Long Additional Handle

Accessories:

Drills And Impact Drills

Drill Chuck

Geared Chuck, Impact-Proof

Chuck Accessories

Spare Chuck Key

Cylindrical Drills

Drill Bits For Metal
Universal Drill Bits, Glass Drill Bits
Wood Drills

Drill Assortments

HSS-R Metal Drill Bit, DIN 338, Roll-Milled
HSS-G Metal Drill Bit, DIN 338, Ground
HSS-Co Metal Drill Bit, DIN 338
HSS-TIN Metal Drill Bit, DIN 338
Universal Drill Bit, Carbide-Tipped
CV Drill Bit For Wood, With Centring Point
Wood Drill Bit CV, DIN 3126

Hole Saws

Multipurpose Hole Saw "Pionier", Carbide Tipped, With M 16 Female Thread
For Multipurpose Hole Saw "Pionier"
Bi-Metal Hole Saws
For Bi-Metal Hole Saws
Bi-Metal Hole Saws, Assortments
Hole Saw Set For Wood

Angle Attachments

Angle Drilling And Screw-Driving Attachment
Clamping Stand
Clamp

Drill Stand

Drill Stand

Machine Vices

Accessories For Stirring Paint Etc

Universal Stirrer
Special Stirrer For Thick Liquid-Like Materials

Steel-Wire Brushes

Steel-Wire Wheel Brush
Steel-Wire Cup Brushes
Steel-Wire Busby-End Brush

Other Accessories For Drills And Impact Drills

Side Handles

Stirrers

Agitator Paddles With M14 Male Thread

Type RS 2, Mixing Effect From Top To Bottom
Type RS 3, Mixing Effect From Top To Bottom
Type RS 3, Mixing Effect From Bottom To Top
Type RS 4, Mixing Effect From Bottom To Top
Type RS 8

Connectors With M14 FThr

Metabo BE 75-16 Drill

Part Number/SKU: 600580190

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Metabo BE 75-16 Drill

Rated Input Power 750 W
Output Power 470 W
Drill Ø Steel 16 mm / 5/8 "
Drill-Ø Soft Wood 50 mm / 2 "
No-Load Speed 0 - 660 /min
Revolutions At Rated Load 350 /min
Gears 1
Maximum Torque 75 Nm / 664 in-lbs
Collar Diameter 43 mm / 1 11/16 "
Chuck Capacity 1.5 - 13 mm // 1/16 - 1/2 "
Drill Spindle With Hexagonal Recess 6.35 mm / 1/4 "
Drill Spindle Thread 1/2 " - 20 UNF
Weight (Without Power Cable) 2.6 kg / 5.7 lbs
Cable Length 2.6 m / 9 ft

Vibration

Drilling In Metal 2.5 m/s²
Uncertainty Of Measurement K 1.5 m/s²

Noise Emission

Sound Pressure Level 81 dB(A)
Sound Power Level 92 dB(A)
Uncertainty Of Measurement K 3 dB(A)

Metabo BE 75-16 Drill

Rated Input Power 750 W
Drill Ø Steel 16 mm / 5/8 "
Drill-Ø Soft Wood 50 mm / 2 "
No-Load Speed 0 - 660 /min
Maximum Torque 75 Nm / 664 in-lbs

SKU	600580190
Barcode #	4007430203953
Brand	Metabo
Shipping Weight	4.0000kg
Shipping Width	0.450m
Shipping Height	0.200m
Shipping Length	0.350m
Shipping Cubic	0.031500000m3
Unit Of Measure	ea
