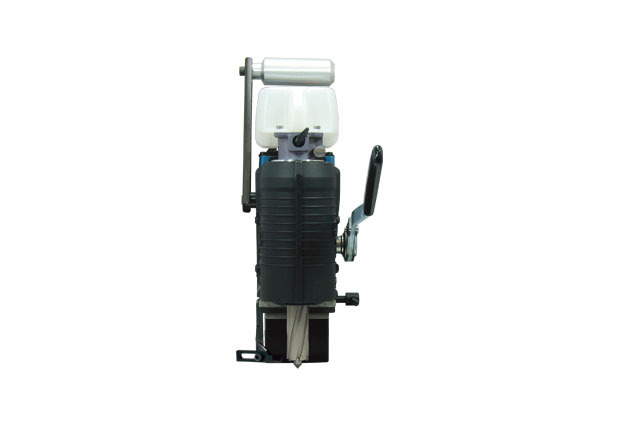

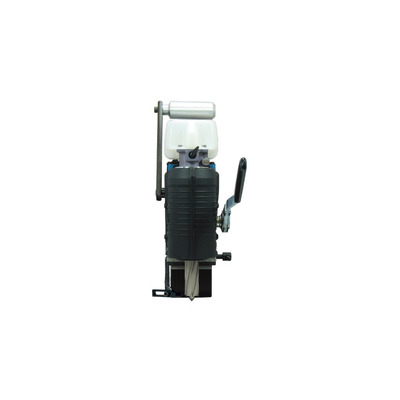

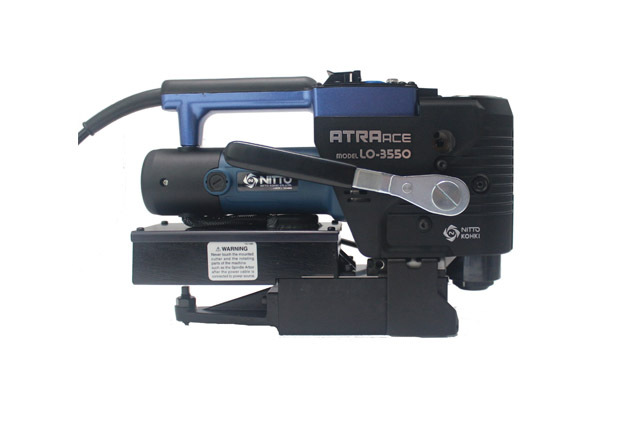

Magnetic Drill (Without Handle and Coolant Tank) Atra Ace LO 3550 Nitto LO-3550

KEY FEATURES

•  Super lightweight 8.7kg
•  Compact size (230 x 316mm)
•  Only needs 65mm web or flange width for drilling
•  Designed to improve drilling in confined spaces and elevated locations
•  Smart LED sensor technology
•  Reversible feed handles
•  Adjustable drilling position (10mm right / left & front / back)
•  35mm capacity, through 50mm plate
•  6mm minimum plate thickness

APPLICATIONS

• Perfect for H-beam work
•  Great for elevated work due to lightweight design
•  Compact size to get into narrow spaces where other mag base drills can't reach

SPECIFICATIONS

• Model No.    LO-3550
• Power Source     220~240V AC 50/60HZ
• No Load Speed    950rpm
• Hole Diameter    12-35mm
• Plate Thickness    6-50mm
• Magnet Holding Power    561 kg/f
• Weight    8.7kg

ACCESSORIES

• Standard Accessories
•  Carry Case
•  Coolant Tank
•  Pilot pin 08035
• Spanner 17mm
•  Spanner 7 x 8mm
•  Spanner 8 x 10mm
•  Safety strap
•  Hex. socket bolt 5 x 12
•  Hex. socket head set screw 8 x 28
•  4mm Hex. socket screw key
•  5mm Hex. socket screw key
•  Spanner 8 x 10mm
•  Sub handle and Feed handle

Optional Accessories


•  OZBROACH- (High-Speed Steel One-Touch Type 25-50mm depth of cut from 12-22mm dia)
•  OZBROACH- Countersink (Part No. OT10-30CS)
• TCT Carbide Tipped Cutters (25mm, 35mm & 50mm depth of cut)
•  Jet Oiler(Part No.TQ10581 can be used with tube Part No.TB01098)
•  Chip Breaker (Part No. NPTB07691)
•  Lubrication Adaptor Ass'y (Part No. TB07306)

Part Number/SKU: LO-3550

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
