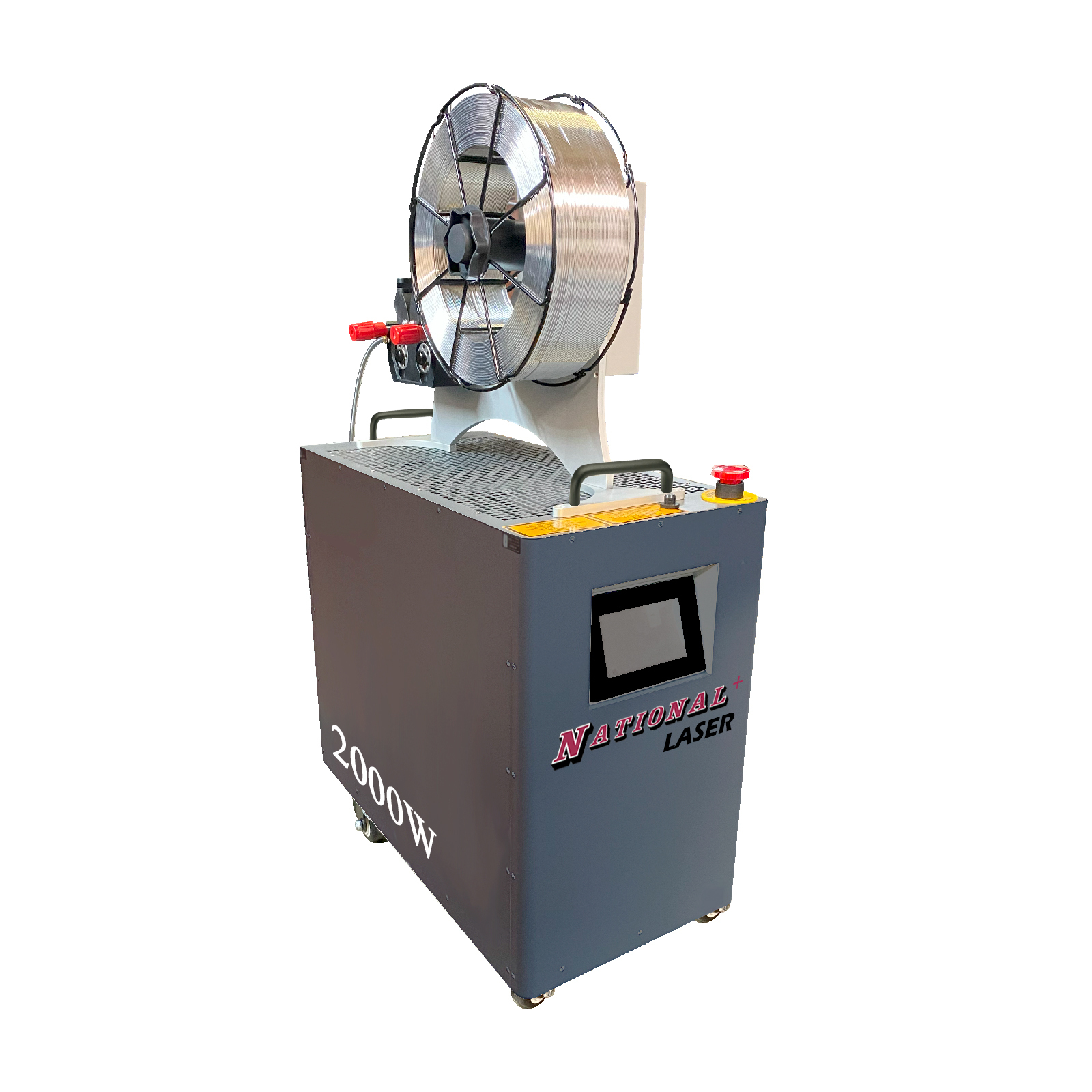

National 2000W Laser Handheld Welder (NL2000WA)

Product Characteristics:

High wall-plug efficiency
High power with Excellent beam quality
High reliability, long service life, and maintenance free

Parameters

Model	NL2000W
Limit Power (W)(At the current of 19A)	1800W
Maximum Power (W)(the current is 225A)	2000W
Operating Power	Continious welding & Spot Welding
Polarization Direction	Random
Output Power adjustment Range	10-100%
Central Wavelength	1080 +-3nm
Power attenuation after 1 Hour of continious operation	<2%
Maximum Modulation Frequency	5 Khz
Indicating Red Light Power	>=0.2mW
Output fibre core Diameter	20µm
Ouput Armored Cable Length	Default 5M
Operating Volatge	AC 220V Single Phase, 50/60Hz
Maximum Power consumption	<6000W
Control Method	Touch Screen
Dimension (W X H X D)	323 X 684.2X 629 mm
Weight	58 Kg
Operating Temperature	-30~40°C
Operating Humidity	<90%
Cooling	Air
Storage Temperature	-10-60°C
Inert gas pressure	≤0.7MPa

Part Number/SKU: NL2000
