FLEXTEC® 500x MULTI-PROCESS WELDER W/ VRD® K3607-2



Powerful Performance From the Ground Up

Out in the shipyards, construction sites and fabrication shops, it pays to keep it simple. The Flextec 500X multi-process welder is easy to set up and operate, yet
rugged enough to stand up to heavy-duty indoor and outdoor applications.
Basic pulse MIG capability is standard on the Flextec 500X , including weld modes for cabon steel, stainless steel, aluminum and metalcore electrodes.

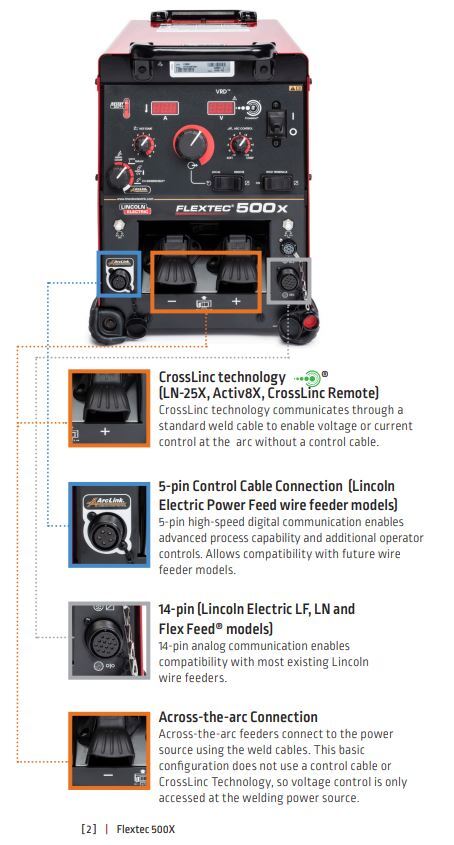

The Flextec 500X welder is also equipped with CrossLinc® technology giving you the flexibility to control the machine from hundreds of feet away without a
control cable.


Input Power
380-415/460/575/3/50-60

Processes
Stick, Lift TIG DC, MIG, FCAW, Pulse, Gouge

Specifications
Product number K3607-2
Input (V) 380-415/460/575/3/50-60
Fuse size (A) 32 D Curve (415V)
Output range (A) 5-500
Rated output 500A/40V@60% • 450A/38V@100%
Control voltage Continuous
Processes Stick, Lift TIG DC, MIG, FCAW, Pulse, Gouge
Protection / Insulation class IP23/H
Weight (kg) 54
Dimensions HxWxD (mm) 477 x 356 x 673
Warranty 3 years
Instruction manual IM10194
Generator compatible 35 kVA

Price :  (Power Supply Machine Only)
(for pulse requires PF84 requires input lead and plug)

Options for Wire Feeders (Price does not include wirefeeder)

LF-33 – Air/Water cooled. Includes: 4-roll, Drive roll kit 1.0-1.2mm, Undercarriage, Water connection kit, Euro Connection K14030-1W

Power Feed® 84 (4 roll, Tweco connection) K3328-13

LN-25x Crosslinc® and TVT™ comes with Bonus K126pro gun. Includes: 2-roll, Tweco gun connection, Twistmate plug fitted K4267-4I

LN-25x Crosslinc® and TVT™ comes with Bonus Magnum gun. Includes: 2-roll, Tweco gun connection, Twistmate plug fitted K4267-4M


Other product information only (price does NOT include below items)

Part Number/SKU: K3607-2

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Advantage:

Flexible Multi-Process Capability – Including stick, Touch Start TIG® (DC), MIG, flux-cored welding and carbon arc gouging with up to a 3/8 in. (9.5 mm) carbon.

The Future is NowSM – You no longer have to pay a price premium to gain the advantages of inverter technology over conventional welder  -Faster Arc Response means smoother arc action and more consistent bead appearance.- Low Power Consumption results in daily operational cost savings -Enhanced Portability – Typically 50% less weight, size and footprint.

Simple Operation – The user interface is designed with the operator in mind. Set up is easy for even the most novice welder

Bright Digital Amp and Volt Meters – Easy to monitor, even in sunlight, and presettable for precise procedure control.

Built in VRD- Designed to fail-to-safe factory fitted. VRD offers additional protection for the operator. The VRD operates in the CC mode.

Selectable Hot Start – Turn it off for thin material or flip it on to get the extra starting amperage you need for thick, rusty or dirty material.

Variable Arc Control – In stick mode, vary the arc force to obtain the "soft" or "crisp" arc you want as conditions require. In CV modes, vary the pinch or inductance to control spatter, fluidity and bead appearance.

Full-Featured Remote Control Capability – Use a foot pedal or hand control to remotely vary output up to 100 ft. (30.5 m) away.

Desert Duty™ Rated – Welding outputs are rated for extreme temperature operation up to 55°C.

SKU K3607-2
Brand Lincoln
Shipping Weight 65.0000kg
Shipping Width 0.850m
Shipping Height 0.600m
Shipping Length 1.000m
Shipping Cubic 0.510000000m3
Unit Of Measure ea
