MinarcTIG 200A EVO TIG/MMA Welder Pack 200A with 8m TIG Torch Kemppi P0673TX (61009200AU + TX225G8)

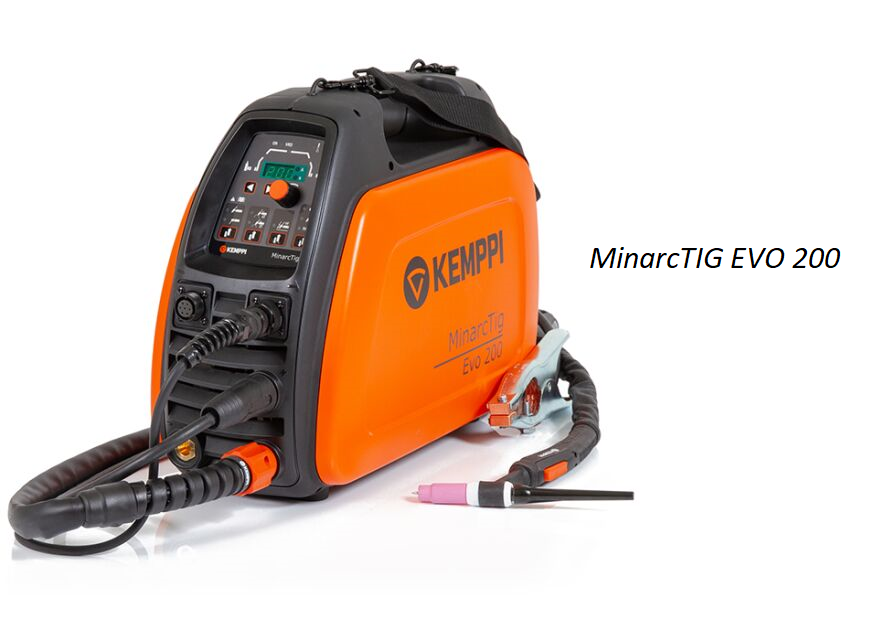

Kemppi P0673TX 200A MinarcTIG EVO TIG/MMA Welder Pack

MinarcTig Evo is just what you’d expect from a Kemppi TIG welding machine. Accurate and refined HF ignition and the necessary control, power and work capacity to reliably complete a variety of professional welding tasks. MinarcTig Evo is the ideal DC TIG welding solution for light industrial manufacturing, installation, repair and maintenance applications. The lightweight and compact size is a real bonus for welding professionals on the move.

Models include either the MinarcTig Evo 200 or the MinarcTig Evo 200MLP. The powerful PFC power source design combines useful performance advantages, including excellent energy efficiency and the ability to reliably perform on extra long power supply cables of more than 100 meters long.

Features:

• 200 A DC @ 35% duty cycle, 1-phase, 230 V
• Smooth welding quality
• Refined arc ignition from 5 A
• Pre and post gas timer
• Slope in/out timer
• Torch switch latching
• MLP and Pulse welding option
• Remote current controls options
• PFC technology for ultimate energy efficiency
• Mains networks or generator use

Specifications:

• Connection voltage 1~ 50/60 Hz: 240 V ±15 %
• Fuse (delayed): 16 A
• Minimum generator power: 5.6kVA
• Output (TIG) 35% ED: 200 A/18.0 V
• Output (TIG) 60% ED: 160 A/16.4 V
• Output (TIG) 100% ED: 140 A/15.6 V
• Output (MMA) 35% ED: 170 A /26.8 V (35 %)
• Output (MMA) 60% ED: 130 A/25.2 V
• Output (MMA) 100% ED: 110 A/24.4 V
• Open circuit voltage: 95 V
• Stick electrode sizes: 1.5...4.0 mm
• Welding range (MMA): 10 A /20.4 V...170 A/26.8 V
• Welding range (TIG): 5 A/10.2 V...200 A/18.0 V
• Operating temperature range: -20…+40 °C
• Degree of protection: IP23S
• Standards: IEC 60974-1, IEC 60974-3, IEC 60974-10, IEC 61000-3-12
• External dimensions LxWxH: 449 × 210 × 358 mm
• Weight (no accessories): 11 kg

Warranty:

• Kemppi 3+ warranty for parts and labour

Kemppi TX225G8 8m Flexlite TX TIG Welding Torch

Flexlite TX welding torches for TIG welding feature excellent technical performance, extended consumables life, and everyday welding comfort. Durable silicone rubber material gives a firm grip while the torch handle's innovative design reduces wrist loading, allowing welders to concentrate on challenging tasks to achieve the perfect weld.

Features:

• Choose from fixed, flexible, and S-shaped rotating neck designs
• Flexible cable set with leather sheathing protection maximizes durability
• Innovative torch design increases user comfort by reducing wrist loading
• Silicone rubber material gives a firm grip on the handle
• Kemppi consumables guarantee high quality and cost-effectiveness for your welding
• Torch models available with or without a trigger switch
• Optional switch extension increases trigger control accuracy
• On-torch remote control options with roller and rocker type switches

Specifications:

• Type of Cooling: Gas
• Type of Connection (Current-gas): R1/4
• Type of Connection (Control): 7-Pin
• Neck Type: 70° angle
• Length: 8m
