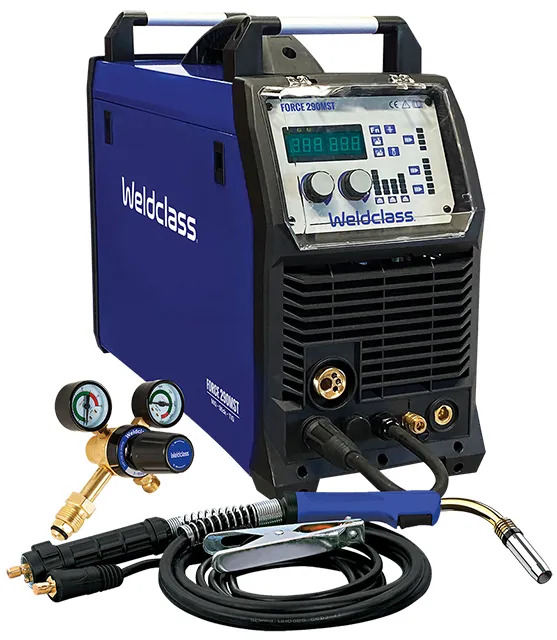

MIG / Stick / TIG Welder - Force Weldclass WC-290MST

DESCRIPTION:

The Force 290MST* offers unbeatable grunt from single-phase power, ideal for use where higher output is desired but a 3-phase power supply is not available. With a maximum output of 290A @ 55% there's plenty of power to tackle production jobs with wires up to 1.2mm. Available as a stand-alone compact/portable machine, or can be optioned with the WF114 separate wire feeder unit either with initial purchase or as an add-on later if/when required. Features include: Easy-to-use controls (synergic or manual), a 4-roll geared drive system, Job save, Spool Gun ready, and more

FUNCTIONS:

• MIG (Gas / Gasless)
• Stick / MMA
• TIG (DC Lift-Arc)

FEATURES:

• Industry-first 7-year warranty*
• Dual-Purpose Power Source Technology allows the 290MST to be used as a stand-alone compact/portable unit, or fitted with a separate wire feeder unit
• Max MIG output 290A @ 55% duty cycle
• Dual Input Modes to allow use with either 240V 15A plug (fitted) or 240V 32A plug (optional)**
• Manual or Synergic MIG controls (enter material type & thickness and the machine will set parameters automatically)
• Job Save - store custom settings for up to 20 jobs
• Geared 4-Roll Wire Drive System - for super reliable wire feeding
• Takes 5kg (D200mm) or 15kg (D300mm)spools
• Spool Gun Ready
• Generator Compatible - min 15kva, ideal 20+kva
• MIG functions & adjustments include: Inductance, Soft Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
• Stick/MMA functions & adjustments include: Hot-Start %, Arc-Force %
• TIG functions & adjustments include: Trigger & Remote Amperage Control on the torch, Post-Gas Time, Slope-Up Time

 APPLICATION & CAPABILITY INFO:

• MIG welding <290A with solid mild steel (0.8-1.2mm), gasless (0.8-1.2mm), flux-cored with gas (1.2mm), stainless-steel (0.8-1.2mm), aluminum (0.9-1.2mm), & bronze/brazing (0.8-1.2mm) wires
• Stick/MMA welding <270A with most types of common electrodes (2.0-4.0mm), including steel, stainless steel, hard facing & more
• TIG welding <290A (DC lift-arc) of steel, stainless, copper & chrome molly up to 5-6mm max thickness (NOT suitable for TIG welding of aluminum)

 INCLUDES:

• MIG Torch 4m BZL 36
• Earth Lead 4m
• Gas Regulator
• Driver Rollers for 0.9/1.2mm steel/solid wires & 0.9/1.2mm flux-cored/gasless wires
• Power Input Lead (4mm2) with heavy-duty 240V 15A plug fitted**
• Separate Wire Feeder Packages include SWF114 wire feeder unit with 8m interconnecting cables

 OPTIONAL ACCESSORIES:

• Spool Gun BZL 25 8m (part no WC-06203)
• TIG Torch #17 4m with Remote Control (part no WC-06234)
• Stick welding lead (# WC-06233)
• MIG Torch Spares (BZL 36)

Part Number/SKU: WC-290MST

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
