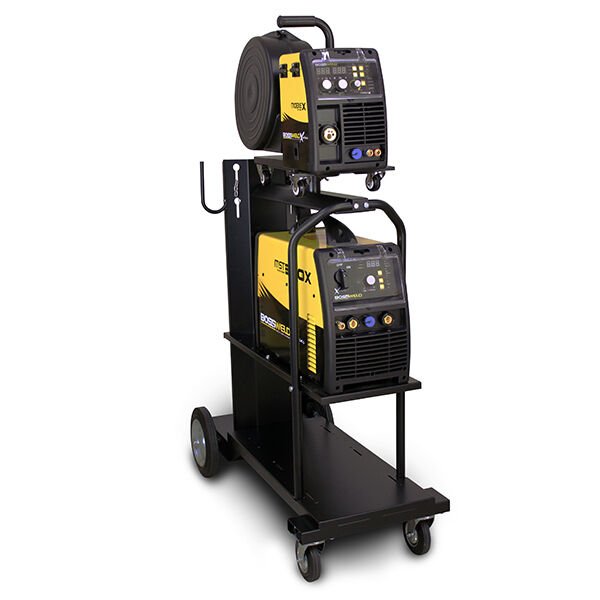

MIG/STICK/TIG Welder 350X MST X-Series Bossweld 699350

This Mobile 350X is a workshop power house; 350 Amps at 60% duty cycle delivers plenty of power to spare. Coupled with the Mobile X wire feeder ensuring smooth and accurate MIG wire delivery. Being a multi-process machine, it provides the additional choice of Stick Electrode and TIG processes.

PACKAGE INCLUDES

  •  MST 350X Inverter Welder
  • Mobile X Wire Feeder
  •  Machine Trolley
  • 10M Interconnection Cables
  • 4Mt Ergon BZ36 MIG Torch
  •  5Mt Earth clamp
  •  2Mt Gas Hose
  •  Bossweld Twin Gauge Regulator
  • Drive Rollers
    • 0.9/1.2mm V Groove 30 x 10 x 12mm (fitted)
    • 1.2/1.6mm V Groove 30 x 10 x 12mm
  • ​Operator Manual
  • Note: Primary Plug not fitted

Part Number/SKU: 699350

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

  • 350 Amp output
  • MIG /Stick /TIG welder
  • Suitable for heavy industrial
  • Digital LED display
  • 4 Roll wire drive system
  • Synergic control
  • Gas /gasless operation
  • 2T / 4T trigger latching
  • Separate wire feeder
  • 10mt interconnecting cable
  • Suits D200/D300 spools
 Primary Input Power  3 Phase 415V 50-60 Hx +/- 15%
 Duty Cycle @ 40°C  60% @ 350A
 Open  Circuit Voltage

 MIG 674V

 TIG/MMA 14V
 Output Current Range

 MIG 40-350 Amps

 MMA / TIG 100-350 Amps
 I Max

 MIG 23A

 TIG 20A

 MMA 20A
 I eff

 MIG 18A

 TIG 15A

 MMA 20A
 Wire Diameter   0.6mm to 2.0mm
 Electrode Diameter   1.6mm to 5.0mm (Idael Size 3.2mm)
 Material   Aluminium (Mig Only) , Mild Steel, Stainless Steel
 Thermal Overload   Yes
 Minimum kVA   18.0
 Dimensions   113 x 151x 52 cm / Kg
SKU 699350
Brand Bossweld
Shipping Weight 88.0000kg
Shipping Width 1.200m
Shipping Height 0.800m
Shipping Length 1.600m
Shipping Cubic 1.536000000m3
Unit Of Measure ea
