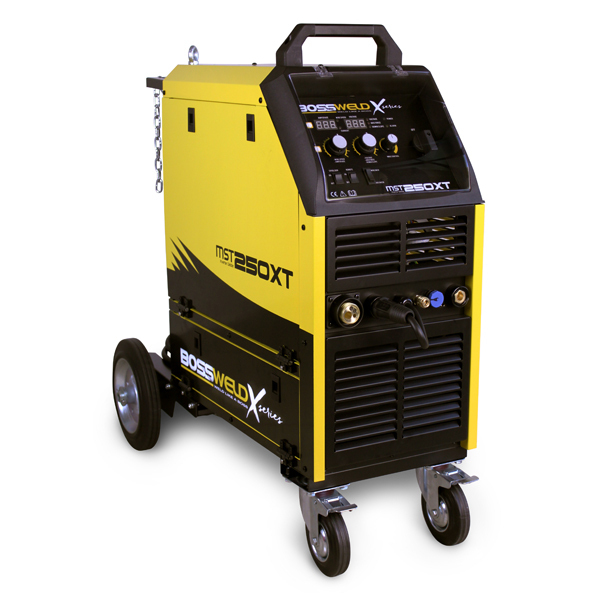

MIG/STICK/TIG Welder 250XT X-Series Bossweld 699625

The Bossweld MST 250XT is a multi-process, inverter-based welder that provides the opportunity to MIG, Stick and TIG weld from the same machine. Heavy duty and designed for industrial use; the 250 Amps at 60% delivers ample power, and the front swivel wheels make it easy to manoeuvre.

Single phase 240V
250 Amp output
MIG /Stick /TIG welder
Suitable for industrial
Digital LED display
4 Roll wire drive system
Stepless adjustment control
Gas /gasless operation
2T / 4T trigger latching
Excellent arc stability
Gun/lead hanger
Suits D200/D300 spools
Spool gun ready

SPECIFICATIONS

Primary Input Power	Single Phase 240V 50-60 Hz +/- 15%
Duty Cycle @40°C	MMA / TIG 60% @ 250 A MMA 60% @ 205A
I Max	MIG 50.6A TIG 39.6A MMA 57.1A
I eff	MIG 39.2A TIG 30.7A MMA 36.1A
Wire Diameter	0.8mm to 1.6mm
Electrode Diameter	2.5mm to 5.0mm
Thermal Overload	Yes
Dimensions / Weight	87 x 90 x 48 cm / 51.2 Kg

Part Number/SKU: 699625

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	699625
Brand	Bossweld
Shipping Weight	54.0000kg
Shipping Width	0.950m
Shipping Height	0.550m
Shipping Length	0.950m
Shipping Cubic	0.496375000m3
Unit Of Measure	ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

MIG/STICK/TIG Welder 250XT X-Series Bossweld 699625

SPECIFICATIONS

Primary Input Power	Single Phase 240V 50-60 Hz +/- 15%
Duty Cycle @40°C	MMA / TIG 60% @ 250 A MMA 60% @ 205A
I Max	MIG 50.6A TIG 39.6A MMA 57.1A
I eff	MIG 39.2A TIG 30.7A MMA 36.1A
Wire Diameter	0.8mm to 1.6mm
Electrode Diameter	2.5mm to 5.0mm
Thermal Overload	Yes
Dimensions / Weight	87 x 90 x 48 cm / 51.2 Kg
