Metal Tube Laser Cutter 3000W Pipe Diameter Φ10~Φ220mm SF6020T

https://www.nationalwelding.com.au/assets/files/6020T%20cutting%20round%20pipe%20(3).mp4

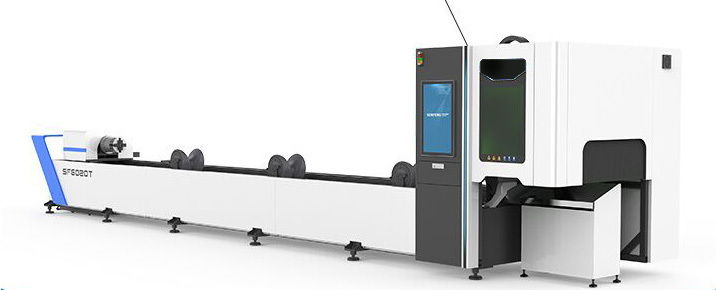

SF6020T metal tube laser cutter is also called tube laser cutting machine, which is used for cutting round tube, square tube, and another metal tube. Pipe processing range 6000mm* φ10~220mm (square tube: 10*10-150*150mm)

Cutting Capability and Application

• Cutting Materials
  • Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.
• Application Industry
  • Metal processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, shipbuilding, etc
• Main Features
  •  Wide Processing Range, Large Loading Ability
  • Round Tube Diameter:Φ10mm-220mm
  •  Square Tube Length: 10*10mm-150*150mm
  •  Processing round pipes, square pipes, rectangular pipes.
  •  Single tube load-bearing up to 150kg.
• Powerful Dynamic Performance
  • Maximum speed can reach 100m/min, the chuck speed can reach 100r/min, which has achieved fast dynamic performance. This new tube laser cutting machine, with ultra-high performance and ultra-high precision, can meet your strict requirements for products in the field of tube cutting.
• Automatic Loading and Unloading System(Optional)
  • The whole bundle of pipes, intelligent distribution, loading, and unloading;
  • Loading capacity is 3000KG;
  •  Processed products and waste materials are automatically sorted, reducing labor cost
• Pneumatic Self-Centering Chuck
  •  High clamping accuracy and fast speed.
  • Self-centering gear transmission, high efficiency.
  •  Intelligent pneumatic jaws, large clamping force, stable feeding, more precise cutting

https://www.nationalwelding.com.au/assets/files/6020T%20cutting%20round%20pipe%20(3).mp4

Part Number/SKU: SF6020T
