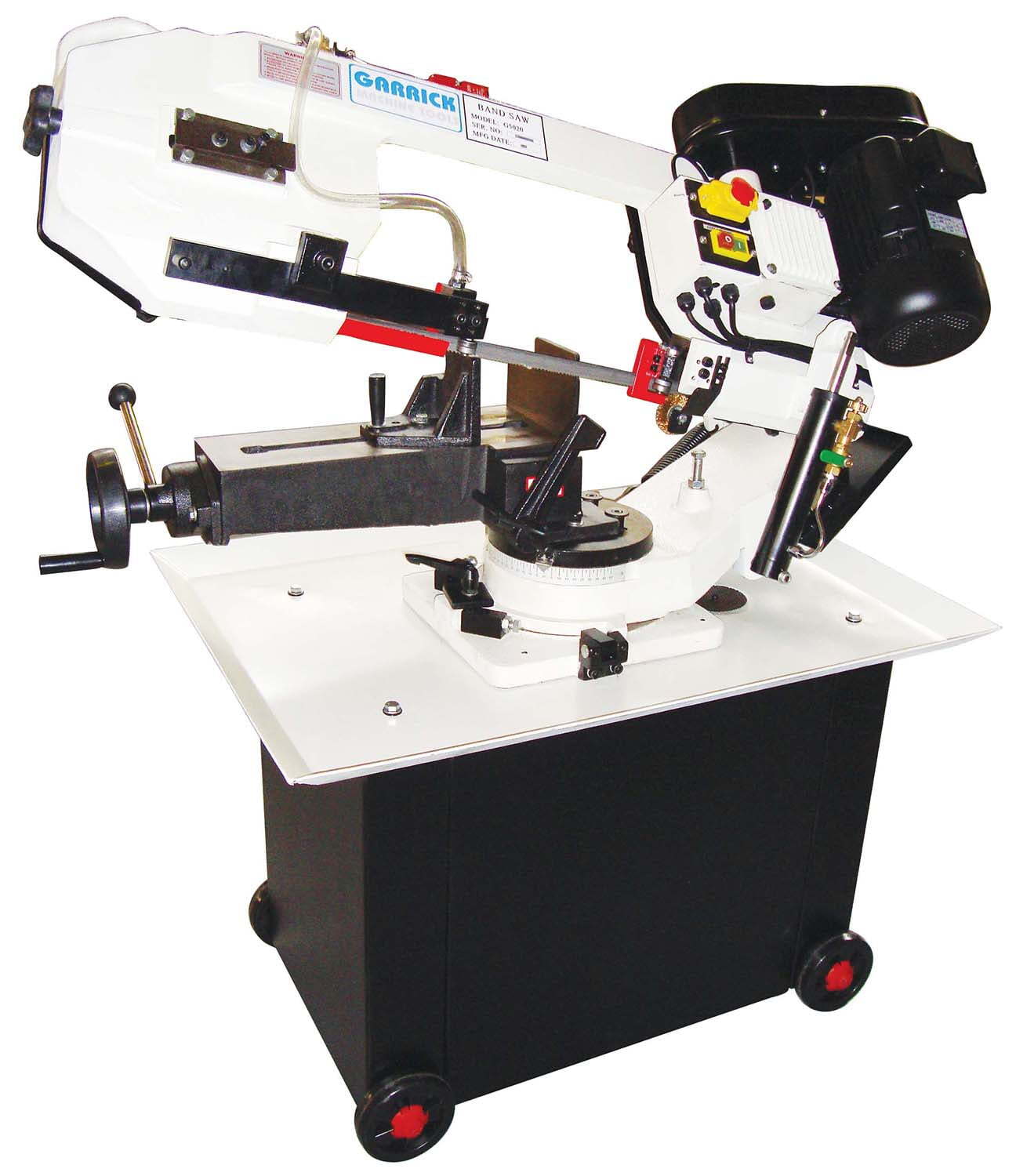

Garrick 8" Swivel Head Bandsaw

Features:

  • Swivel Head can mitre cut -450 - +450
  • Fully adjustable hydraulic cylinder for automatic feed with auto shut-off at cut-end
  • 3 speed belt drive allows machine to handle a wide range of materials.
  • Quick-lock vise
  • Includes blade cleaning wire wheel
  • Ball bearing blade guides.
  • Integrated coolant system
  • Complete with machine stand and blade.
  • Wheels allow easy movement around the workshop.
  • All cast iron frame and bed.

MODEL

BS8SW

Motor

1.1KW

Blade Size (mm)

2360 x 20 x 0.9

Blade Speed (m/min)

24, 41, 61, 82

Vice Tilt

-45° - +45°

Cutting Capacity at 90°



205mm
205 X 215mm
260 x 110mm

Cutting Capacity at 45°


143mm
143 X 115mm

Carton Dimensions

1230 x 650 x 820 (body)
575 x 545 x 260 (stand)

Weight (kg) - Nett / Gross

190 / 227

Part Number/SKU: BS8SW

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU BS8SW
Brand Garrick Herbert
Shipping Weight 250.0000kg
Shipping Width 1.200m
Shipping Height 1.200m
Shipping Length 0.900m
Shipping Cubic 1.296000000m3
Unit Of Measure ea
