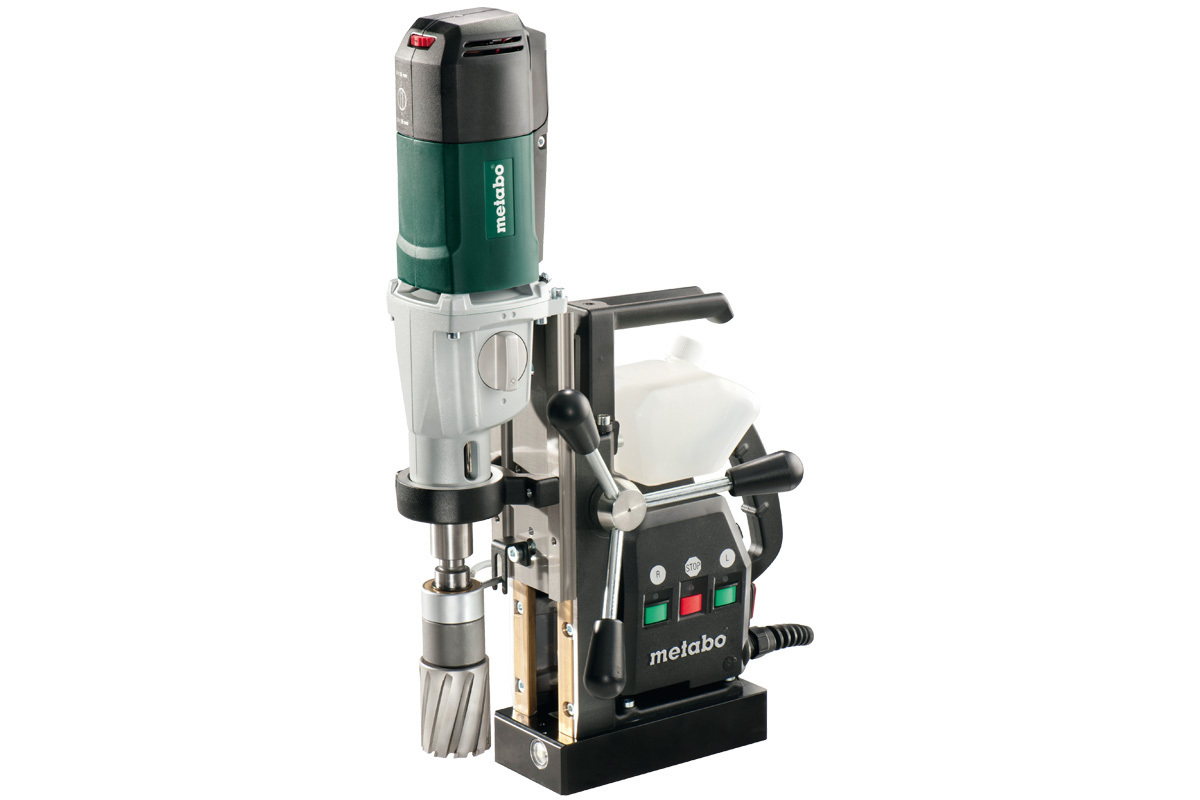

Metabo MAG 50 Magnetic Core Drill 600636500

Description:

Large stroke, therefore suitable for use of core drills, spiral drills and countersinks.
Magnetic base with high holding power permits working at vertical surfaces and overhead
Robust Metabo marathon motor with internal wiring for long service life
Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for working with customised speeds for the materials used that remain almost constant under load
Overload protection: protects the motor from overheating
Clockwise/anti-clockwise rotation with thread cutter
Durable two-speed gearbox with oil bath lubrication for ideal speeds
Integrated coolant container for easy to dose internal cooling of the core drill
Bright LED light for easy alignment in poor light conditions
Shaving protection can be mounted without tools and protects the user from metal shavings and tool contact
Protective circuit starts motor only if the magnet is activated
Restart protection: prevents unintentional startup after power cut
Lockable slide for comfortable tool change
Handle for easy carrying and lifting
Resistant rubberised mains cable (5m)

Kit Include:

Metabo MAG 50 Magnetic Core Drill
Industrial Holder For Weldon Shank 19 mm
Ejector Pins 75 And 100 mm
Drift Key MK 2
Safety Strap
Hexagon Socket Wrench SW 5
Shaving Protection
Transport Case

Accessories:

Drills And Impact Drills

Drill Chuck

Quick-Action Chuck, Impact-Proof
Geared Chuck, Impact-Proof

Chuck Accessories

Taper Arbors For Chucks
Drift Key

Magnetic Core Drills

Core Drills And Centring Pins

HSS-Core Drill "Rapid Cut"
HSS Core Drills, Short
HSS Core Drills, Long
Carbide Core Drills
Core Drill Bit Assortment
Centring Pins

Industrial Holder

Adapter

Other Accessories

Cooling Lubricants

Part Number/SKU: 600636500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Metabo MAG 50 Magnetic Core Drill

Rated Input Power 1200 W
Output Power 620 W
Max Drill-Ø With Core Drill 50 mm / 2 "
Max Drill-Ø With Spiral Drill 20 mm / 3/4 "
Maximum Drilling Depth 50 mm / 2 "
Thread Cutting M 16
No-Load Speed 100 - 250 / 200 - 450 /min
Revolutions At Rated Load 250 / 450 /min
Bit Retainer Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight 12.7 kg / 28 lbs
Cable Length 5 m / 16 ft
Torque 90 / 50 Nm // 797 / 443 in-lbs
- Maximum Stroke 160 mm / 6 5/16 "
- Dimensions Of The Magnet Base 90 x 190 mm / 3 9/16 x 7 1/2 "
- Carriage Lowest Position 457 mm / 18 "
- Carriage Top-Most Position 610 mm / 24 "

Vibration

Drilling In Metal 2.5 m/s²
Uncertainty Of Measurement K 1.5 m/s²

Noise Emission

Sound Pressure Level 79 dB(A)
Sound Power Level 92 dB(A)
Uncertainty Of Measurement K 3 dB(A)

Metabo MAG 50 Magnetic Core Drill

Rated Input Power 1200 W
Max Drill-Ø With Core Drill 50 mm / 2 "
Max Drill-Ø With Spiral Drill 20 mm / 3/4 "
Maximum Drilling Depth 50 mm / 2 "
No-Load Speed 100 - 250 / 200 - 450 /min
Bit Retainer Morse taper MK 2 / Weldon shaft 19 mm (3/4")

SKU	600636500
Barcode #	4007430238214
Brand	Metabo
Shipping Weight	25.0000kg
Shipping Width	0.500m
Shipping Height	0.500m
Shipping Length	0.500m
Shipping Cubic	0.125000000m3
Unit Of Measure	ea

3 Years Warranty
