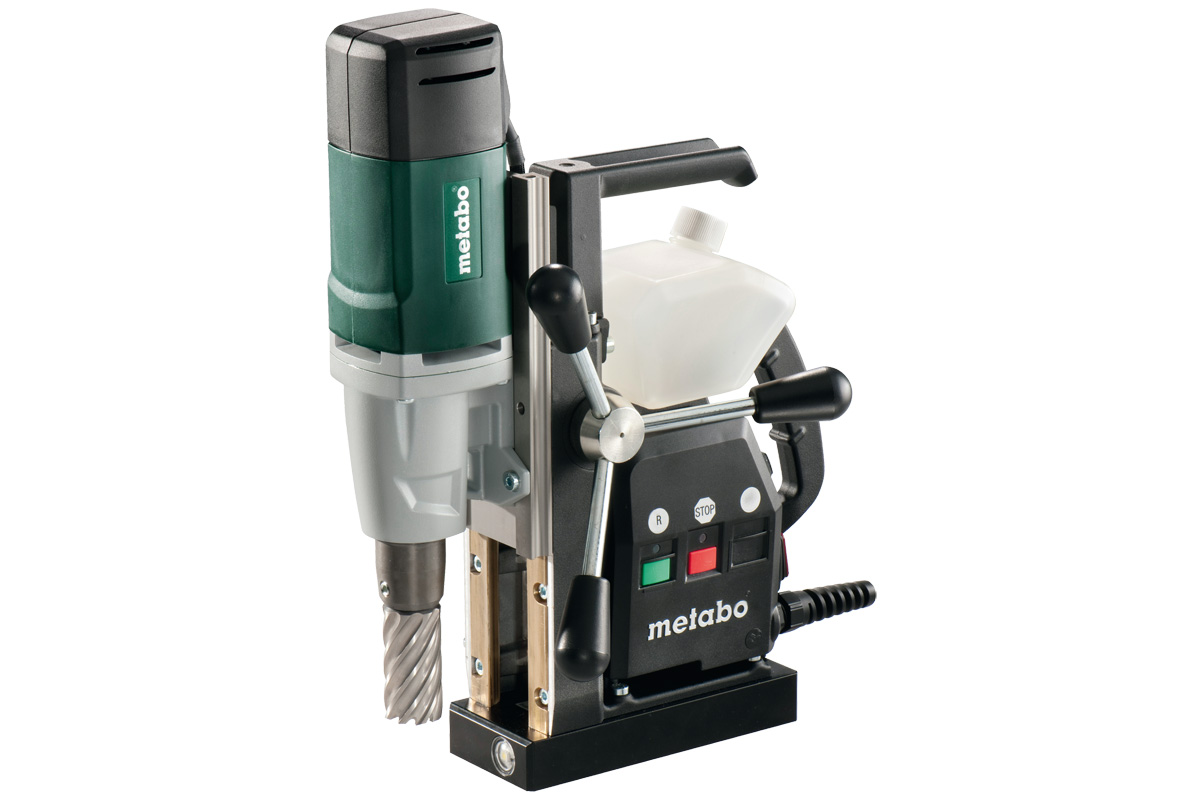

Metabo MAG 32 Magnetic Core Drill 600330500

Description:

Large stroke, therefore suitable for use of core drills, spiral drills and countersinks.
Magnetic base with high holding power permits working at vertical surfaces and overhead
Robust Metabo marathon motor with internal wiring for long service life
Integrated coolant container for easy to dose internal cooling of the core drill
Bright LED light for easy alignment in poor light conditions
Shaving protection can be mounted without tools and protects the user from metal shavings and tool contact
Protective circuit starts motor only if the magnet is activated
Restart protection: prevents unintentional startup after power cut
Lockable slide for comfortable tool change
Handle for easy carrying and lifting
Resistant rubberised mains cable (5m)

Kit Include:

Metabo MAG 32 Magnetic Core Drill
Ejector Pin 75 mm
Safety Strap
Hexagon Socket Wrench SW 4
Shaving Protection
Transport Case

Accessories:

Drills And Impact Drills

Drill Chuck

Geared Chuck, Impact-Proof

Magnetic Core Drills

Core Drills And Centring Pins

HSS-Core Drill "Rapid Cut"
HSS Core Drills, Short
HSS Core Drills, Long
Carbide Core Drills
Core Drill Bit Assortment
Centring Pins

Adapter

Other Accessories

Cooling Lubricants

Metabo MAG 32 Magnetic Core Drill

Part Number/SKU: 600635500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Metabo MAG 32 Magnetic Core Drill

Rated Input Power 1000 W
Output Power 520 W
Max Drill-Ø With Core Drill 32 mm / 1 1/4 "
Max Drill-Ø With Spiral Drill 13 mm / 1/2 "
Maximum Drilling Depth 50 mm / 2 "
No-Load Speed 700 /min /min
Revolutions At Rated Load 450 /min
Bit Retainer Weldon shaft 19 mm (3/4")
Weight 11.9 kg / 26.2 lbs
Cable Length 5 m / 16 ft
Torque 50 Nm / 443 in-lbs
- Maximum Stroke 160 mm / 6 5/16 "
- Dimensions Of The Magnet Base 90 x 189 mm / 3 9/16 x 7 1/2 "
- Carriage Lowest Position 343 mm / 13 1/2 "
- Carriage Top-Most Position 490 mm / 19 9/32 "

Vibration

Drilling In Metal 2.5 m/s²
Uncertainty Of Measurement K 1.5 m/s²

Noise Emission

Sound Pressure Level 85 dB(A)
Sound Power Level 98 dB(A)
Uncertainty Of Measurement K 3 dB(A)

Metabo MAG 32 Magnetic Core Drill

Rated Input Power 1000 W
Max Drill-Ø With Core Drill 32 mm / 1 1/4 "
Max Drill-Ø With Spiral Drill 13 mm / 1/2 "
Maximum Drilling Depth 50 mm / 2 "
No-Load Speed 700 /min /min
Bit Retainer Weldon shaft 19 mm (3/4")

SKU	600635500
Barcode #	4007430238207
Brand	Metabo
Shipping Weight	25.0000kg
Shipping Width	0.500m
Shipping Height	0.300m
Shipping Length	0.500m
Shipping Cubic	0.075000000m3
Unit Of Measure	ea

3 Years Warranty
