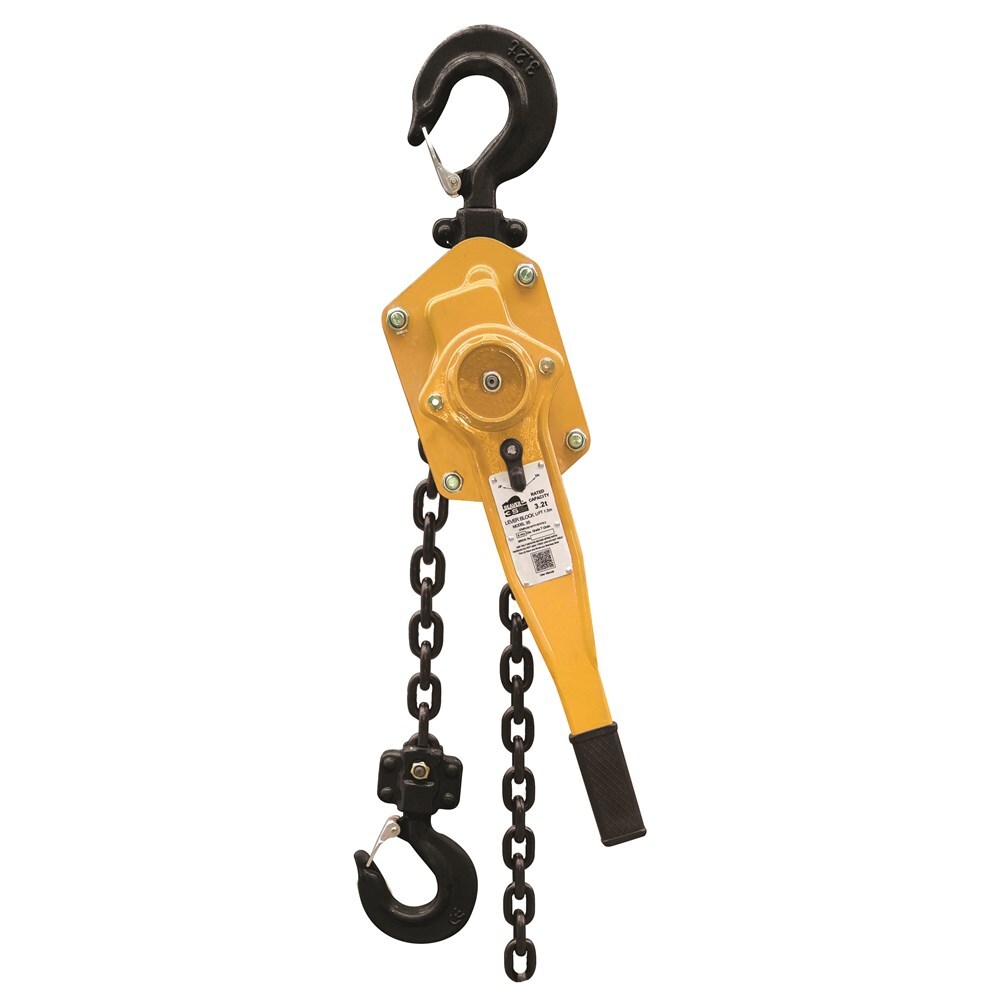

Manual Lever Blocks 3s 1.5m 3.2t Yellow  Beaver 506320

General Purpose



  • Beaver 250Kg and 500Kg 3S Lever Block are designed for small to medium size lifting and pulling applications.
  • The design combines strength and compact design into one, to provide a high quality and versatile Lever Block.
  • The load chain is made of high resistance Grade 80 zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834.
  • Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied with a test certificate, relating to its stamped identification side plate.
  • This lever block complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.

Specifications:

  • Product Code : 506320
  • Rated Capacity : 3.2t
  • Colour Code : Yellow
  • Standard Lift : 1.5m
  • Effort on Lever to Lift Full Load : 320N
  • No. Load Chain Falls     : 1
  • Load Chain Diameter : 10mm x 30mm
  • Rated Capacity:3.2t
  • Dimentions:
    • A:200mm
    • B:115mm
    • C:180mm
    • D:410mm
    • E:40mm
    • H:480mm
  • Net Weight:21Kg

Part Number/SKU: 506320

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 506320
Shipping Weight 20.0000kg
Shipping Width 0.600m
Shipping Height 0.700m
Shipping Length 0.400m
Shipping Cubic 0.168000000m3
Unit Of Measure ea
