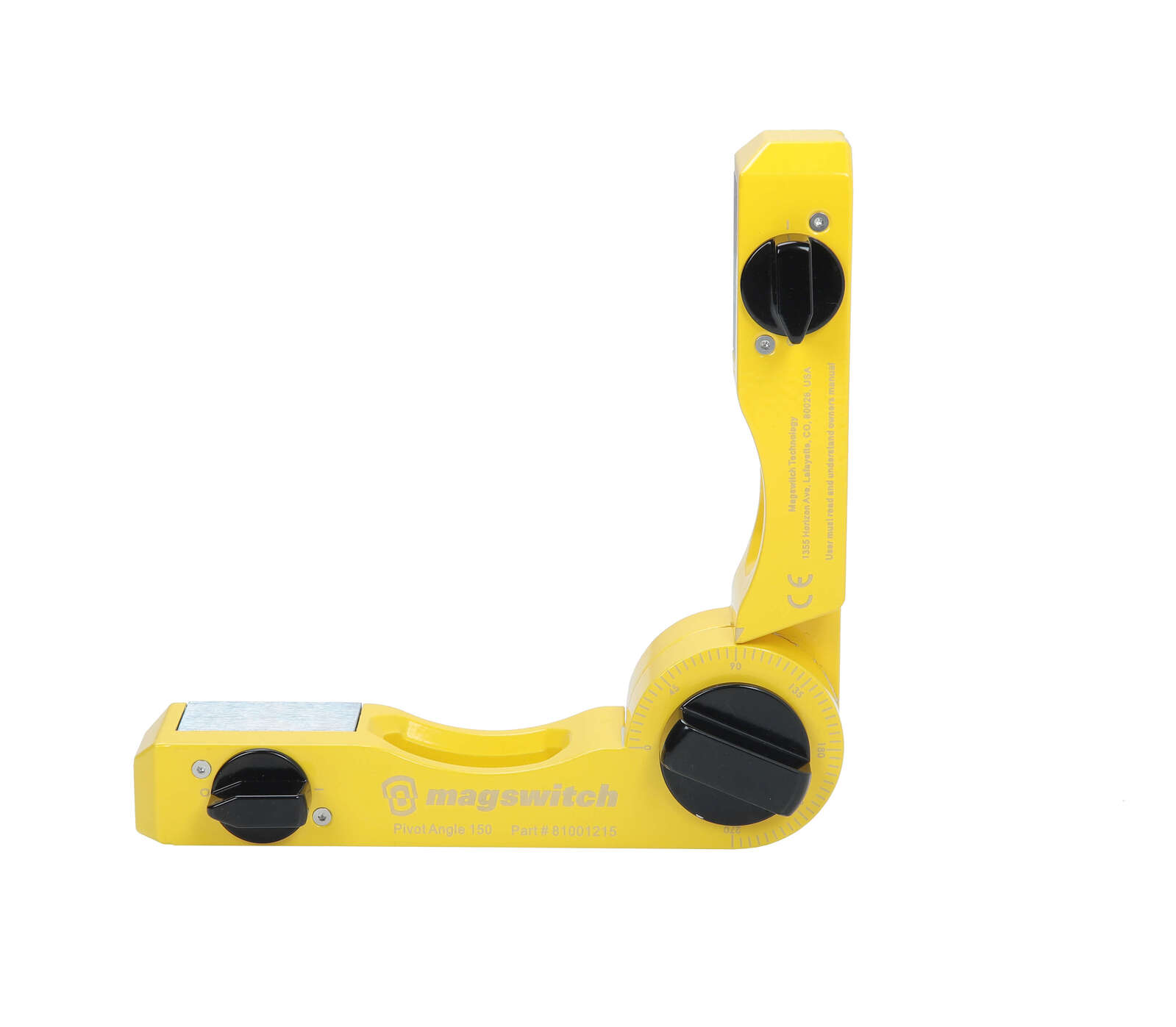

Magswitch Pivot Angle 150 Max 81001215

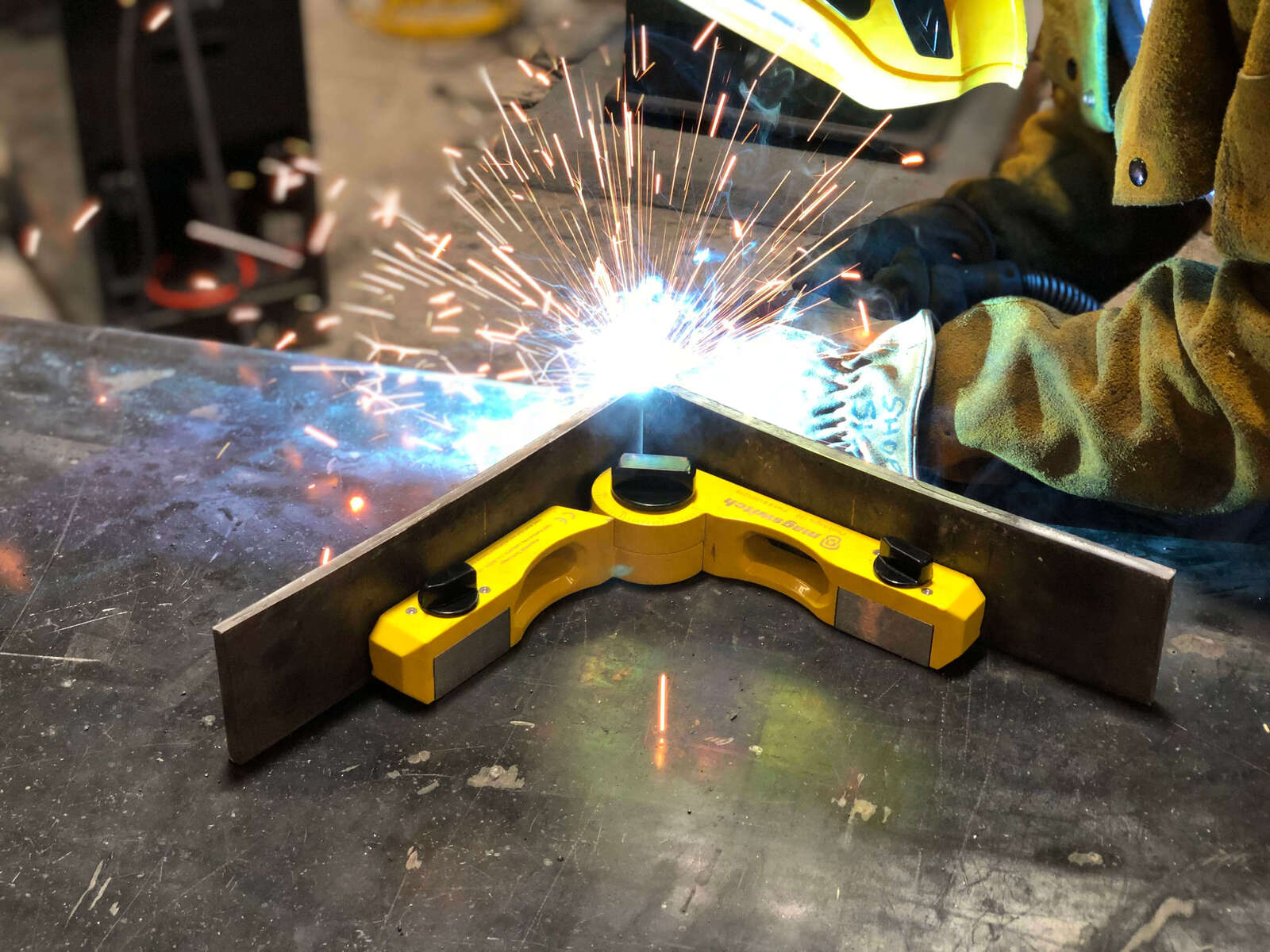

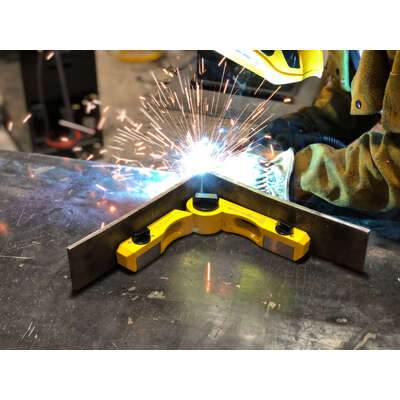

Magswitch Pivot Angle 150 Max has a holding angle range from 0 to 270 degrees, with each axis featuring a Magswitch magnet with a 150 lb. (68 kg) holding capability. No helping hands required. With interchangeable arms, this tool can be customized to fit in tight spaces! Arms compatible with Pivot Angle 150 Mini, sold seperately. Get the job done by yourself with the Pivot Angle 150 Max workholding tool.

Features

•  Makes it easy to work in a large range of odd angles
•  Provides amazing pivot range from inside 0-270 degrees
•  Features two powerful 150lbs Magswitch magnets that turn completely turn ON/OFF
•  Each magnet provides three-sided working
•  Perfect for both flat and pipe material
•  Interchangeable arms allow for welding in tight spaces (Sold Separately)

SPECIFICATIONS

• Max Breakway: 182 lbs / 82.6 kg on 3/16 in steel plate thickness
• Full Saturation Thickness: 3/16 in / 4.7 mm
• Product Weight: 3.2 lbs / 1.5 kg
• Magnetic Pole Footprint: 26.4 mm x 54 mm

Part Number/SKU: 81001215

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
