Magswitch 8100454 90 Degree Angle 400

Magswitch 90 Degree Angle 400 – 8100454

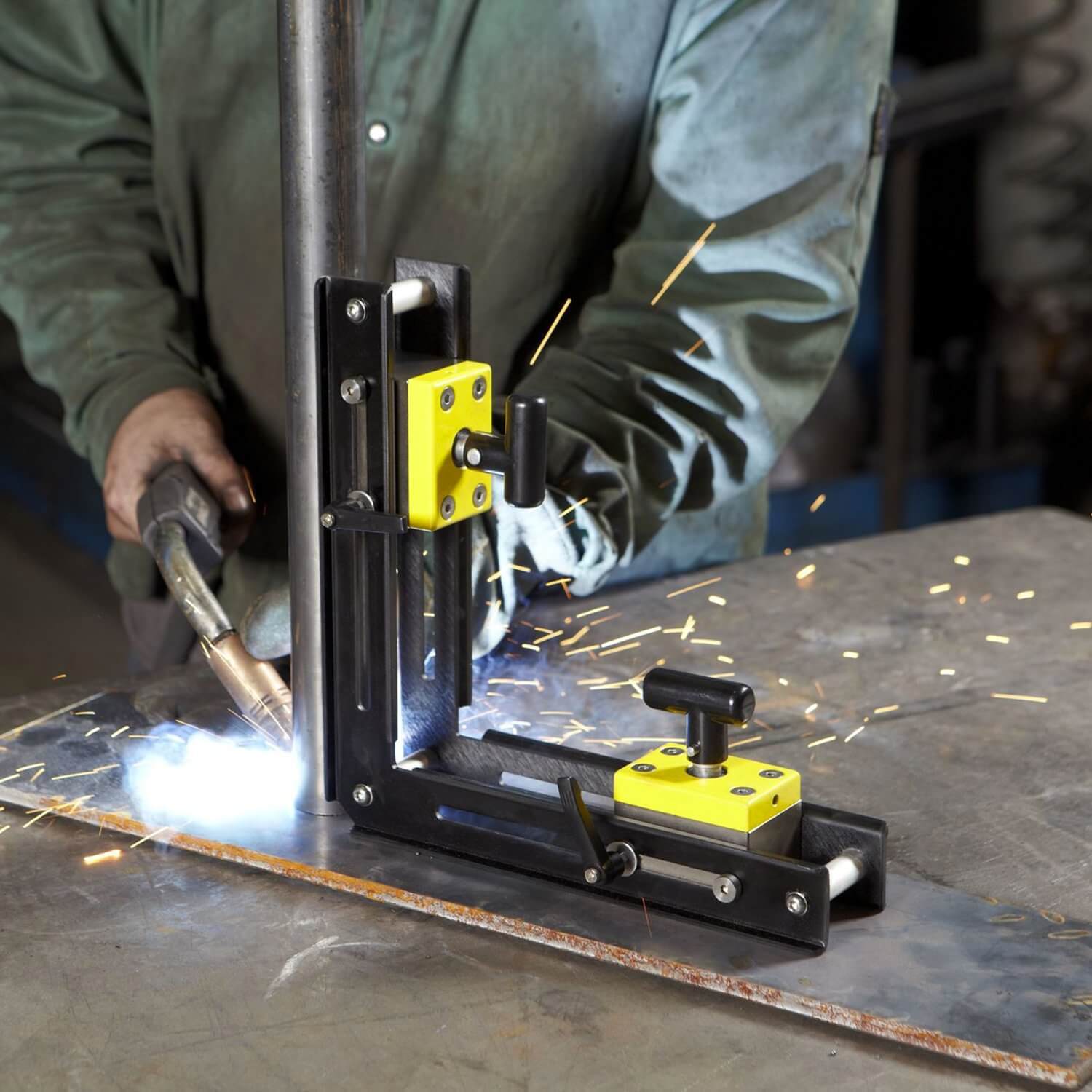

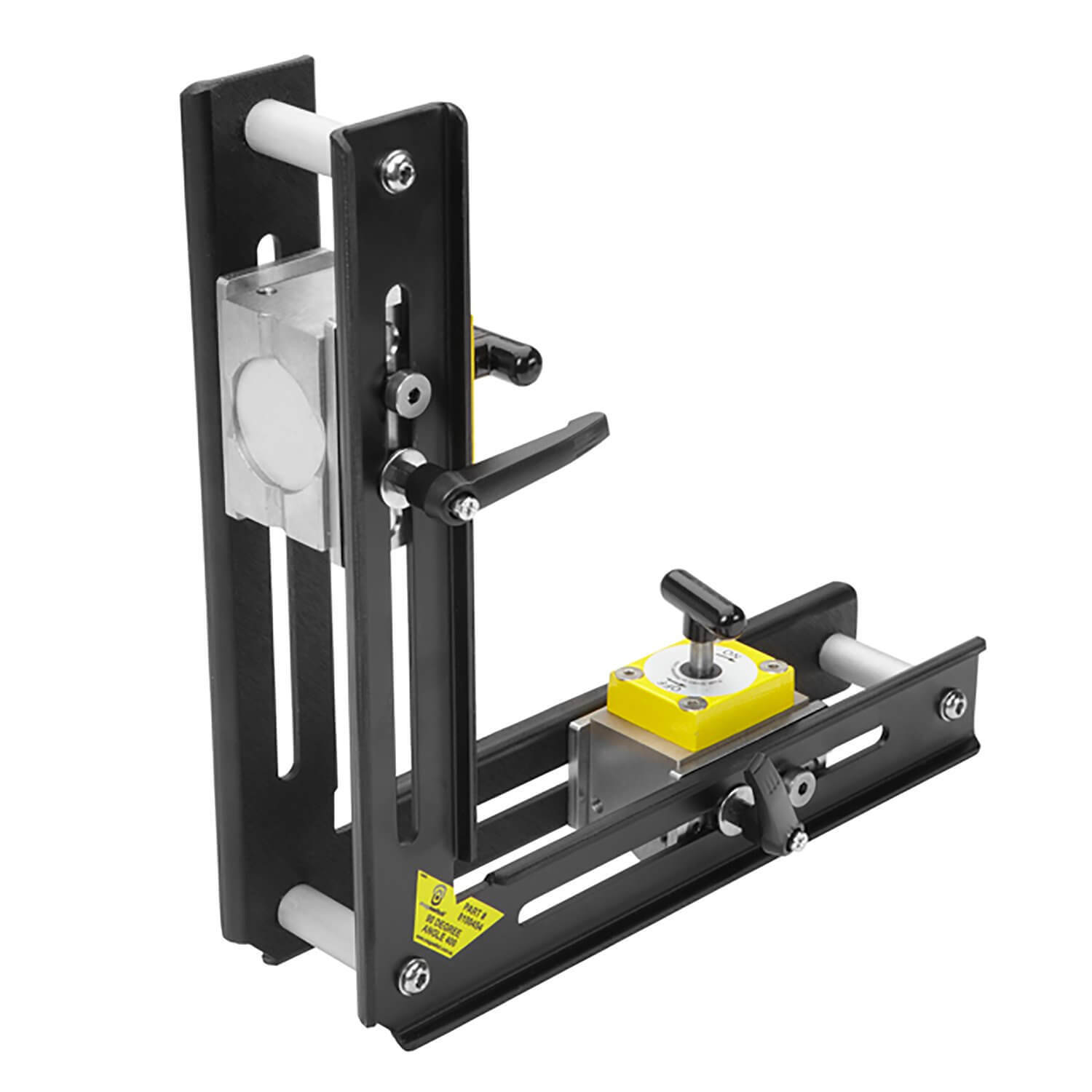

The Magswitch 90 Degree 400 features 2 MagSquare 400 magnets, each with 400lb/181kg holding force on each axis.

Specifications

• Maximum Breakaway Force: 400 lbs/181 kg
• Maximum Shear: 20 lbs/ 9 kg
• Full Saturation Thickness: 1/4 in /6.35mm
• Product Weight: 6.2 lbs/2.8 kg
• Overall Dimensions: 11.3 x 3.5 x 11.3 in / 287 x 90 x 287 mm
• Magnetic Pole Footprint: 64 mm x 41.26 mm

Features

• Features patented Magswitch® technology for complete on/off control that requires no cleaning.
• Incredible strength with precision positioning.
• Offers unmatched versatility as magnets move up and down or reversible on each axis.
• Holds flat or round steel.
• Additional MagSquares can be added for extra strength.
• Easy turn on/off with 180° turn of the knob.
• MagSquares may be removed from the angle for other use.

Part Number/SKU: 8100454
