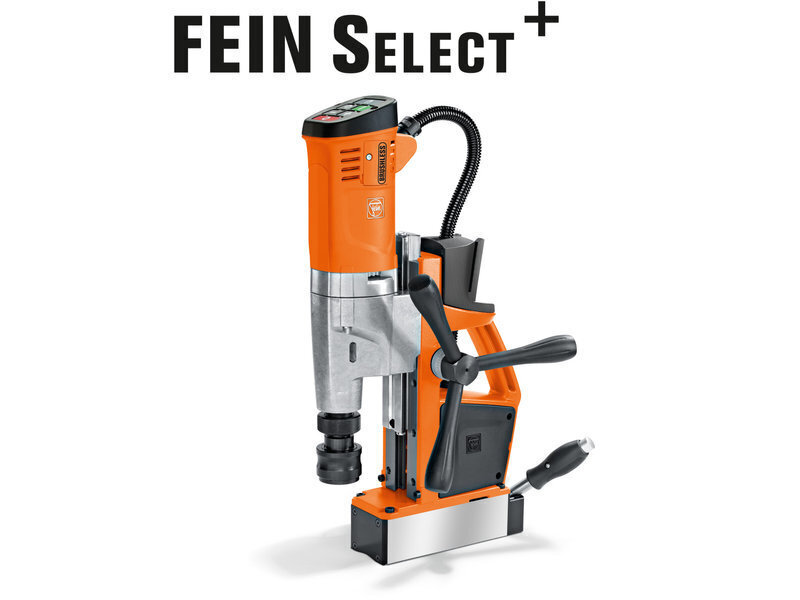

Cordless Universal Magnetic Core Drill For Up to 35mm AKBU 35 PMQW SET

  • Small and powerful single-speed cordless universal magnetic core drill with forward/reverse running, MT2 tool mounting, permanent magnet and maximum functionality for mobile working on the construction site.
  • Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
  • Small and light tool for continuously good work progress thanks to brushless FEIN PowerDrive motor with tacho electronics and FEIN HighPower storage battery with cells with high current capability.
  • Flexibility for all mobile drilling work, such as core drilling, twist drilling, tapping, countersinking and reaming.
  • FEIN HighPower Li-ion battery. Continually high power output with 75% higher current rating than a Li-ion battery for good work progress.
  • Simple operating concept avoids mix-ups and can be clearly seen by the user.
  • Convenient magnetic holding force display.
  • Tilt sensor.
  • Reversible.
  • Electronic speed setting.
  • Extra large stroke range.
  • MT2 tool mounting.
  • Extra narrow permanent magnet with magnetic bias.
  • Speed saving "memory function".
  • The battery charge can be read off the battery.
  • FEIN SafetyCell technology. Protects the battery and tool from overload,overheating and total discharge.
  • 3-year FEIN PLUS warranty including battery and charger.

TECHNICAL DATA

 BATTERY VOLTAGE     18 V
 MOTOR    Brushless
 SPEED, FULL LOAD    130-520 RPM
 TOOL HOLDER    MK 2
  TWIST DRILL MAX. Ø   18 MM
  CORE DRILL, DRILLING DEPTH MAX.   50(75)* MM
 TAPPING    M 14
 COUNTERSINKING MAX. Ø   31 MM
  REAMING MAX. Ø    18 MM
 CARBIDE CORE DRILL BIT MAX. DIAMETER    35 MM
 HSS CORE DRILL MAX. Ø   35 MM
 CORE DRILL HOLDER    3/4 In Weldon
 CHANGING THE CORE BIT    Tool-Free
 STROKE    135 MM
 TOTAL STROKE RANGE    260 MM
 MAGNETIC HOLDING POWER   9000 N
MAGNETIC FOOT DIMENSIONS    195 X 70 MM
 WEIGHT WITHOUT BATTERY    12.10 KG

KIT INCLUDES

  • 1 X Coolant Pump
  • 1 X Lashing Strap
  • 1 X Swarf Hook
  • 1 X Centering Pin
  • 1 X Contact Guard
  • 2 X 18 V 5.2 Ah Hi-Power Batteries.








Part Number/SKU: AKBU35PMQWSET

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU AKBU35PMQWSET
Brand Fein
Shipping Weight 12.0000kg
Shipping Width 0.500m
Shipping Height 0.400m
Shipping Length 0.400m
Shipping Cubic 0.080000000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review
