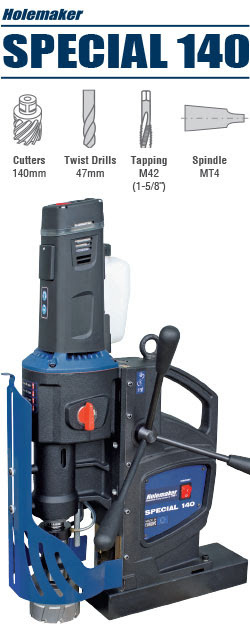

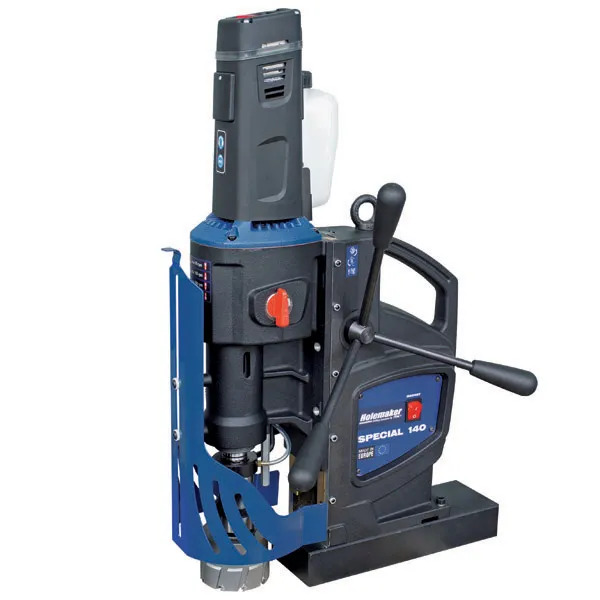

Magnetic Base Drill 240V 4 Metres Holemaker HMSPECIAL140

#4 MORSE TAPER HEAVY DUTY DRILLING & TAPPING MACHINE

The Holemaker Special 140 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M42 of through holes and M33 blind holes.

Features
New generation Italian made motor
Intelligent speed control system maintains stable speed regardless of load changes
Electronic Variable Speed Control
Electronic clutch
Overload and Overheat protection
Tilt sensor stops the motor in cases of machines break away
360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
Intuitive control panel at top of the drill
Very light weight
Supplied in a metal carry case with cutter guard & safety strap
SPECIFICATIONS
Capacity ( Diameter ): 140mm
Capacity ( Depth ) : 110mm
Twist drill capacity: 47mm
Tap capacity: M42
#4 Morse Taper spindle
2150 Watt 240V motor
4 Speed variable gearbox (55-85 / 100-150 / 200-300 / 350-520rpm)
Lightweight, only 31kg
25000Nm Magnetic dead lift on 25mm steel plate
260mm Stroke
Height 655mm min / 915mm max

Supplied with arbor for use with 3/4” shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor for 1-1/4” shank cutters up to 140mm diameter and 110mm depth.

Part Number/SKU: HMSPECIAL140
