Magnetic Base Drill 240V 4MT PRO 110 Holemaker HMPRO110

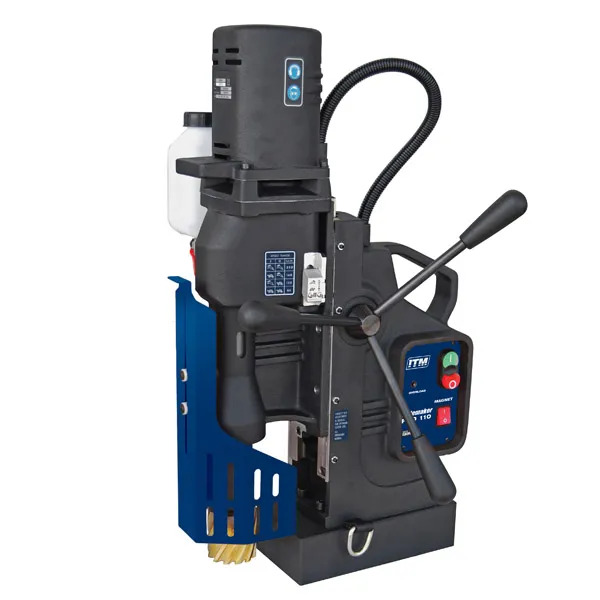

The Holemaker PRO 110 is an extra heavy duty, large capacity machine capable of producing burr-free holes up to 110mm diameter by 110mm depth.
1650w motor with 4-speed mechanical gearbox produces superb torque through gear reduction in low speeds. No. 4 Morse Taper spindle bore for usewith taper shank drills, tapping head (M30 Capacity) and taper shank reamers.

Supplied complete with side mounted coolant system and arbor for use with 3/4" shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor to take 1-1/4" shank cutters up to 110mm diameter and 110mm depth. 1100ml pressure feed coolant bottle available, recommended for use with large diameter and depth hole drilling.

SPECIFICATIONS

  CAPACITY (Diameter)   110mm
  CAPACITY (Depth)   110mm
  CAPACITY (Twist Drill)   4 Morse Taper 47mm
  MOTOR POWER   1650 Watt
  INPUT POWER    1800 Watt Single Phase 240V
  GEAR BOX

  4 Speed Heavy Duty Mechanical Gearbox

   (85 / 135 / 160 / 250rpm)

  WEIGHT     31 kg
  MAGNETIC DEAD LIFT      2200Nm on 25mm Steel Plate
   STROKE    214mm




Part Number/SKU: HMPRO110

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU HMPRO110
Brand Holemaker
Shipping Weight 32.0000kg
Shipping Width 0.700m
Shipping Height 0.700m
Shipping Length 0.700m
Shipping Cubic 0.343000000m3
Unit Of Measure ea
