Magnetic Base Drill PRO75 240V Holemaker HMPRO75

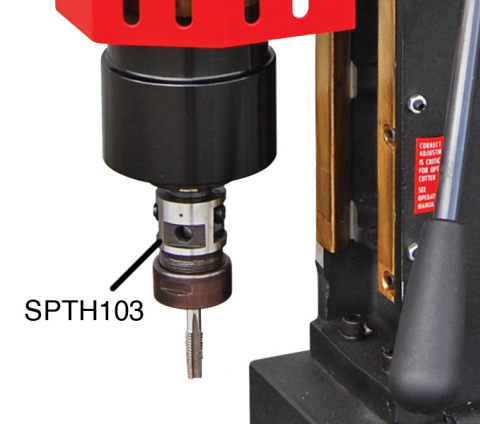

The Holemaker PRO 75 is a versatile, multi-purpose machine, equipped with a No. 3 Morse Taper spindle. The 2 speed gearbox with electronic variable speed, Electronic Speed Stabilization System (ESSS), and motor soft start feature makes this machine ideal for tapping up to M24. With a large cutting capacity of 75mm diameter and 110mm depth using Holemaker cutters, this machine will suffice for most holemaking requirements. Other standard features include gravity feed coolant system & left or right hand feed handle operation. The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge or experience.

Supplied complete with arbor for use with Holemaker cutters up to 75mm depth of cut. Optional arbor to take Holemaker cutters up to 110mm depth of cut is available.

SPECIFICATIONS

  CAPACITY (Diameter)   75mm
  CAPACITY (Depth)   110mm
  CAPACITY (Twist Dill)   3 Morse Taper 32mm
  MOTOR POWER    1650 Watt
  INPUT POWER   1800 Watt Single Phase 240V
  GEAR BOX

  2 Speed Gearbox with electronic variable speed and

 motor soft startfeature 80-160; 210-420 rpm

   WEIGHT    27 kg
   MAGNETIC DEAD LIFT    19500Nm on 25mm Steel Plate
  STROKE    214 mm

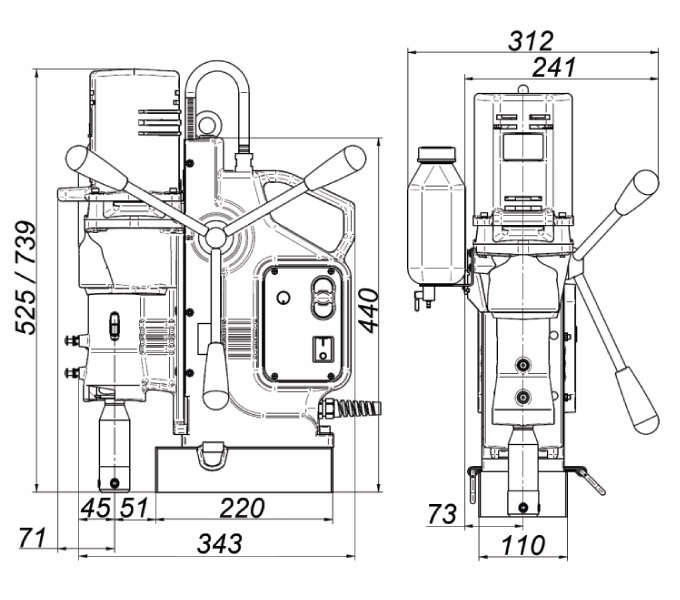

   HEIGHT    525mm Min / 739mm Max




Part Number/SKU: HMPRO75

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU HMPRO75
Brand Holemaker
Shipping Weight 30.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
Shipping Cubic 0.125000000m3
Unit Of Measure ea
