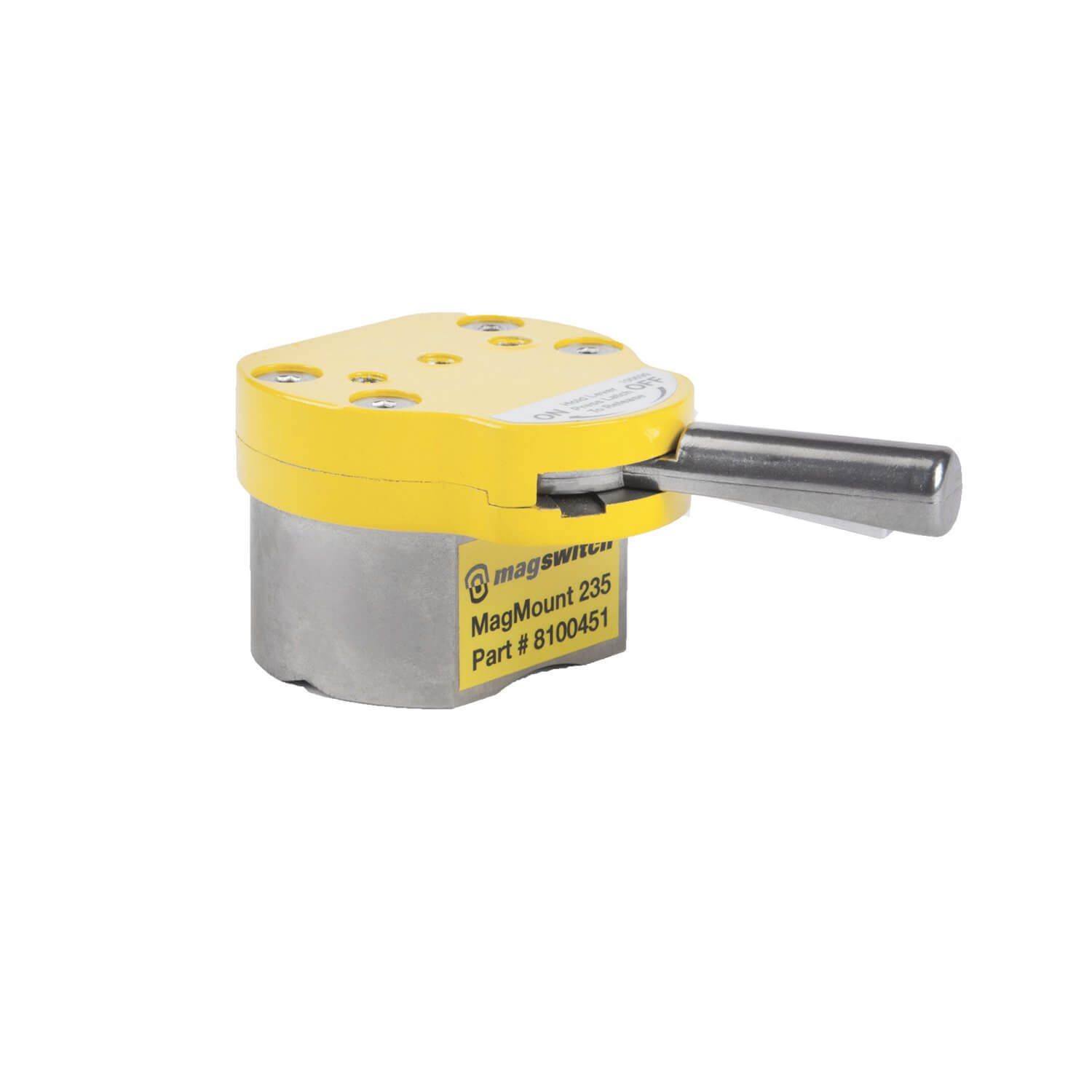

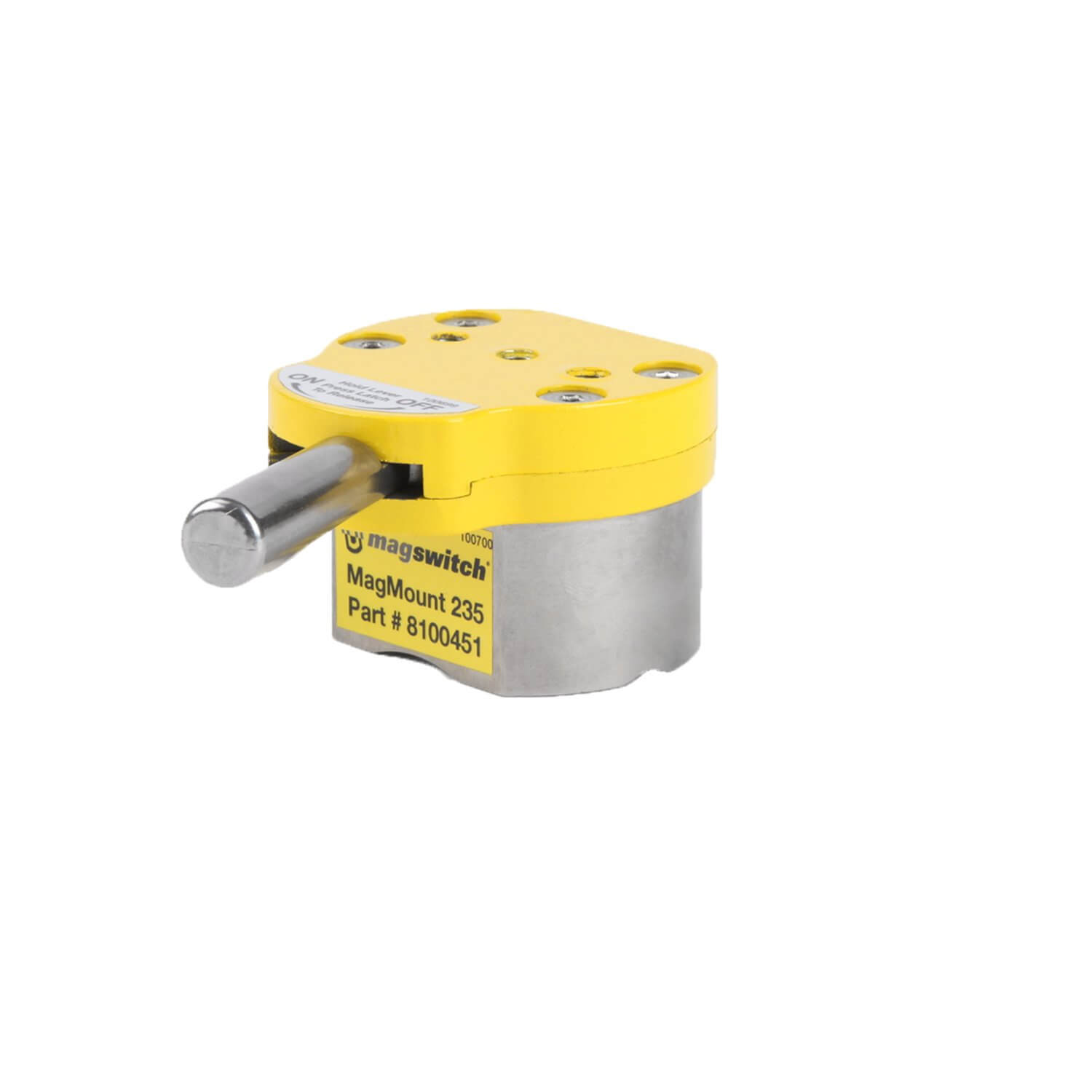

Mag Mount 235 Magswitch 8100451

MagMount 235 allows for easy movement and placing of a tool. With a single On/Off lever, you have 235 pounds of magnetic hold force at your disposal. The top of the tool is ready for mounting a variety of accessories.

SPECIFICATIONS

• Max Breakaway: 216 lbs (98 kg) on 3/8” steel
• Full Saturation Thickness: 3/16” (4.75 mm)
• Product Weight: 1.2 lbs (0.54 kg)
• Dimensions: 3.8 x 2.7 x 1.7 in (96.5 x 68.5 x 43.1 mm)
• Magnetic Pole Footprint: 56 mm x 42 mm

Features

• Magnet turns completely On and Off.
• Magnet stays clean.
• Does not use an electrical power source.
• Holds flat and round surfaces of steel.
• Fixed bar magnet is for flat steel
• Swivel bar magnet is for round or uneven shapes.
• Multiple threaded holes on the top.

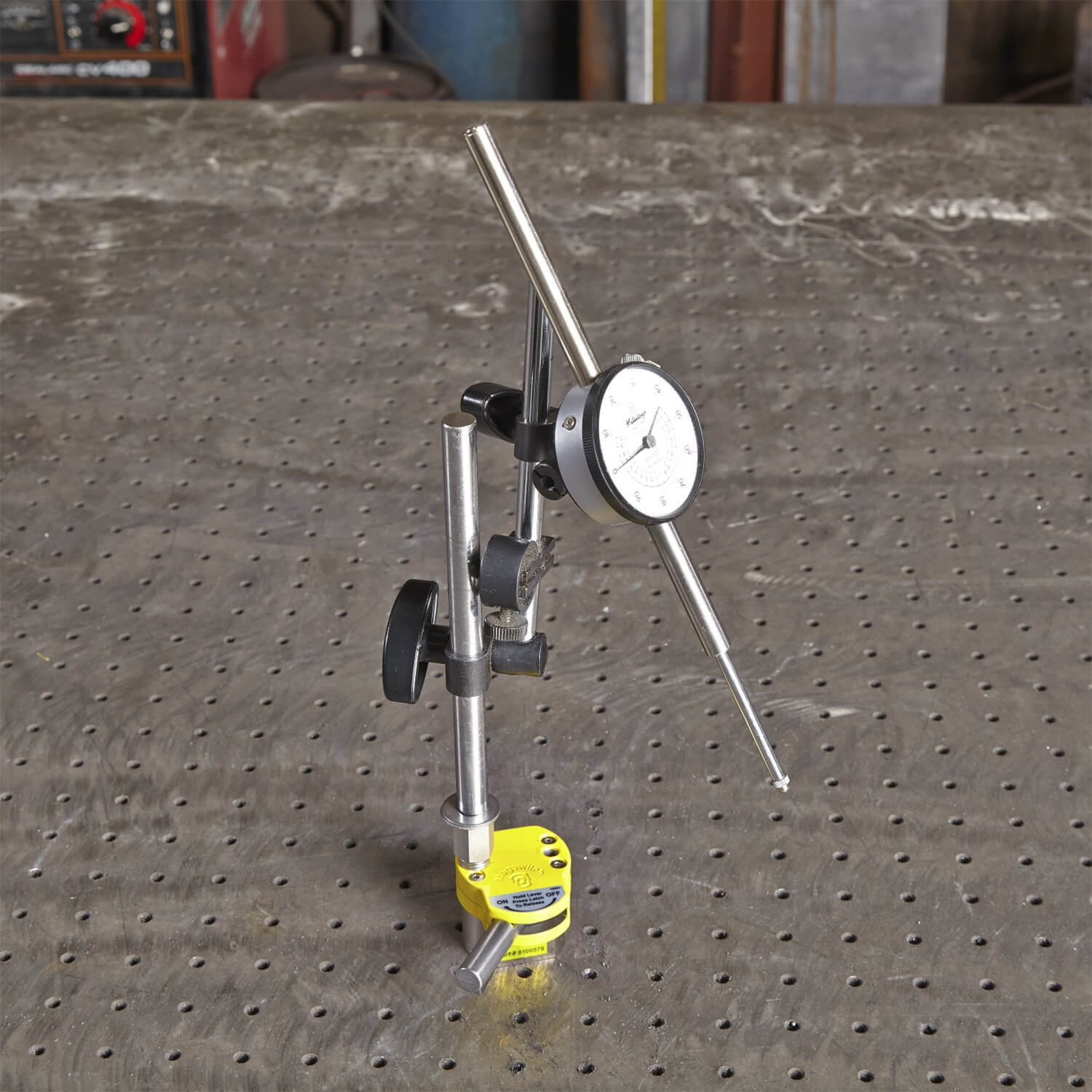

• Perfect for top mount tools, measuring and security devices.

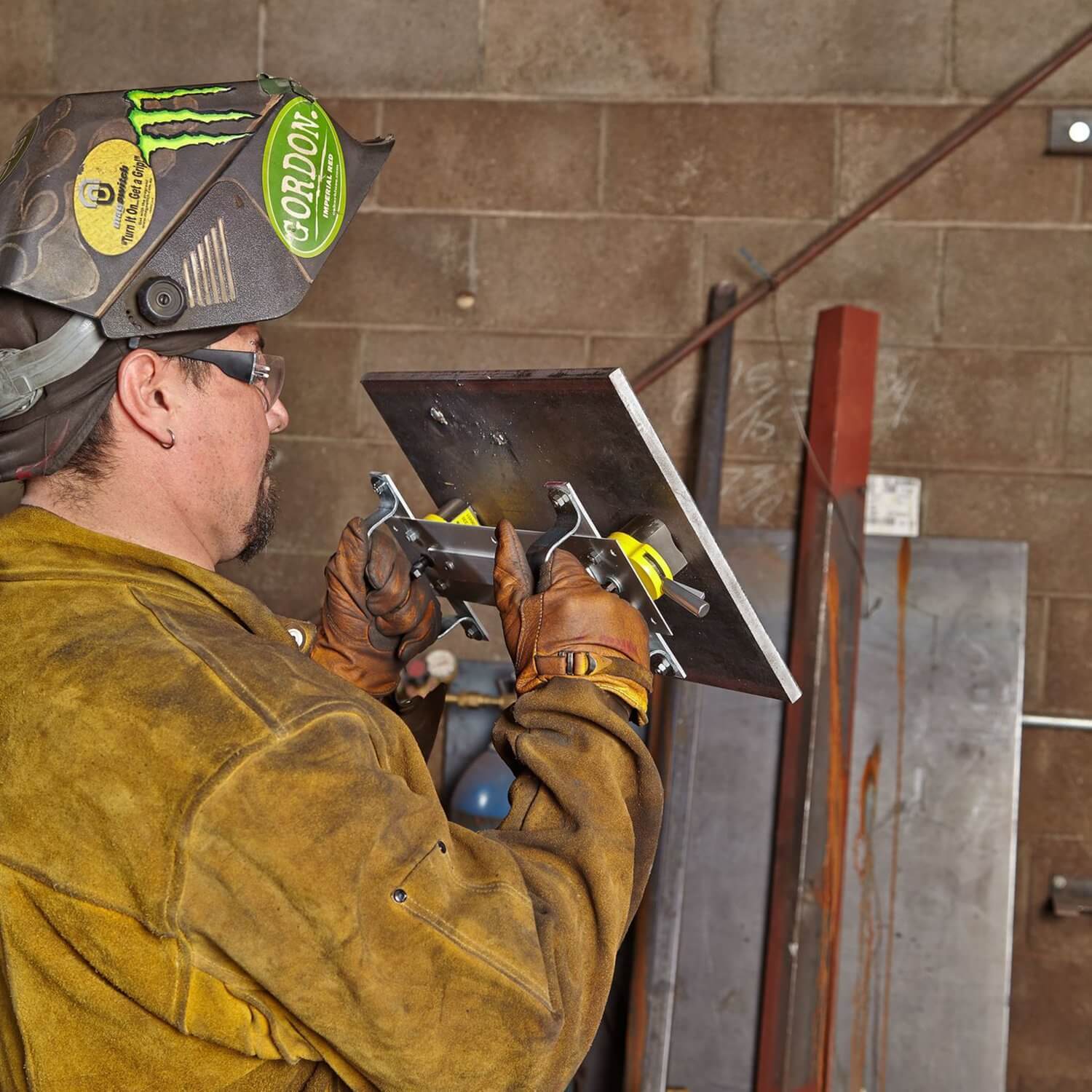

• Versatile and can be used in fixed plant or job site applications, or for items being transported.
• 90 degree actuation, fast precise positioning with strong hold.
• The top mount magnets feature two magnets are ideal for supporting fixtures over a distance.

Part Number/SKU: 8100451

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
