MA100 Fume Filter Unit With 3M Arm Single Phase 240V 91100MA1

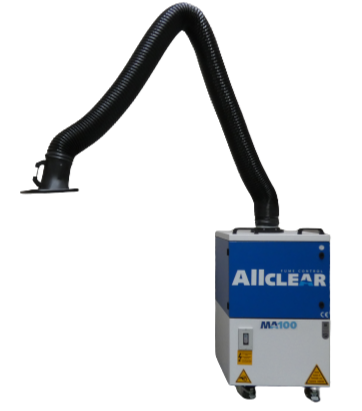

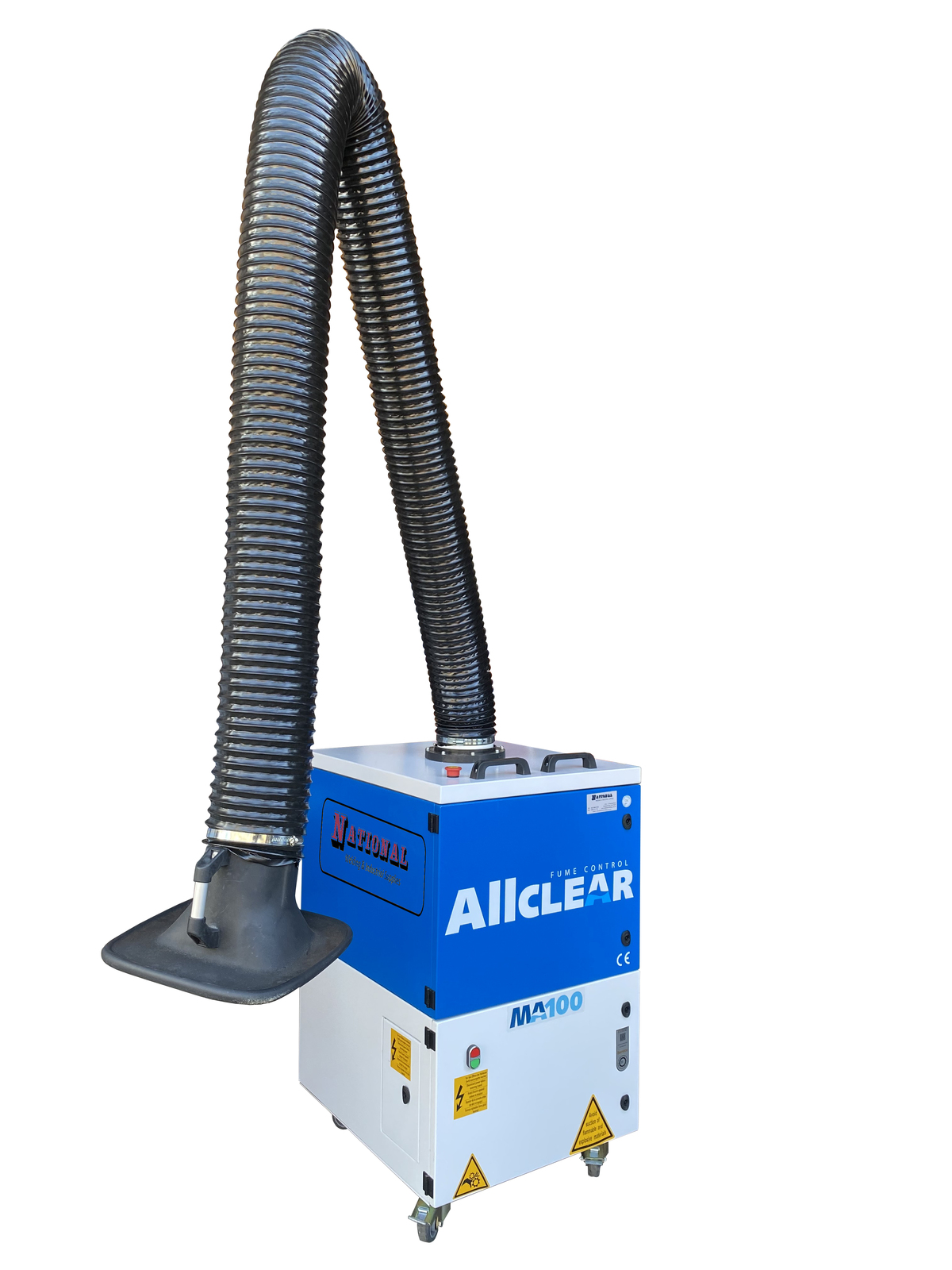

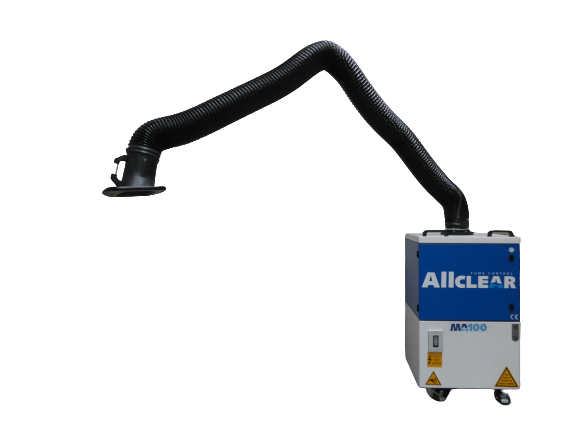

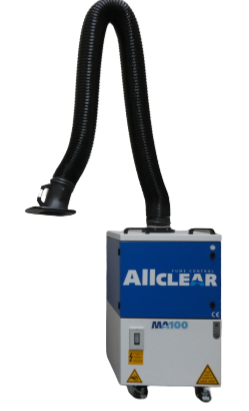

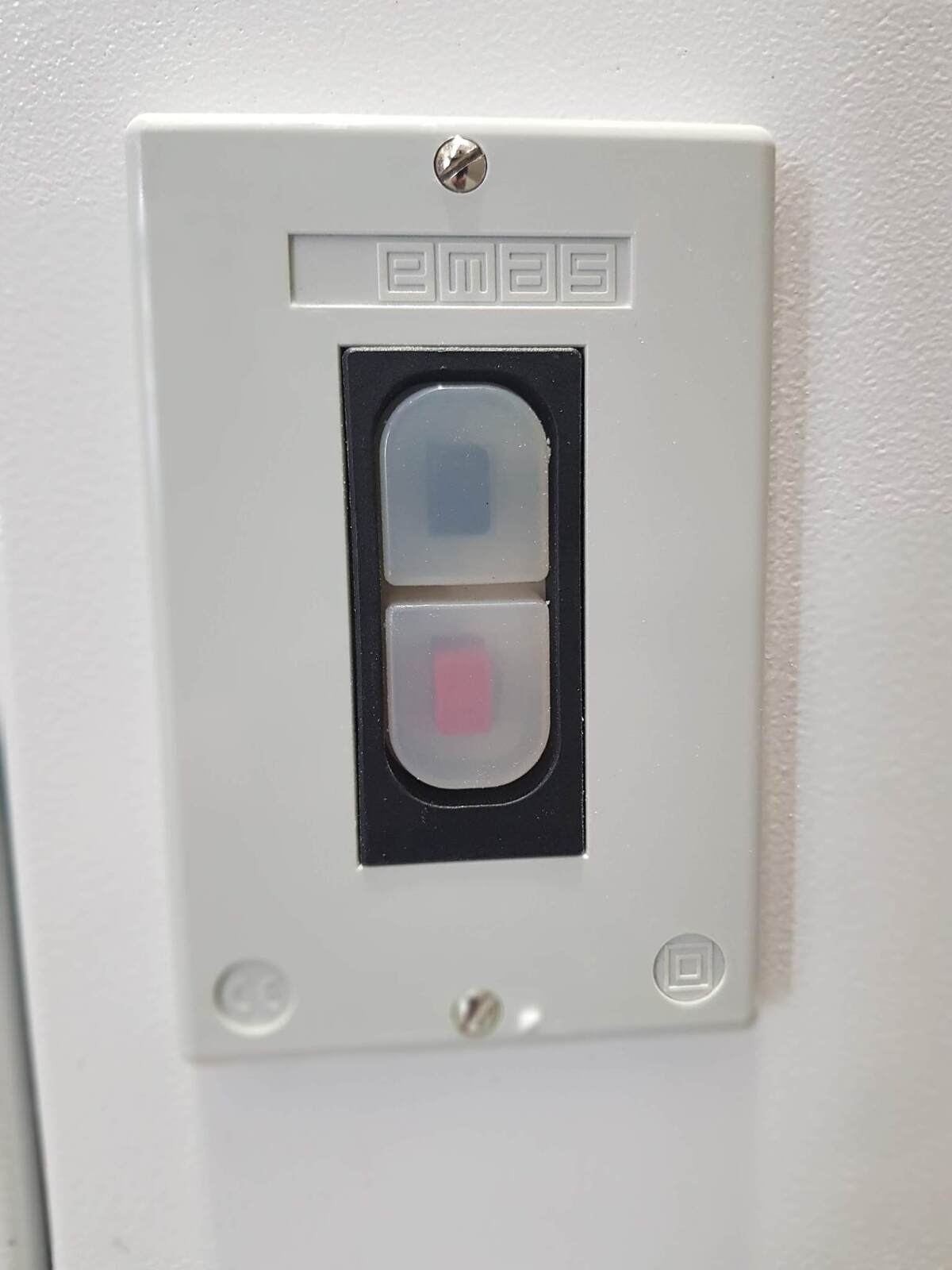

The MA100 is durable mobile extraction unit equipped with a 3m arm. It incorporates technology effectively to make it more user-friendly. The control switchboard includes operating hours, filter control and the on/off button. The emergency control switch is located on the top for easy access. The 1PH/240V engine increases suction performance.  The 3m arm with 360 degree movement does not interfere with suction. The cartridge filter makes replacement stress free including a de-dusting compartment to increase the cartridge lifetime. The quality casters also allow for easy mobility.

Made in Turkey

• The Compact design makes the unit take up little space in the work area and allows for easy mobility.
• The Ergonomic design gives the user access to all functions without problems.

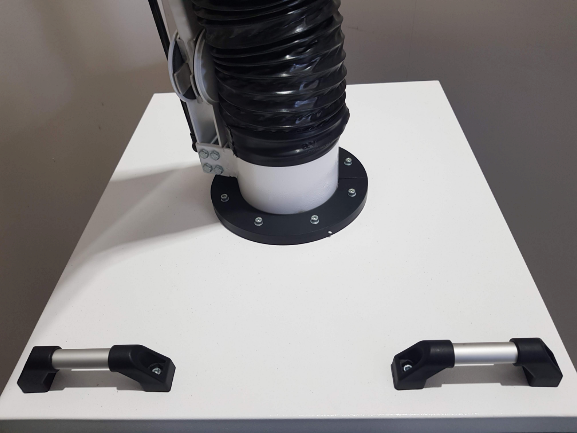

• The special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm.
• The Metal Pipe Type arm is resistant to heavy conditions and high temperatures.

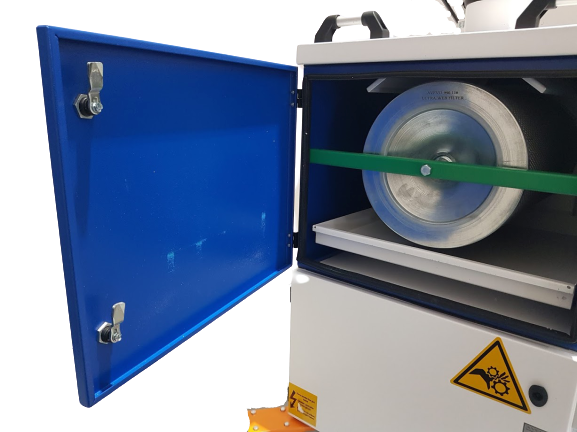

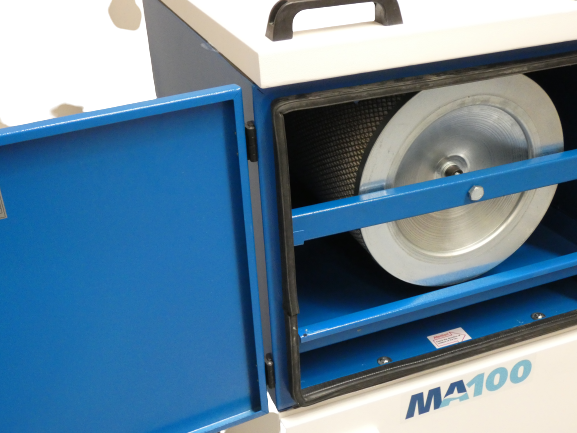

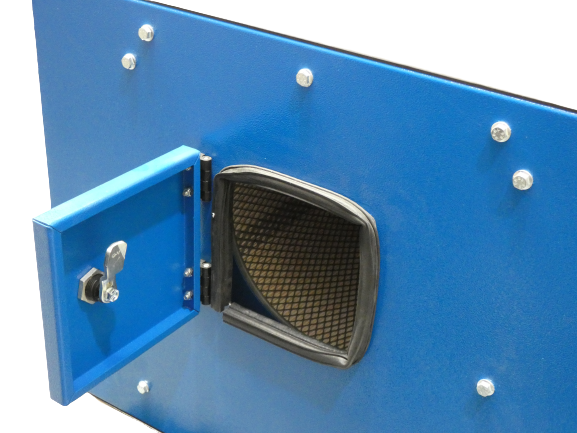

• The filter cleaning door allows for easy and safe access to the cartridge filter and the compressed air gun also provides quick and easy cleaning.
• The cartridge filter 14.5m² surface, nanofiber structure provides very high filtration efficiency and extended lifetime.

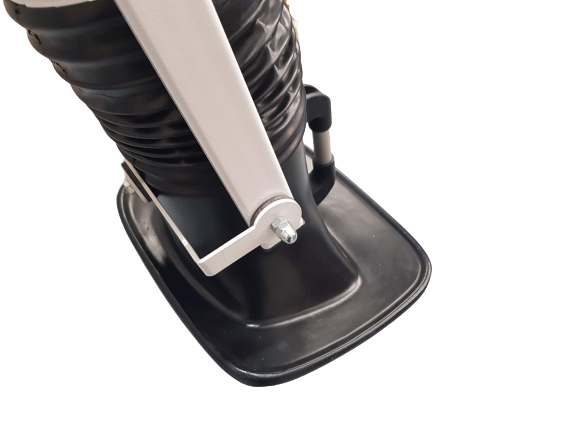

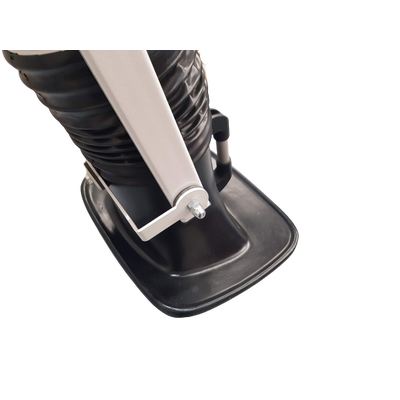

• The suction hood effectively captures particles with its large, lightweight and durable structure  .
• The unique, patented dust collection system drawer, lengthens the cartridge filter life, providing safer dust removal which can be discharged even when the machine is running

• Part number: 91100MA1

  Motor size: 1.1kw

  Suction performance: min.1100, max. 1600 m³/hour

  Filter: Cartridge nanofiber with 14.5m²

  Voltage: 240v

  Arm/s: Pipe type, external support, 3m long

  Weight: 100kg

  Dimensions (WxHxL) mm: 740 x 700 x 1050

•

Part Number/SKU: 91100MA1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
