Lizard Welding Carriage 240v ITM WA-LIZARD

The Lizard is a heavy duty European made portable welding carriage designed to produce consistently high quality welds. The Lizard features programmable welding patterns and parameters, and an optional oscillating attachment is available. The unit enables weld bead geometry that is exact to the required specifications, thus substantially reducing costs.
Simple to use multifunction LED display for programming welding patterns & parameters incl.

Travel speed
Weld length
Skip length
Total length
Reverse fill & crater fill time

These settings can be saved; and up to 40 different programs can be stored.

Continuous and stitch weld capability
Compact & lightweight design with durable cast aluminum housing
Permanent magnet clamping system with on/off lever ensures positive magnetic traction
Maintenance free 4-wheel drive with worm gear reduction
Friction drive and control loop feedback mechanism provides speed stabilisation in all positions, to reduce weld defects
Automatic off limit switches on both ends of machine
Automatic ARC ON/OFF system initiates welding and travel, simultaneously
Quick clamping torch holder mechanism for different types of MIG/MAG torches with diameters of 16 - 22mm (5/8" - 7/8"); optionally up to 35mm (1-3/8")
Precise torch adjustment with screw drive cross slide
Consistent heat input reduces distortion
Self-guiding roller arms eliminate the need for track
Improves working environment - removes operator from heat and fumes

Package Includes

Welding carriage
Power lead
Arc ignition cable
Cable holder
Torch holder
Lower torch holder
4 mm Allen key
Operator’s manual

SPECIFICATIONS

Power supply: 115-230VAC / 50-60Hz
Welding positions: Vertical / Horiziontal
Chassis to material clearance: 5mm
Travel mechanism: Friction Drive With Worm Gear Reduction, 4 Wheel Drive, Heat Resistant Silicone Wheels
Tracking method: 2-Guide Rollers
Torch adjustment: Up-Down 35mm, Left-Right 35mm
Gear roller adjustment: 75mm
Horizontal speed: 0-1200mm/min
Vertical speed: 0-1100mm/min

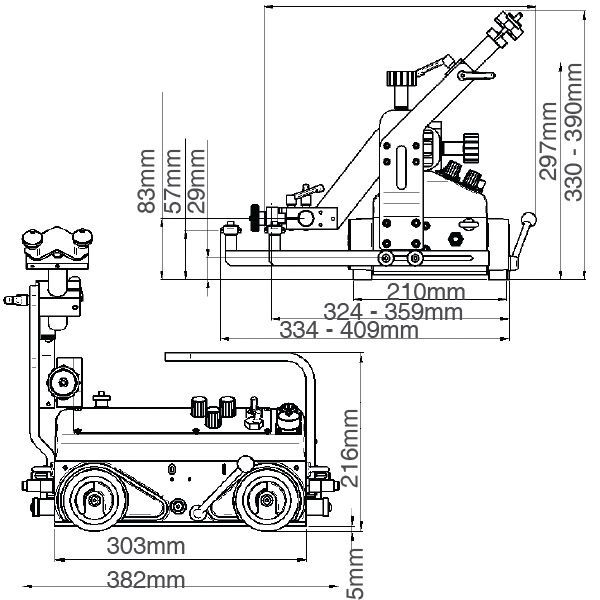

Dimensions: 282mm (L) x 272mm (W) x 390mm (H)
Weight: 13.5kg

Part Number/SKU: WA-LIZARD

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	WA-LIZARD
Brand	ITM
Shipping Weight	15.0000kg
Shipping Width	0.900m
Shipping Height	0.900m
Shipping Length	0.900m
Shipping Cubic	0.729000000m3
Unit Of Measure	ea
