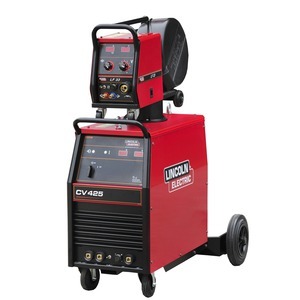

CV-425 Ready-to-weld package. Includes: CV425, LF33, 10m interconnection cables, Powercraft No.4 gun, work return lead, flowmeter, input lead (5m) - K14080-1AG
Top Features
Potted and Encapsulated Printed Circuit Board controls in separate dust free compartment.
Different feeders for construction and shipyards, all with meters, with or without synergy or memory; just select the one of your choice.
Superb arc behaviour with argon mix and 100% CO2.
Electronic feedback system on the wire drive will guarantee consistent wire feed speed.
Completed with an extensive set of features.
Input Power 230/400/3/50-60
Processes MIG, Flux-Cored
Features and Benefits
High output, reliable workhorse
The CV-425 is an industrial power sources designed for heavy-duty applications. Both power sources meet IP23 protection which means that they will operate in the most arduous environmental conditions experienced, in such places as shipyards or offshore yards. The machines have been designed so that all the sensitive components are enclosed in a compartment free from dust and separated from the air-flow needed to cool the machine. The PCB within the machines is completely encapsulated which will provide maximum protection from the elements. Both the CV-425 and CV-510 power sources are tested at + 40°C and rated at 60% duty cycle. As a result of this rigorous testing and specifications, it allows these machines to operate and weld in any environment at a 100% duty cycle. Like all Lincoln machines the CV-425 and 510 are designed with the application in mind.
Potted and Encapsulated Printed Circuit Board controls in separate dust free compartment.
Different feeders for construction and shipyards, all with meters, with or without synergy or memory; just select the one of your choice.
Superb Arc Behaviour with Argon Mix and 100% CO2.
Electronic feedback system on the wire drive will guarantee consistent wire feed speed
Equipped with large diameter wheels push/pull bar and lifting eyes for full manoeuverability
Completed with an extensive set of features
Specifications
INPUT POWER - 230/400/3/50-60
RATED OUTPUT - 420A/35V@60% | 325A/30.3V@100%
INPUT CURRENT - 63/32/32A
OUTPUT RANGE - 10-420A
DIMENSIONS (H X W X D) - 880 mm x 696 mm x 1020 mm
NET WEIGHT - 152 kg
Power Source - K14080-1A
Wire Feeders - K14030-1W
10m Interconnection Cable (Air Cooled) - K10347-PG-10M
Powercraft Gun No4 - 94000604
Lincoln Flowmeter Regulator - LE250-RG002
Suitable Guns
K10413-36PHD-3M
K10413-36PHD-4M
K10413-36PHD-4M
Part Number/SKU: K14080-1AG
* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
SKU | K14080-1AG |
Brand | Lincoln |
Shipping Weight | 160.0000kg |
Shipping Width | 1.200m |
Shipping Height | 1.000m |
Shipping Length | 1.000m |
Shipping Cubic | 1.200000000m3 |
Unit Of Measure | ea |
