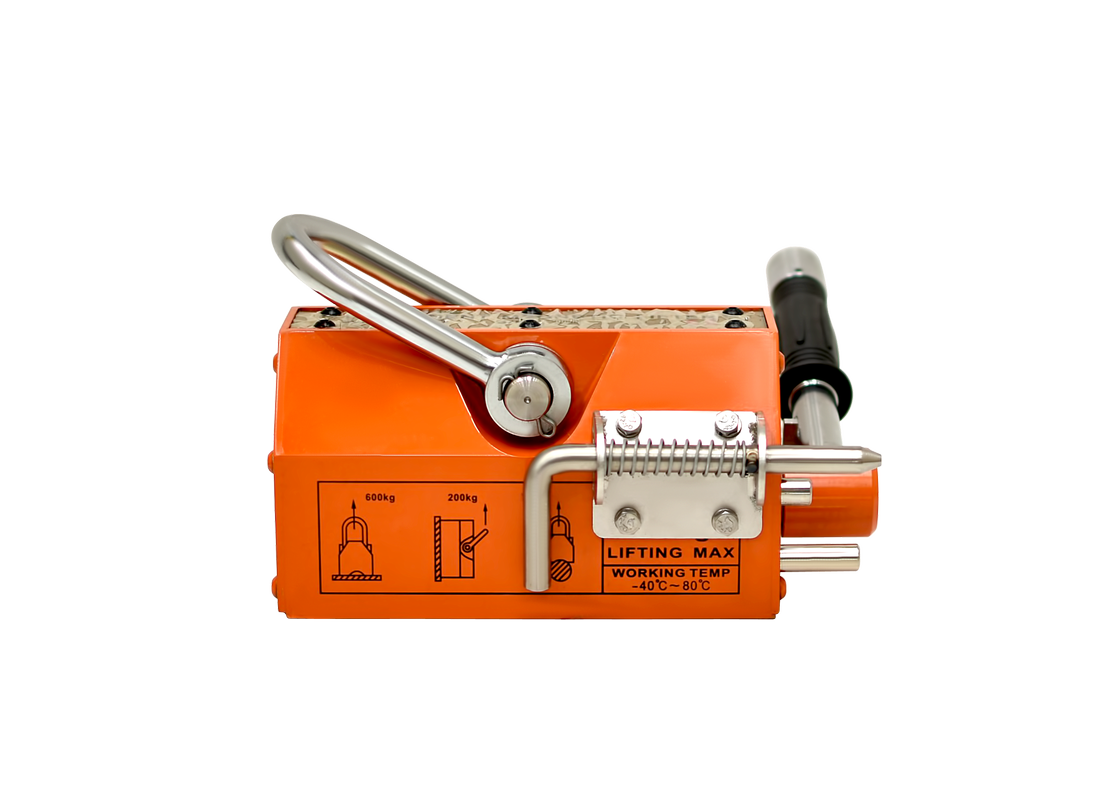

Lifting Magnet Pro-Lift 600 Kg PL600

Benefits

Substantially cuts production time
Commonly used for handling steel sections, beams & steel components.
Useful for transfer of steel sections on & off trucks, cutting beds, guillotines and saws.
Simple, safe and efficient.
Lifting of plates, profiles, beams, steel slabs and round sections.

Features:

Comes with an additional Safety Latch.
Load Test Certificate available on request.
3:1 safety ratio built in for optimum safety.
Lifting capacities ranging from 100kg to 6,000kg (6 tonne)

SPECIFICATIONS

Max. Break Away	1800 Kg
Safe Working Load	600 Kg
Full Saturation Thickness	50 mm
Maximum Thickness for De- Stock	50 mm
Net Weight	20 Kg
Height - Less Shackle	116 mm
Magnet Foot Print ( L x B)	120 mm x 216 mm
Handle Length - R	220 mm

Fitted Safety Latch Included.
Complies with Lifting Devices
Standard AS 4991-2004. Section 6.2.1
Load Control.

Material Thickness - SWL at 3:1 in KG
50mm - 600 kg
40mm - 540 kg
30mm - 420 kg
20mm - 300 kg
15mm - 210 kg
10mm - 150 kg

Part Number/SKU: PL600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	PL600
Brand	MSA
Shipping Weight	22.0000kg
Shipping Width	0.400m
Shipping Height	0.400m
Shipping Length	0.500m
Shipping Cubic	0.080000000m3
Unit Of Measure	ea
