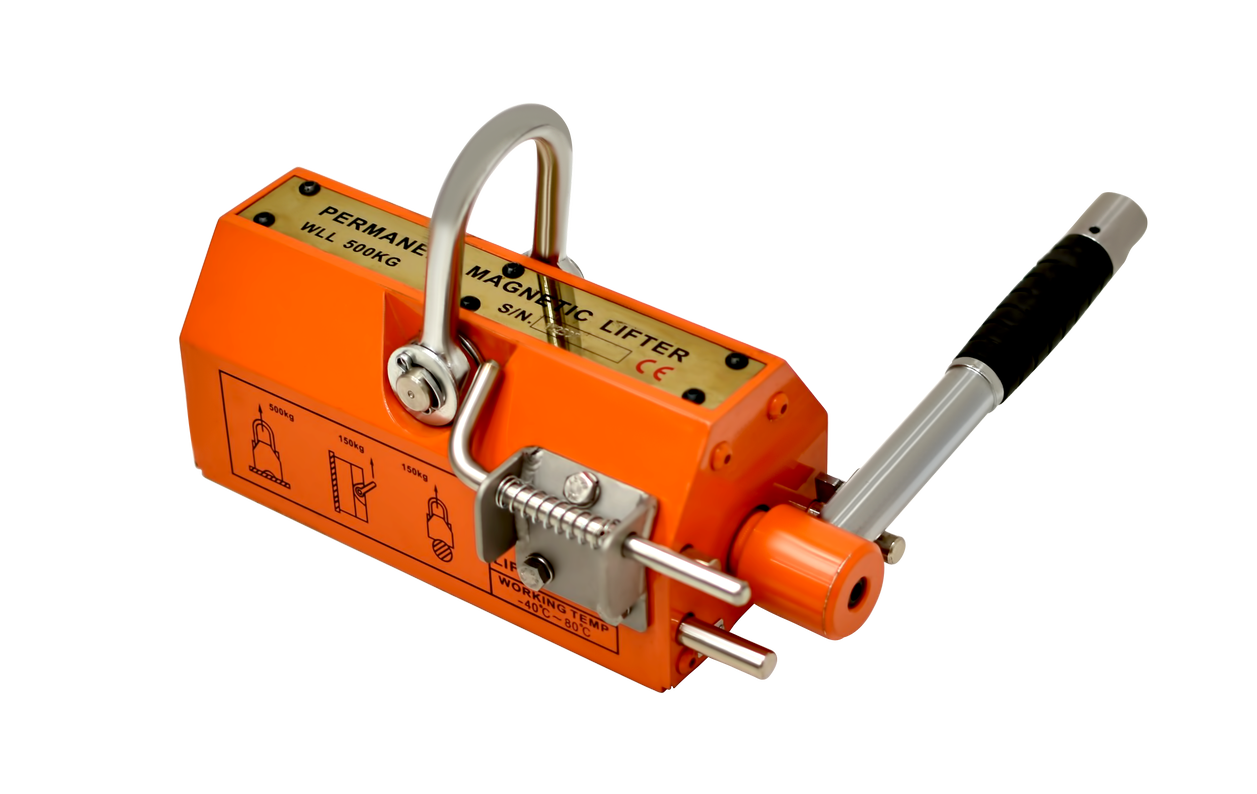

Lifting Magnet Pro-Lift 500 Kg PL500

Benefits

Substantially cuts production time
Commonly used for handling steel sections, beams & steel components.
Useful for transfer of steel sections on & off trucks, cutting beds, guillotines and saws.
Simple, safe and efficient.
Lifting of plates, profiles, beams, steel slabs and round sections.

Features:

Comes with an additional Safety Latch.
Load Test Certificate available on request.
3:1 safety ratio built in for optimum safety.
Lifting capacities ranging from 100kg to 6,000kg (6 tonne)

SPECIFICATIONS

Max. Break Away	1500 Kg
Safe Working Load	500 Kg
Full Saturation Thickness	40 mm
Maximum Thickness for De- Stock	40 mm
Net Weight	12.5 Kg
Height - Less Shackle	93 mm
Magnet Foot Print ( L x B)	92 mm x 210 mm
Handle Length - R	210 mm

Fitted Safety Latch Included.
Complies with Lifting Devices
Standard AS 4991-2004. Section 6.2.1
Load Control.

Material Thickness - SWL at 3:1 in KG
40 mm - 500 kg
30 mm - 450 kg
20 mm - 350 kg
15 mm - 310 kg

10mm - 240 kg

Part Number/SKU: PL500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	PL500
Brand	MSA
Shipping Weight	13.0000kg
Shipping Width	0.400m
Shipping Height	0.500m
Shipping Length	0.500m
Shipping Cubic	0.100000000m3
Unit Of Measure	ea
