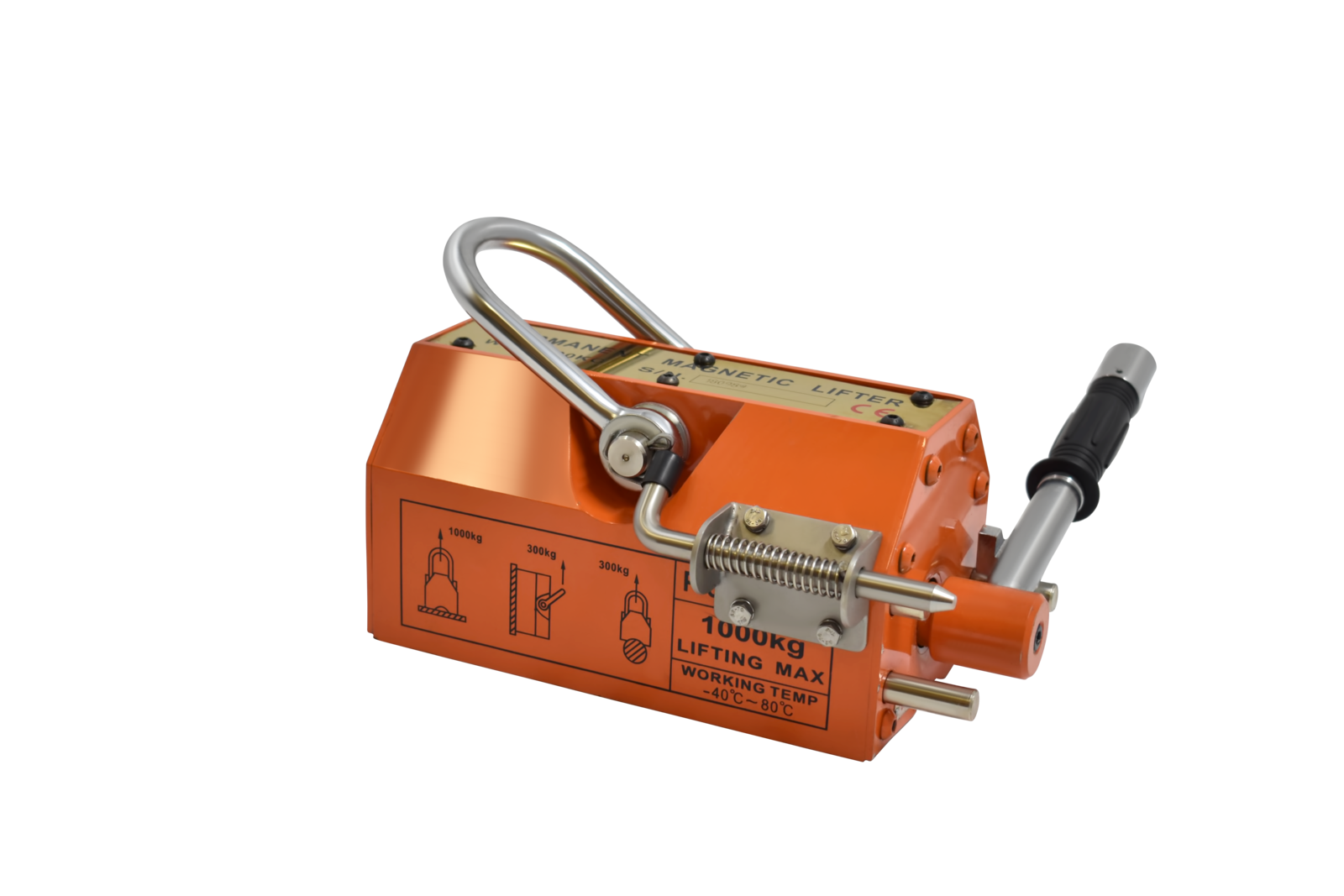

Lifting Magnet Pro-Lift 1000 Kg PL1000

Benefits

Substantially cuts production time
Commonly used for handling steel sections, beams & steel components.
Useful for transfer of steel sections on & off trucks, cutting beds, guillotines and saws.
Simple, safe and efficient.
Lifting of plates, profiles, beams, steel slabs and round sections.

Features:

Comes with an additional Safety Latch.
Load Test Certificate available on request.
3:1 safety ratio built in for optimum safety.
Lifting capacities ranging from 100kg to 6,000kg (6 tonne)

SPECIFICATIONS

 Max. Break Away

 3000 Kg

 Safe Working Load

 1000 Kg

 Full Saturation Thickness

 60 mm

 Maximum Thickness for De- Stock

 60 mm

 Net Weight

 53 Kg

 Height - Less Shackle

 136 mm

 Magnet Foot Print ( L x B)

 152 mm x 264 mm

 Handle Length - R

 260 mm

Fitted Safety Latch Included.
Complies with Lifting Devices
Standard AS 4991-2004. Section 6.2.1
Load Control.

Material Thickness    SWL at 3:1 in KG
60 mm - 1000 kg
50 mm - 900 kg
40 mm -  750 kg
30 mm -  550 kg
20 mm - 350 kg
15 mm -  250 kg
10 mm -  180 kg


Part Number/SKU: PL1000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU PL1000
Brand MSA
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.400m
Shipping Length 0.400m
Shipping Cubic 0.048000000m3
Unit Of Measure ea
