Lever Hoist, Load Limited, Mini 500 Kg, 1.5 Metre Lift ITM TM9040-00501

FEATURES

  • 500kg Rated capacity
  • 1.5m Standard lift
  • 5mm Grade 80 chain
  • White colour coded to W.L.L. for safety
  • Load limited protection system
  • Automatic double pawl braking system
  • Hooks fitted with spring safety latches
  • Tested & certified to AS 1418.2

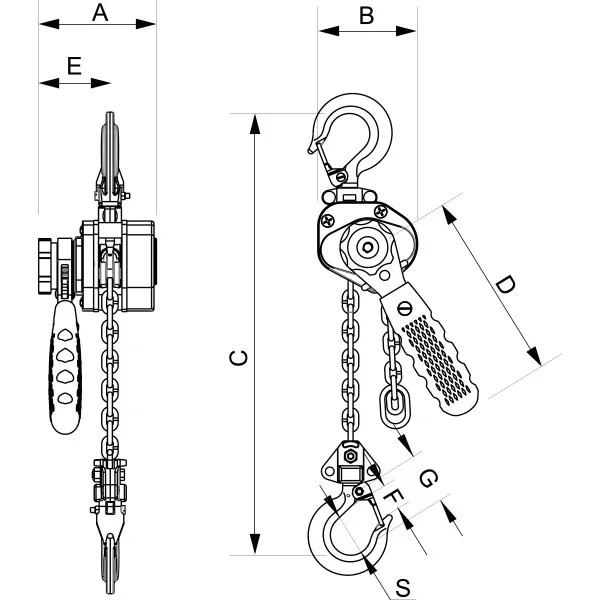

SPECIFICATIONS

  • Weight: 2.6kg
  • Dimension A: 98mm
  • Dimension B: 85mm
  • Dimension C: 270mm
  • Dimension D: 165mm
  • Dimension E: 60mm
  • Dimension F: 43mm
  • Dimension G: 23.5mm
  • Dimension S: 35.5mm

Part Number/SKU: TM9040-00501

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU TM9040-00501
Brand ITM
Shipping Weight 2.8000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
