Kemppi MasterTig 235 AC/DC Single Phase Tig Welder MT235ACDCGM

MasterTig 235 Ac/Dc sets new standards for weld quality, usability, and power efficiency in AC and DC TIG welding. Designed for professional welders, the MasterTig product family offers a choice of power variants up to 300 A. Its modular design philosophy allows you to build the specification that best meets your needs, including alternative control panels, wireless remote controls, and transport cart options.

Stylish, practical and robust, the MasterTig absorbs the knocks of everyday welding life. The compact-sized welding equipment is constructed from tough yet lightweight injection molded plastic, featuring impact bridge protection structures. Flexible and durable Flexlite TX TIG torches are readily equipped to fit MasterTig to maximize welding comfort.

SPECIFICATIONS

 Connection voltage 1~50/60 Hz   110 / 220 - 240 V
 Fuse   16 A
 Stick electrodes sizes   1.6mm - 5.0mm
 Recommended Generator Power   8 kVA
 Open circuit Voltage (average)   50 V
 Operating temperature   -20° - +40° C
 External dimensions L x W x H   544mm x 205mm x 443mm
 Weight (without accessories)   19.1 Kg
  Degree of protection   IP23S
 EMC Class    A
 Rated maximum output at 40 °C (240 V) 40% TIG  230A / 19.2 V
 Rated maximum output at 40 °C (240 V) 60% TIG   200 A / 18 V
 Rated maximum output at 40 °C (240 V) 100% TIG   170 A / 16.8 V
 Range of output (240 ) TIG   3 A  / 1V - 230 A / 31 V

What's Included ?

  • MasterTig 235 AC/DC Power Source\
  • MTP35X Control Panel
  • Flexlite TX225G8 8m Gas Cooled Tig Torch
  • 5m Earth Lead

FEATURES

Double Pulse

Double Pulse combines alternative pulse cycles for 30% faster welding speed and 20% reduced heat input. Lowering distortion levels and weld costs, Double Pulse is ideal for DC hand welding and mechanized applications and offers superb weld seam appearance                                                                                                                                                 Double Pulse combines alternative pulse cycles for 30% faster welding speed and 20% reduced heat input. Lowering distortion levels and weld costs, Double Pulse is ideal for DC hand welding and mechanized applications and offers superb weld seam appearance

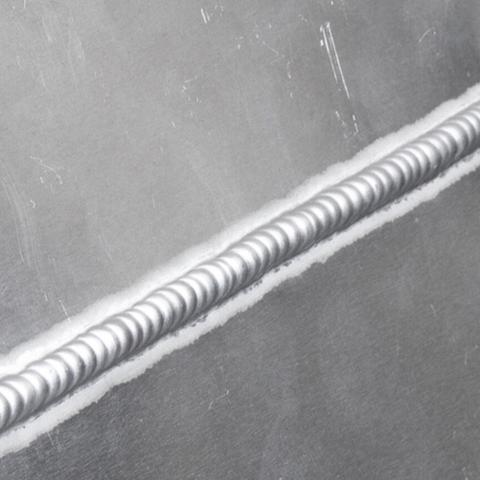

OPTIMA AC

Optima AC is a customized AC TIG waveform that combines the best of the traditional sine and square waveforms – and adds a touch of magic for the optimal AC welding experience. Depending on the application, you’re free to choose either sine, square, or the quiet one: Optima AC.

MICROTACK

MicroTack offers fast and accurate tacking with minimum heat input in both DC and AC TIG welding. Ideal for multiple, repetitive tacking on thin sheet applications, where a consistent and controlled appearance is paramount. MicroTack can be set between 1 to 5 repeat pulse cycles or continuous cycle mode. The welding current level is set independently and tharc cycle time selected between 1 to 200 ms

.

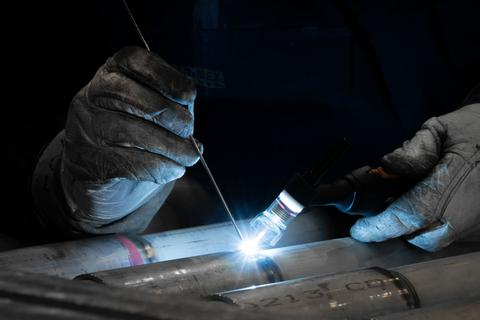

iTec

iTEC is engineered ignition technology for reliable arc starts. Particularly useful with long torch extensions for site welding or precise thin materials and low current applications, yoU can set the variable spark force energy


Part Number/SKU: MT235ACDCGM

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU MT235ACDCGM
Brand Kemppi
Shipping Weight 55.0000kg
Shipping Width 0.850m
Shipping Height 0.850m
Shipping Length 0.850m
Shipping Cubic 0.614125000m3
Unit Of Measure ea
