G80 Vehicle Chain Safety Hook Set 6mm Black Austlift 103506B

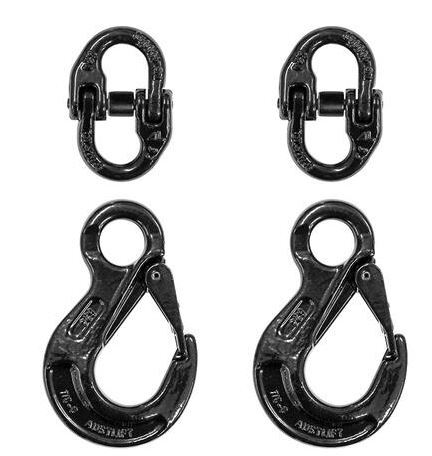

  • Contents: 2 Eye Sling Hooks and 2 Chain Connectors.
  • Conforms to AS3776-2015, AS4177.4 and ADR6202
  • Austlift Trailer Chains and Safety kits are CTA approved.

  The kits are available in three sizes, each with different working load limits(WLL), breaking forces, and chain size compatibility, ensuring that they meet the towing requirements for various Aggregate Trailer Masses(ATM).

6mm Kit ( Code: 103506):  Suitable for 8mm Trailer Chain

  • Tow Capacity: 2Ton (ATM-ST)
  • Breaking force: 4,480kg (4 to 1 safety factor as per AS3775.2)
  • Chain breaking strength: 2,406.53kg (8mm as per AS4177)
  • Shackle standards: 500kg WLL, breaking at 2.95t

8mm Kit (Code: 103508): Suitable for 10mm and 13mm Trailer Chain

  • Tow Capacity: 4Ton (ATM-4T)
  • Breaking force: 8,000kg (4 to 1 safety factor as per AS3775.2)
  • Chain breaking strength: 3,762.75kg (10mm) and 5,261.73kg (13mm as per AS4177)
  • Shackle standards: 750kg WLL, breaking at 4.4t

10mm Kit (Code: 103510): Suitable for 13mm Trailer Chain

  • Tow Capacity: 6.4Ton (ATM-6.4T)
  • Breaking force: 12,800kg (4 to 1 safety factor as per AS3775.2)
  • Chain breaking strength: 5,2617.73kg (13mm as per AS4177)
  • Shackle standards for Grade 30 trailer chain: 1000kg WLL, breaking at 5.95t
  • On 13mm/16mm Grade 80 or Grade 100 chain for trailers- Atm 3500kg to 6400kg
  • On standard 13mm grade 30 Transport chain - ATM 3000kg to 3500kg

Part Number/SKU: 103506B

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 103506B
Brand Austlift
Shipping Weight 1.0000kg
Shipping Width 0.170m
Shipping Height 0.100m
Shipping Length 0.270m
Shipping Cubic 0.004590000m3
Unit Of Measure ea
