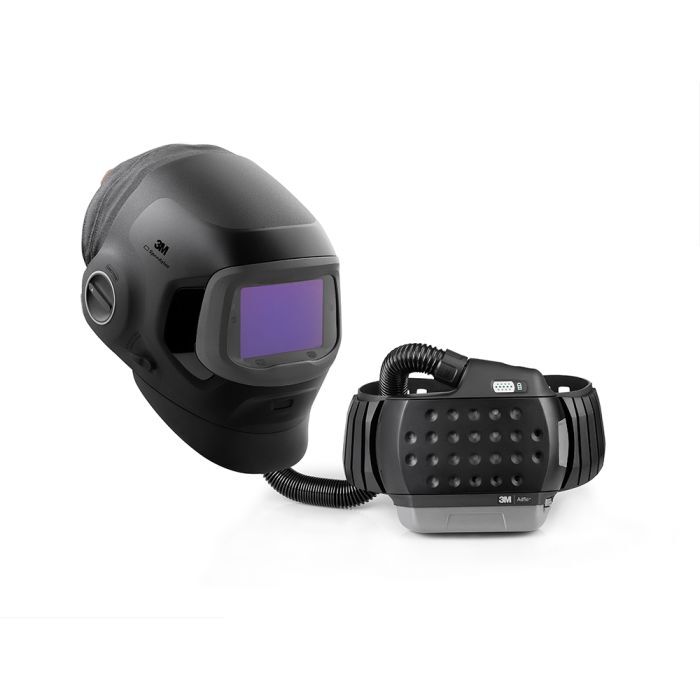

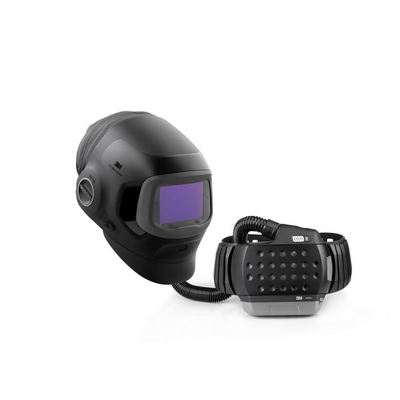

G5-03VC Pro Air with Heavy-Duty Adflo PAPR 3M Speedglas 637730


FEATURES:

• Welding PPE Manufactured in Sweden:  All Speedglas welding helmets and auto-darkening lenses are made in Sweden, with market-leading technology and new-to-world features.

• Variable Colour Welding Lens: Designed for greater contrast, visibility, and comfort, the G5-03VC welding lens lets you select between cool, warm, and natural color tones in the dark. This feature provides increased versatility when switching between welding applications and lighting conditions.

• Heavy-Duty Welding Lens:  Designed for welders working at high amperages, the G5-03 VC auto welding lens offers an extra dark shade 14 when performing heavy-duty welding applications.

• Bluetooth® Memory Modes:  Adjust your welding lens settings from the palm of your hand, with new Bluetooth® lens technology. Welders can switch between dark shades, and variable colour tones and program pre-set memory modes, via the 3M Connected Equipment app.

• Weld, Cut, Grind & Tack: Featuring a light shade of 3 and dark shades 5, 8-14, the G5-03 VC lens offers excellent versatility and is suitable for all common welding applications including MIG/MAG, MMAW, and TIG welding. New TAP technology allows you to easily switch between welding, cutting, and grinding modes by simply tapping the outside of the helmet.
• True-View Welding Lens: Speedglas True View lens technology offers market-leading color, contrast, and visibility, giving you greater control over your weld pool.
• Reliable Switching and Arc Detection:  Thanks to its advanced photo sensors, the G5-03 VC auto-darkening lens offers reliable switching and can detect a welding arc as low as 1 amp. With Auto-On technology, your welding helmet is instantly ready to weld as soon as you pick it up, retaining your last-used welding lens settings.
• Task Light Designed for Welding:  An optional helmet-mounted task light is available, for welders working in low-light environments. Powered by the Adflo PAPR battery, the task light casts a wide light on your workspace, with even light distribution and adjustable light intensity.
• Extended Head & Neck Protectors:  Customize your welding protection to suit your environment. The G5-03 Pro Air is compatible with a range of leather and fabric head and neck covers, to provide heavy-duty protection against splatter and sparks.

• Customisable Head Harness: The G5-03 Pro head harness is completely adjustable for a personalized fit. Designed for extended use in hard-wearing environments, the head harness evenly distributes weight to avoid fatigue and pressure points. An extra-large back pad provides additional support at the rear of the harness.

• Extra-Large Viewing Area with SideWindows:  Weld with enhanced vision, color, and clarity! A huge 73 x 109mm welding lens provides expansive views of your weld pool, while Speedglas SideWindows offer enhanced peripheral vision - giving you one of the largest welding lens viewing areas on the market!

• Exclusive Speedglas TAP Technology:  The new TAP function allows you to seamlessly switch between welding, grinding, and cutting modes by tapping the exterior of your welding helmet. This allows you to change between welding lens settings while keeping your respiratory, eye, and face protection in place.

• Effective Welding Fume Protection:  With an advanced comfort face seal that follows the contours of the helmet and face, the G5-03 Pro Air welding helmet creates an effective positive pressure respiratory seal. Filtered air is delivered directly to the breathing zone of the welder, for maximum comfort and protection.

• AS/NZ Standards Compliant:  Compliant with Australian and New Zealand Standard AS/NZS1716 (respiratory protection), AS/NZS1337.1 (high impact face protection) & AS/NZS1338.1 (eye protection).

The Heavy Duty Adflo Powered Air Purifying Respirator (PAPR)

• HD Battery with One-Hour Rapid Charge:  Heavy-duty welders require robust protection. To that end, the new heavy-duty Adflo battery offers a run-time of approximately 12 hours depending on conditions (4 hours longer than the standard Adflo battery). Rapid charge functionality means the battery can charge from 0-80% in just one hour, meaning you're ready to weld sooner!
• Industry-Leading Respiratory Protection:  Since its launch, the 3M™ Adflo™ powered air respirator has become synonymous with welders' respiratory protection. The system is designed to meet the specific needs of welders.
• High Level of Protection:  The Adflo respirator complies with Australian and New Zealand Standard AS/NZS 1716 for powered air respirators and offers a Required Minimum Protection Factor (RMPF) of 50 for mechanically and thermally generated particles.
• Intuitive Airflow Design:  The unique airflow design ensures that filtered air is distributed uniformly across the welder’s entire breathing zone. The advanced turbo unit maintains a constant airflow rate, while the diffuser evenly disperses the air for optimal comfort.
• Mobile, Light Weight Welding Respirator: Powered air respiratory protection that goes where you go. The Adflo welding PAPR is slim, lightweight, and belt-mounted, allowing full mobility as you move around the workplace. The new Li-ion Adflo respirator is over 15% lighter than the older style version with a Ni-MH (black) battery.
• Powerful Protection Against Welding Fume & Gases:  The Adflo PAPR offers effective particulate protection against welding fumes and is also available with stackable gas filters if required. Battery and filter indicators assist the user in knowing when charging and filter changes are required.
• Self-Adjusting Breathing Hose:  Designed for simple connection, the quick-release breathing tube allows for one-handed connection and release. The hose is self-adjusting, meaning it is always kept close to the welder's back and away from getting caught on surrounding objects.
• Increased Airflow for Hot, Humid Jobs:  Regardless of the battery charge or the particle loading of the filter, the intelligent turbo unit maintains a steady airflow rate of 170 liters per minute. However, for welding in hot and humid environments, you can raise the airflow to 200 liters per minute to decrease fatigue and improve comfort.

SPECIFICATIONS:

• Relevant Welding Helmet Standards:  Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact), Respiratory Protection - AS/NZS1716
• Speedglas TrueView Welding Lens: Yes
• Variable Colour Technology: Yes
• Stick Welding: Yes
• MIG Welding: Yes
• TIG Welding: Yes (industry-leading detection down to 1 Amp)
• Grinding Feature: TAP Technology (shade 3)
• Memory Mode (Set-and-Forget): Yes
• SideWindow Peripheral Vision:  Yes
• Hidden Arc Mode: Yes
• Welding Lens Viewing area:  73 x 109mm + SideWindows
• Variable Dark Shades : Shade 5, 8-14
• Light State: TrueView Shade 3
• UV Protection:  Shade 14 (permanent)
• Switching time, light-dark: 0.1 ms (+23 C)
• Delay (switching time, dark-light):  50-1300 ms
• Blue-Tooth Enabled: Yes
• Optional Task Light: Yes
• Comfort Exhaust Vents: No (positive pressure seal for powered air)
• Head Harness:  New G5-03 Pro Head Harness
• Safety Helmet: No
• Required minimum protection factor:  50
• Airflow Level: 170 & 200 l/min
• Adjustable Air Control:  Yes
• Adflo Battery Run Time: 12 hours
• Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete
• Welding Helmet Model: Speedglas G5-03 Pro Air

Part Number/SKU: 637730

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
