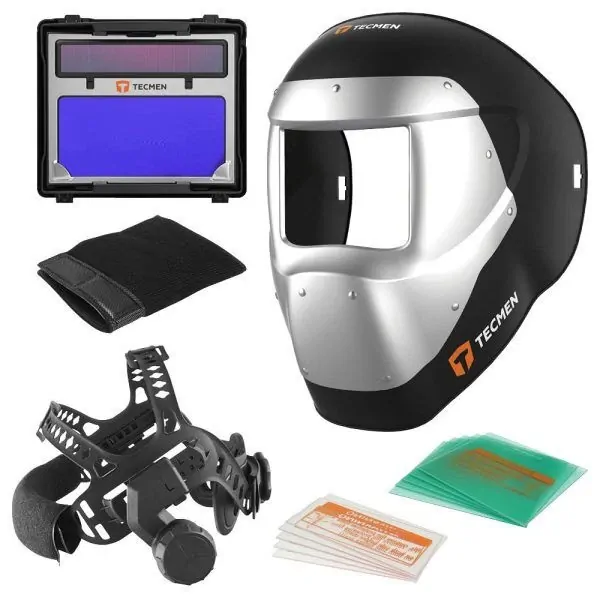

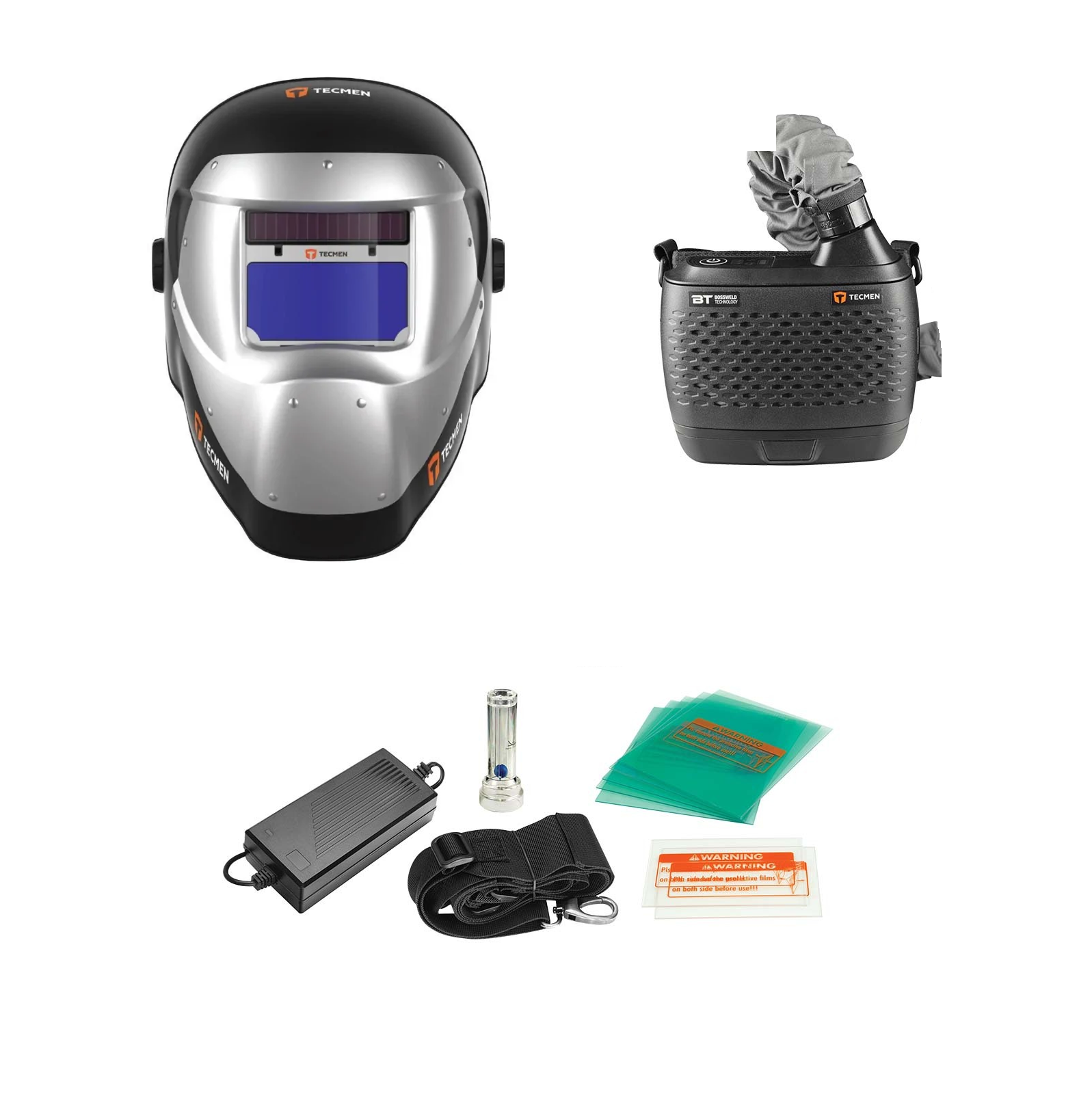

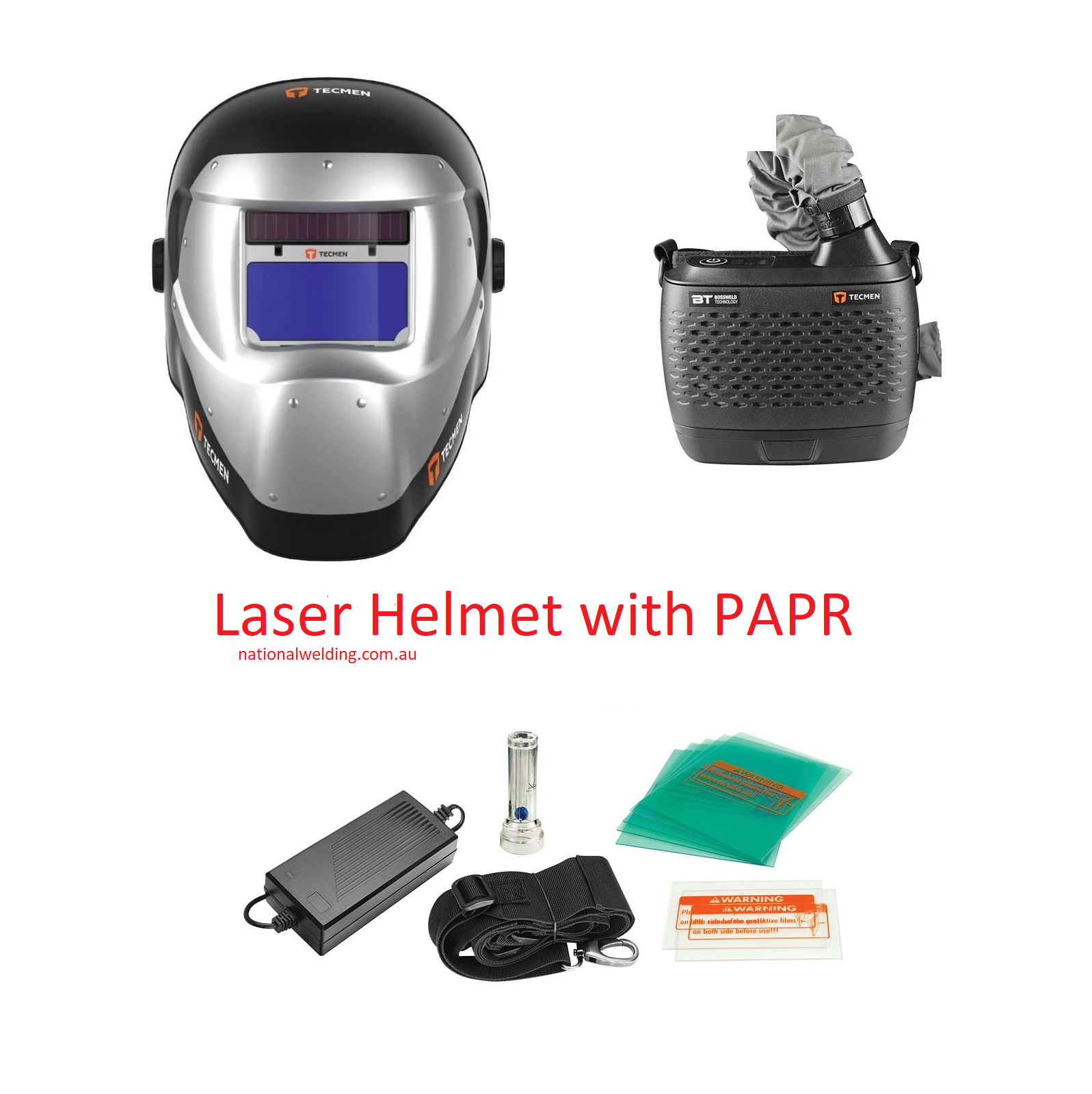

Freflow V1 PAPR With 100LW Respiratory Laser Welding Helmet Tecmen 703500

All-in-one integrated PAPR system for laser welding/cutting/cleaning. The 100LW helmet provides full protection against direct laser exposure, as well as reflection, scattering, diffraction, and divergence from the laser beam. Meanwhile, the FreFlow V1 blower unit delivers a stable airflow to users with clean air.

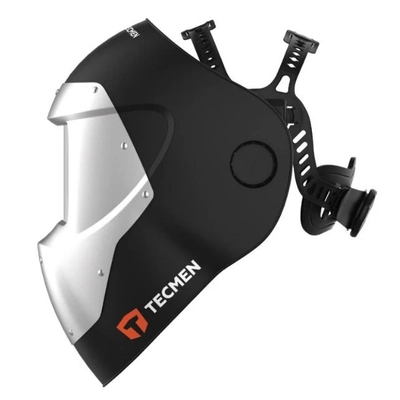

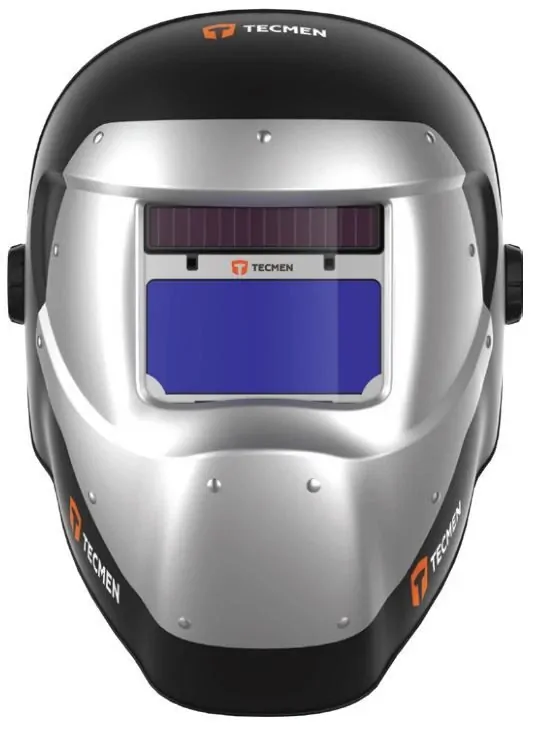

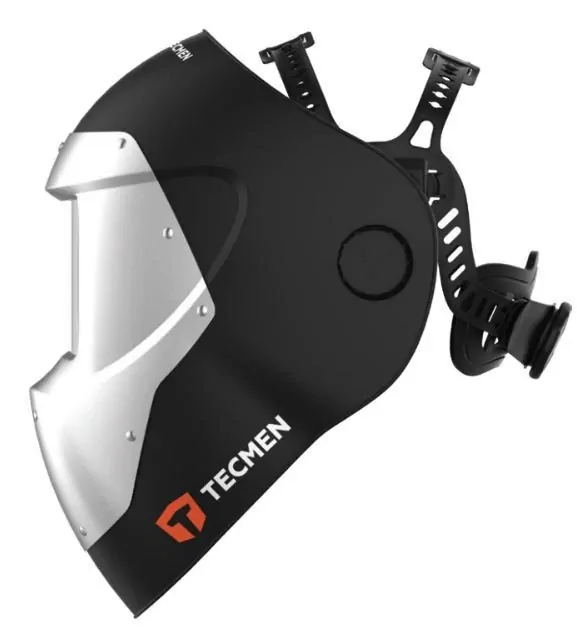

100LW Laser Welding helmet

ADF Model                            100LW

Optical Class                         1 / 1 / 1 / 2

Power On/Off                        Automatic On/Off

Light State                            Shade 2.0

Special Modes                     GRIND / CUT / MIX / DARK

Delay                                    0.1-1.0s,button control

Operating Temp.                 -10℃ to 55℃（14℉ to 131℉）

Helmet Material                   Special compound material

Optical Density(OD )           OD 8@1000-1100nm,OD 10+@1064nm

FreFlow V1 blower unit

Viewing Area                               96x46.5mm

Number of Sensors                     2

Dark State                                  4-8/8-12

Switching Speed                       1/25000s, from Light to Dart

Sensitivity Control                      Low-High,button control

UV/IR protection                        Up to Shade DIN 16 at all times

Storing Temp.                           -20℃ to 70℃（-4℉ to 158℉）

Laser Protection                      1000-1100 D LB7+ IR LB8

Approvals                               EN207, EN ISO 16321,EN12941 TH3

Part Number/SKU: 703500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
