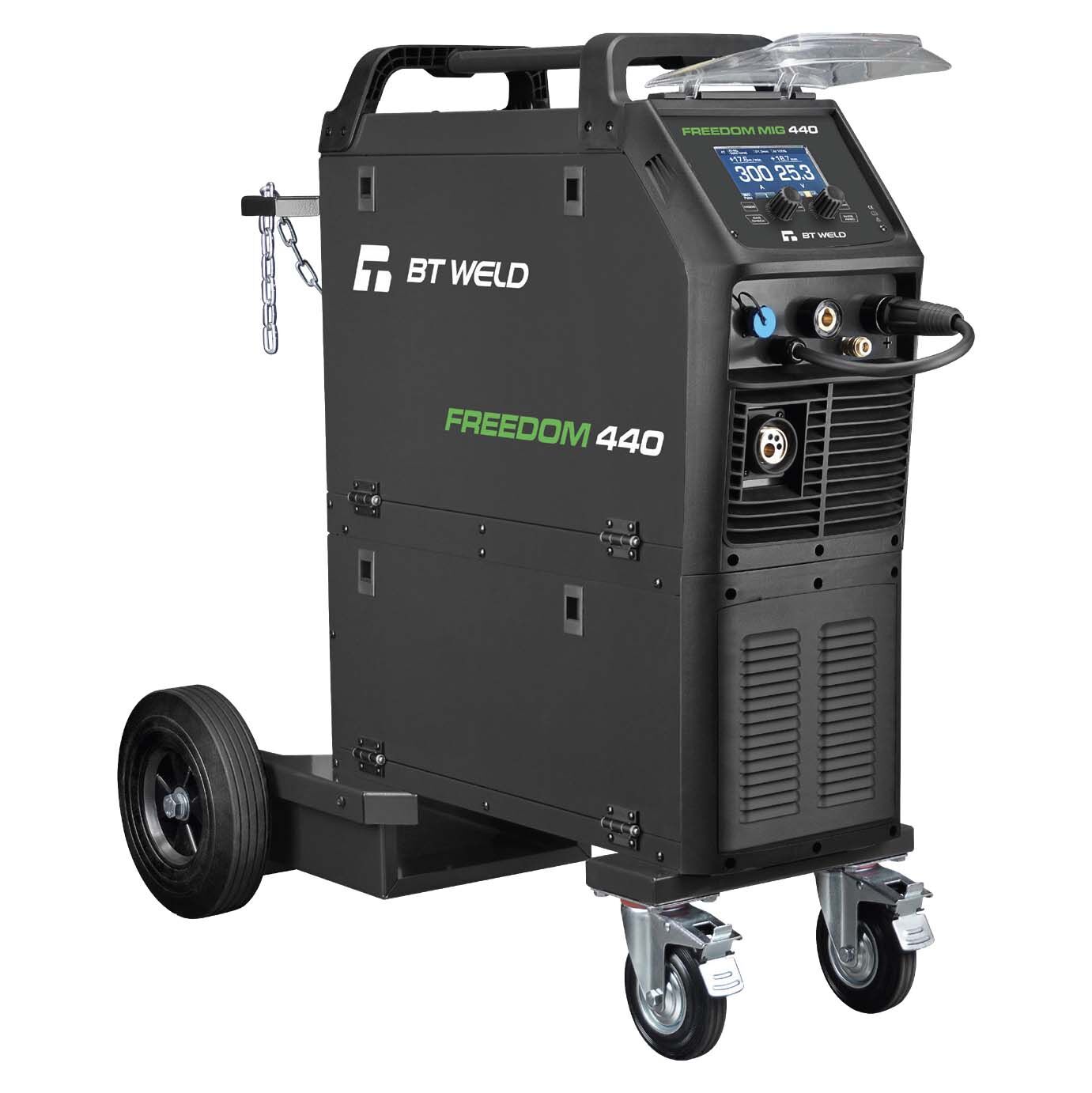

Freedom 440 BT Weld 659441

DESCRIPTION:

  • Duty Cycle: 40% @ 400A
  • Generator: 32 Kva
  • Plate Thickness: Max. 30mm
  • Material: Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 400A Output
  • 5" Colour LCD Screen
  • 2T/4T/Spot Weld
  • Suits D200 & D300 Spools
  • 4 Roll Wire Drive System
  • Tool Storage
  • 4-Wheel Trolley

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power 3 Phase 415V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min  40% @ 400A
 60% @ 330A
 100% @ 255A
  MIG TIG MMA
Effective Current (A) 20.0 14.9 19.8
Rated Input Current (A) 24.5 19.3 25.5
Rated Input Power (KW) 17.0 13.4 17.6
Welding Current Range (A) 30-400 10-400 10-400
Welding Voltage Range (V) 15.5-34 10.4-25.9 20.4-36.6
I Max (A) 24.5 19.3 25.5
I eff (A) 19.0 14.9 19.8
Wire Diameter Range 0.6 – 1.6mm
Electrode Diameter Range 1.6 – 5mm
Protection / Insulation Class IP21S / S
Power Factor / Efficiency 0.66 / 90.8%
Thermal Overload Yes
Dimensions L93 x W46 x H93 cm
Weight 58kg (A) / 62.6kg (W)
Warranty 3 Year
Part Number 659441

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM 440 Compact Inverter Welder 415V:  659441
  • BT Tool Storage:  -
  • BT 4 Wheel Trolley:  699577
  • Ergon BZ36 MIG Torch 4Mt:  92.ER.36.4
  • Twist Lock Electrode Holder 3Mt:  500044
  • Earth Clamp 300Amp 3Mt:  500060
  • Argon Twin Gauge Regulator:  400209T
  • Gas Hose 2Mt:  619000
  • Drive Roller 0.9/1.2mm V Groove (Fitted):  -
  • Drive Roller 1.2/1.6mm V Groove:  -

Part Number/SKU: 659441

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 659441
Brand BT Weld
Shipping Weight 58.0000kg
Shipping Width 0.460m
Shipping Height 0.930m
Shipping Length 0.930m
Shipping Cubic 0.397854000m3
Unit Of Measure ea
