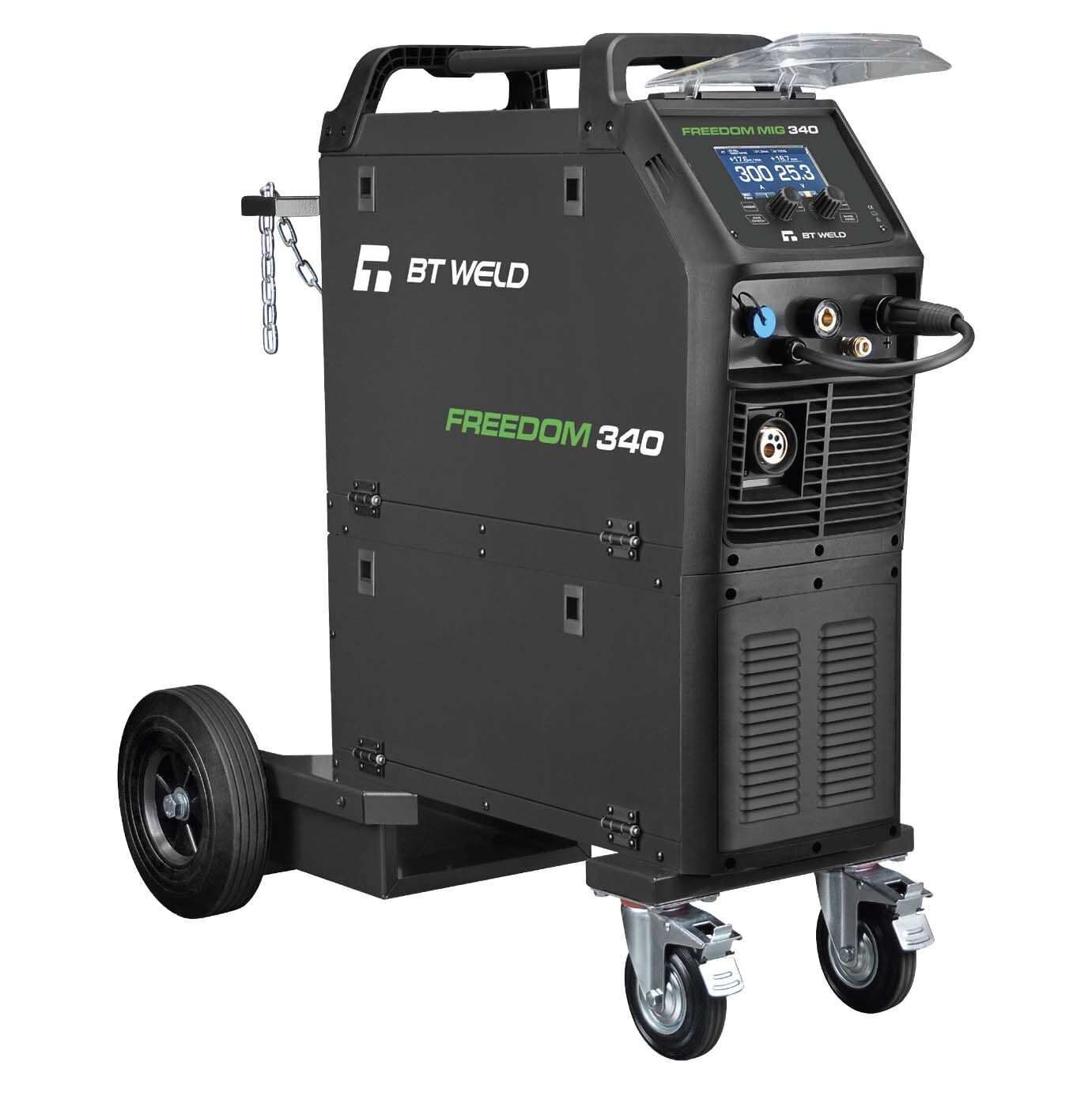

Freedom 340 MIG Synergic / Manual Compact Inverter welder 415V BT Weld 659341

DESCRIPTION:

  •  Duty Cycle: 40% @ 315A
  •  Generator: 20 Kva
  •  Plate Thickness: Max. 16mm
  •  Material: Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 315A Output
  • 5" Colour LCD Screen
  • 2T/4T/Spot Weld
  • Suits D200 & D300 Spools
  • 4 Roll Wire Drive System
  • Tool Storage
  • 4-Wheel Trolley

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power 3 Phase 415V 50-60 HZ +/-15%
  MIG TIG MMA
Duty Cycle @ 40˚C 10min 40% @ 315A
60% @ 245A
100% @ 200A		 40% @ 300A
60% @ 235A
100% @ 190A		 40% @ 250A
60% @ 195A
100% @ 160A
Effective Current (A) 14.2 10.8 11.4
Rated Input Current (A) 22.5 17 18
Rated Input Power (KW) 15.5 11.7 12.6
Welding Current Range (A) 20-300 10-300 10-300
Welding Voltage Range (V) 15-26.5 10.4-22 20.4-32
I Max (A) 22.5 17.0 18.5
I eff (A) 14.2 10.8 11.7
Wire Diameter Range 0.6-1.6mm
Electrode Diameter Range 1.6-5mm
Protection / Insulation Class IP21S/S
Power Factor / Efficiency 0.99/85.8%
Thermal Overload YES
Dimensions/Weight L72 x W26 x H49 cm / 28.5kg
Weight 28kg (A) / 30.5kg (W)
Warranty 3 Year
Part Number 659341

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM 440 Compact Inverter Welder 415V:  659341
  • BT Tool Storage:  -
  • BT 4 Wheel Trolley:  699577
  • Ergon BZ36 MIG Torch 4Mt:   92.ER.36.4
  • Twist Lock Electrode Holder 3Mt:  500044
  • Earth Clamp 300Amp 3Mt:  500060
  • Argon Twin Gauge Regulator:  400209T
  • Gas Hose 2Mt:  619000
  • Drive Roller 0.9/1.2mm V Groove (Fitted)
  • Drive Roller 1.2/1.6mm V Groove

Part Number/SKU: 659341

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 659341
Brand BT Weld
Shipping Weight 30.5000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.800m
Shipping Cubic 0.198000000m3
Unit Of Measure ea
