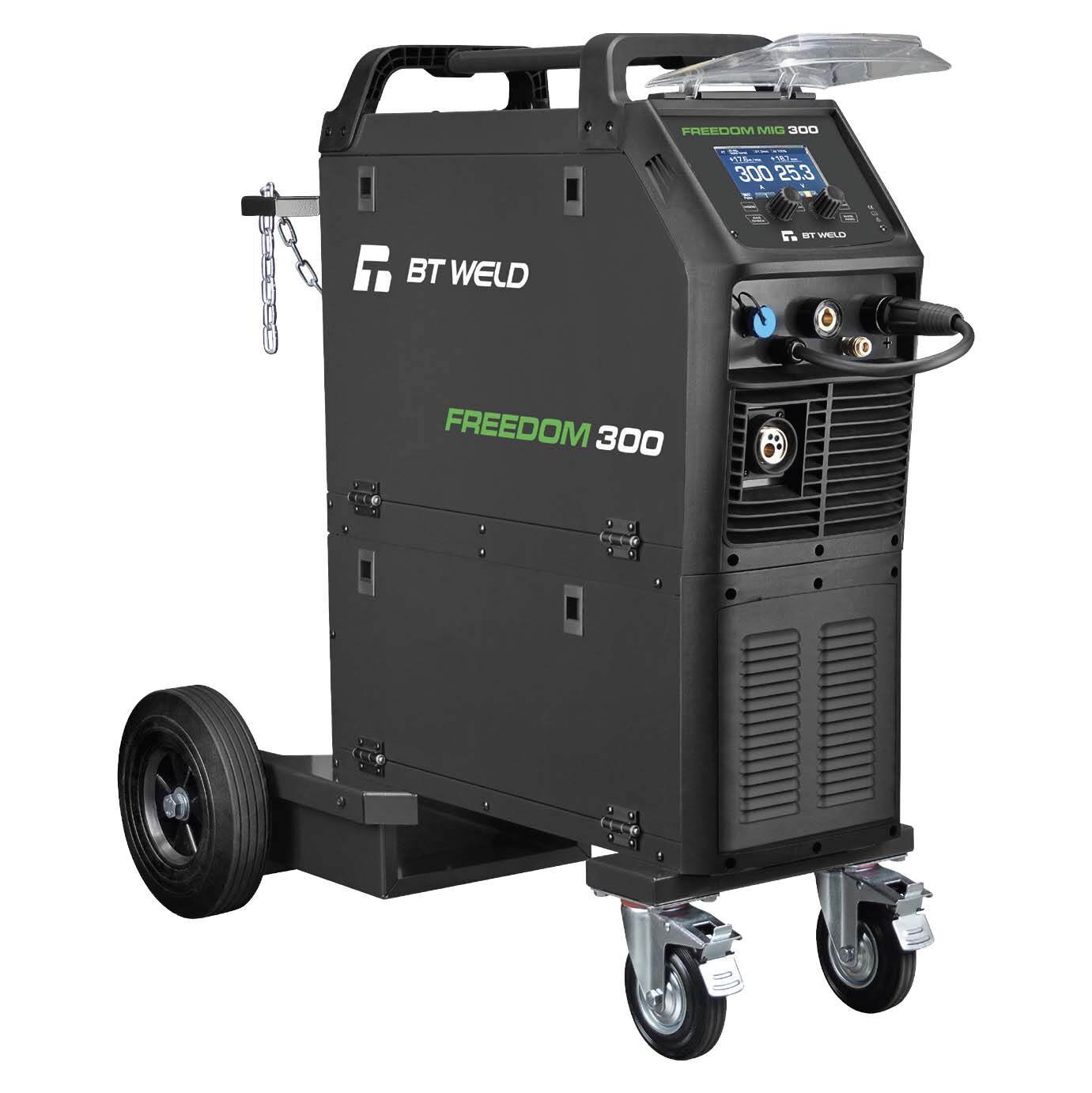

Freedom 300 MIG Synergic / Manual BT Weld 659301

DESCRIPTION:

  •  Duty Cycle: 40% @ 300A
  •  Generator: 32 Kva
  •  Plate Thickness: Max. 30mm
  •  Material: Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 300A Output
  • 5" Colour LCD Screen
  • 2T/4T/Spot Weld
  • Suits D200 & D300 Spools
  • 4 Roll Wire Drive System
  • Tool Storage
  • 4-Wheel Trolley

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min 40% @ 300A
60% @ 245A
100% @ 190A		 40% @ 250A
 60% @ 205A
100% @ 160A
                                                  MIG     TIG    MMA
Effective Current (A) 42 33.2 35.1
Rated Input Current (A) 66.2 52.5 55.5
Rated Input Power (KW) 15.2 12 12.8
Welding Current Range (A) 30-300 10-300 10-250
Welding Voltage Range (V) 15.5-29.8 10.4-22 20.4-30
I Max (A) 66.0 52.5 55.5
I eff (A) 41.7 33.2 35.1
Wire Diameter Range 0.8 – 1.6mm
Electrode Diameter Range 2.5 – 5mm
Protection / Insulation Class IP21S / S
Power Factor / Efficiency 0.66 / 86.6%
Thermal Overload Yes
Dimensions L93 x W46 x H93 cm
Weight 59kg
Part Number 659301

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM 300 Compact Inverter Welder 240V:  659301
  • BT Tool Storage:  -
  • BT 4 Wheel Trolley:  699577
  • Ergon BZ36 MIG Torch 4Mt:  92.ER.36.4
  • Twist Lock Electrode Holder 3Mt:  500044
  • Earth Clamp 300Amp 3Mt:  500060
  • Twin Gauge Regulator:  400209T
  • Gas Hose 2Mt:  619000
  • Drive Roller 0.9/1.2mm V Groove (Fitted):
  • Drive Roller 1.2/1.6mm V Groove:

Part Number/SKU: 659301

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 659301
Brand BT Weld
Shipping Weight 75.0000kg
Shipping Width 0.500m
Shipping Height 1.000m
Shipping Length 1.200m
Shipping Cubic 0.600000000m3
Unit Of Measure ea
