Freedom 200 PFC MIG Synergic / Manual Inverter Welder 240V BT Weld 659200

DESCRIPTION:

  •  Duty Cycle: 20% @ 200A
  •  Generator: 12.5 Kva
  •  Plate Thickness: Max. 12mm
  •  Material:  Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 200A Output
  • 5" Colour LCD Screen
  • 3-in-1 Processes
  • 2T/4T/Spot Weld
  • Suits D100 & D200 Spools
  • Weld Parameter Storage
  • PFC

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power  1 Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min 60% @200A
100% @155A
    MIG            TIG           MMA
Effective Current (A) 19.6 15.1 22.3
Rated Input Current (A) 25.3 19.5 28.8
Rated Input Power (KW) 6.2 4.9 7.0
Welding Current Range (A) 30-200 10-200 10-200
Welding Voltage Range (V) 15.5-24 10.4-18 20.4-28
I Max (A) 25.3 19.5 28.8
I eff (A) 19.6 15.1 22.3
Wire Diameter Range 0.8 – 1.6mm
Electrode Diameter Range 2.5 – 5mm
Protection / Insulation Class IP21S / S
Power Factor / Efficiency 0.99 / 85%
Thermal Overload Yes
Dimensions  L61 x W24 x H42 cm
Weight 19.4 kg
Warranty 3 Year
Part Number 659200

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM 200 Inverter Welder 240V:  659200
  •  Ergon BZ24 MIG Torch 4Mt:  92.ER.24.4
  •  Twist Lock Electrode Holder 3M.: t 500044
  •  Earth Clamp 200Amp 3Mt:  500059
  •  Argon Twin Gauge Regulator:  400209T
  •  Quick Connect Gas Hose 2Mt:  619000
  • Drive Roller 0.8/0.9mm V Groove (Fitted)
  • Drive Roller 0.8/0.9mm Knurled Groove Spare

Part Number/SKU: 659200

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 659200
Brand BT Weld
Shipping Weight 22.0000kg
Shipping Width 0.350m
Shipping Height 0.450m
Shipping Length 0.650m
Shipping Cubic 0.102375000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review


Freedom 200 PFC MIG Synergic / Manual Inverter Welder 240V BT Weld 659200

DESCRIPTION:

  •  Duty Cycle: 20% @ 200A
  •  Generator: 12.5 Kva
  •  Plate Thickness: Max. 12mm
  •  Material:  Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)

FEATURES:

  • 200A Output
  • 5" Colour LCD Screen
  • 3-in-1 Processes
  • 2T/4T/Spot Weld
  • Suits D100 & D200 Spools
  • Weld Parameter Storage
  • PFC

PROCESS:

  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power  1 Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40˚C 10min 60% @200A
100% @155A
    MIG            TIG           MMA
Effective Current (A) 19.6 15.1 22.3
Rated Input Current (A) 25.3 19.5 28.8
Rated Input Power (KW) 6.2 4.9 7.0
Welding Current Range (A) 30-200 10-200 10-200
Welding Voltage Range (V) 15.5-24 10.4-18 20.4-28
I Max (A) 25.3 19.5 28.8
I eff (A) 19.6 15.1 22.3
Wire Diameter Range 0.8 – 1.6mm
Electrode Diameter Range 2.5 – 5mm
Protection / Insulation Class IP21S / S
Power Factor / Efficiency 0.99 / 85%
Thermal Overload Yes
Dimensions  L61 x W24 x H42 cm
Weight 19.4 kg
Warranty 3 Year
Part Number 659200

STANDARD PACKAGE INCLUSIONS:

  • BT FREEDOM 200 Inverter Welder 240V:  659200
  •  Ergon BZ24 MIG Torch 4Mt:  92.ER.24.4
  •  Twist Lock Electrode Holder 3M.: t 500044
  •  Earth Clamp 200Amp 3Mt:  500059
  •  Argon Twin Gauge Regulator:  400209T
  •  Quick Connect Gas Hose 2Mt:  619000
  • Drive Roller 0.8/0.9mm V Groove (Fitted)
  • Drive Roller 0.8/0.9mm Knurled Groove Spare
SKU 659200
Brand BT Weld
Shipping Weight 22.0000kg
Shipping Width 0.350m
Shipping Height 0.450m
Shipping Length 0.650m
Shipping Cubic 0.102375000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review

Others Also Bought


Silver Series Annular Cutter 4 Piece Set Holemaker ASSET-Z

Silver Series Annular Cutter 4 Piece Set Holemaker

Part No: ASSET-Z

$235.00
Countersink 3 Piece Flute Set 90 Degree Holemaker STSET-05

Countersink 3 Piece Flute Set 90 Degree Holemaker

Part No: STSET-05

$68.00
Handheld Laser Welder 1500W Laser NL1500

Handheld Laser Welder 1500W Laser NL1500

Part No: NL1500

$8,800.00
Fume Extraction 24 Style Mig Torch 4mt BT Weld 92.FE.24.4

Fume Extraction 24 Style Mig Torch 4mt BT Weld 92.

Part No: 92.FE.24.4

$560.00
Artisan TIG 220 AC/DC Pulse HF 240V BT Weld 652220

Artisan TIG 220 AC/DC Pulse HF 240V BT Weld 652220

Part No: 652220

$1,995.00
X4 Pro MSTA 235 Multi Process Welder 240V BT Weld 659235

X4 Pro MSTA 235 Multi Process Welder 240V BT Weld

Part No: 659235

$2,450.00

More From This Category


Freedom 200 PFC MIG Synergic / Manual Inverter Welder 240V BT Weld 659200

Freedom 200 PFC MIG Synergic / Manual Inverter Wel

Part No: 659200

$1,950.00

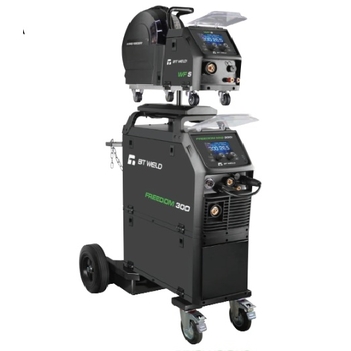

Freedom 300 Compact MIG Synergic / Manual Inverter Welder 240V BT Weld 659301

Freedom 300 Compact MIG Synergic / Manual Inverter

Part No: 659301

$3,100.00
Freedom 340 MIG Synergic / Manual Compact Inverter welder 415V BT Weld 659341

Freedom 340 MIG Synergic / Manual Compact Inverter

Part No: 659341

$3,150.00

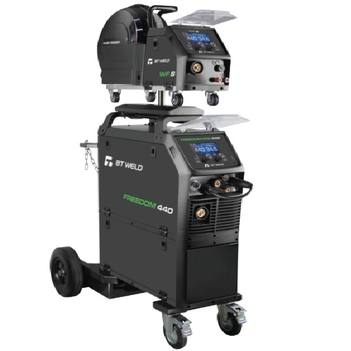

Freedom 440 MIG Synergic / Manual Compact Inverter Welder 415V BT Weld 659441
