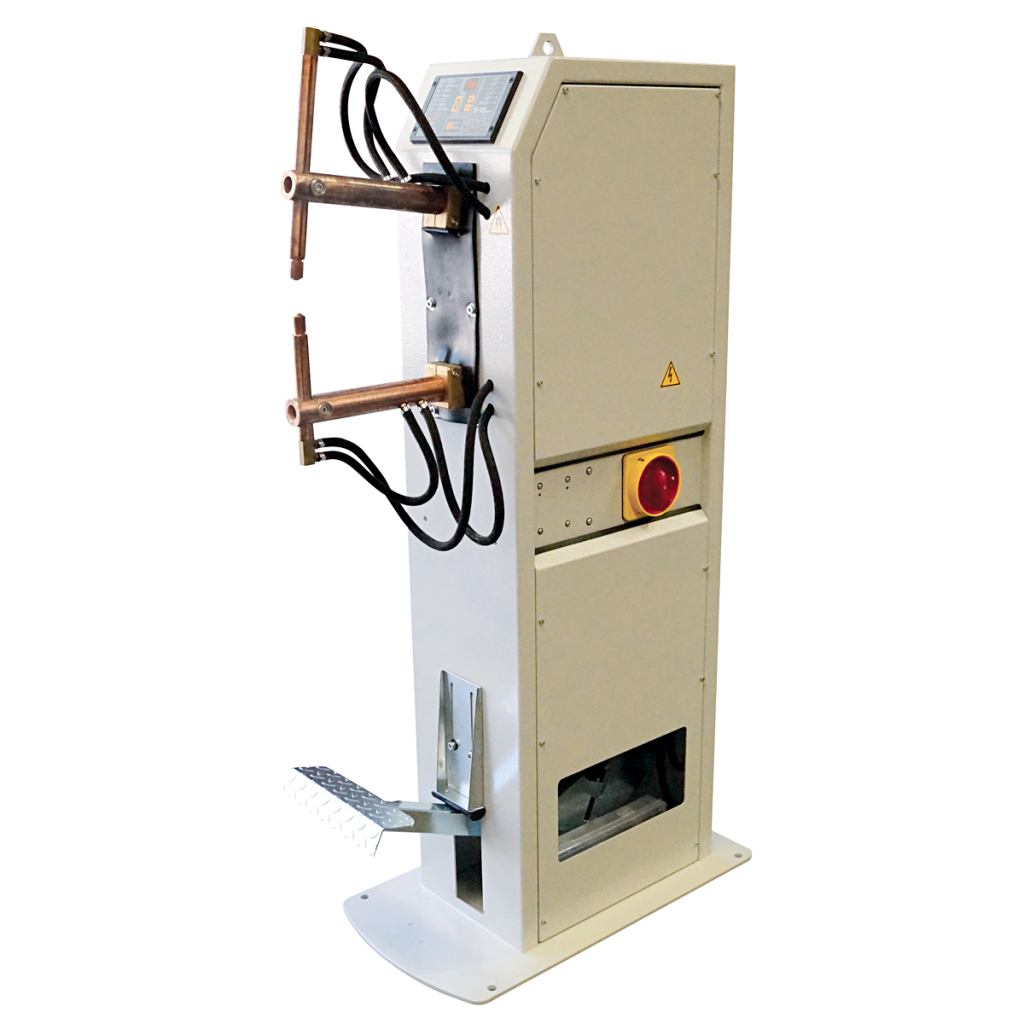

Foot operated spot welder 16 KVA  - 4640

TECNA spot welders are designed to meet every need of spot welding.
The new stationary ergonomic frame designed by TECNA helps to facilitate the operator's work.
The control unit has been positioned frontally to allow the operator to view the welding data even during the working cycle.
The pneumatic commands and the compressed air pressure gauge have been placed at the top for easier adjustment and reading.

MAIN FEATURES

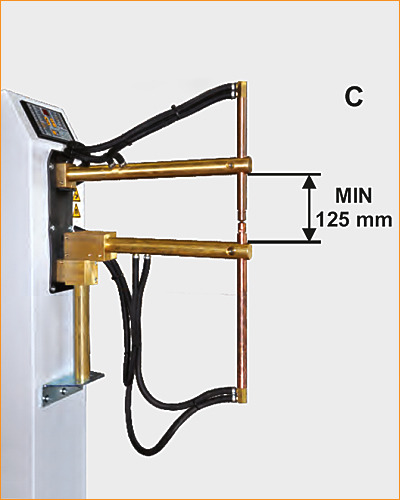

  • Arms adjustable in length allowing a better working flexibility.

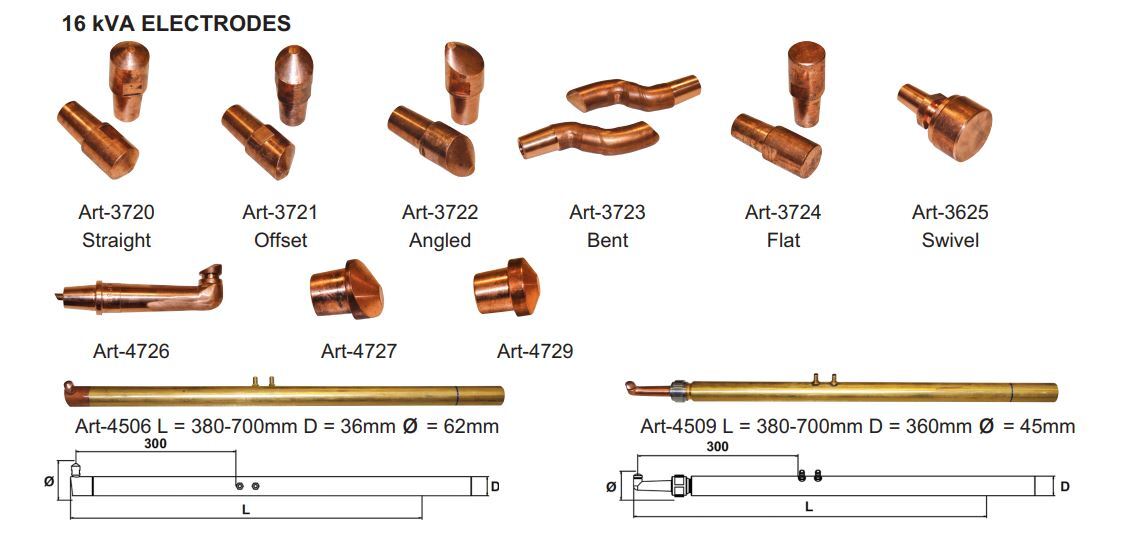

  • Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting.
  • Adjustable electrode stroke.
  • Epoxy resin coated transformer.
  • Water-cooled transformer, arms and electrodes.
  • Microprocessor control unit TECNA TE90.

Adjustable electrode force; a microswitch starts the welding cycle when the desired pre-set value is reached. The foot pedal is adjustable in length.


* Some Spot Welders require special electrical requirements. If you are unsure an electrician can help determine what is needed with our Spot Welder Calculators.

We will customize machine to your need. Free Design

Pick up only item. Customer has to pick up.


Part Number/SKU: 4640

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

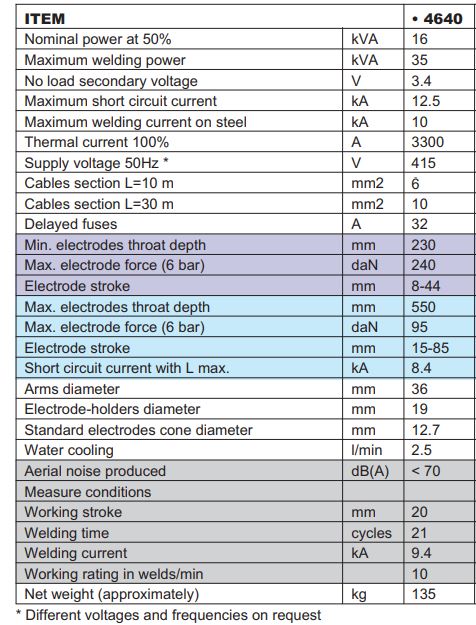

TECHNICAL DATA

ITEM 4640 4641 4642 4643 4644
Nominal power at 50% kVA 16 20 20 25 25
Maximum welding power kVA 35 48 39 68 55
No load secondary voltage V 3.4 4 4 4.6 4.6
Maximum short circuit current kA 12.5 14.5 12 18 14.5
Maximum welding current on light alloys kA - - - 16.3 -
Maximum welding current on steel kA 10 11.6 9.6 14.4 11.6
Thermal current 100% A 3300 3500 3500 3800 3800
Supply voltage 50Hz * V 400 400 400 400 400
Cables section L=10 m mm2 6 10 10 16 16
Cables section L=30 m mm2 10 10 10 16 16
Delayed fuses A 32 40 40 50 50
Min. electrodes throat depth mm 230 230 380 230 380
Max. electrode force (6 bar) daN 240 240 150 240 150
Electrode stroke mm 8-44 8-44 10-60 8-44 10-60
Max. electrodes throat depth mm 550 550 700 550 700
Max. electrode force (6 bar) daN 95 95 80 95 80
Electrode stroke mm 15-85 15-85 15-105 15-85 15-105
Short circuit current with L max. kA 8.4 10 8.8 13 10.5
Arms diameter mm 36 40 40 40 40
Electrode-holders diameter mm 19 22 22 22 22
Standard electrodes cone diameter mm 12.7 14.8 14.8 14.8 14.8
Water cooling l/min 2.5 3 3 3.7 3.7
Aerial noise produced dB(A) < 70 < 70 < 70 < 70 < 70
Measure conditions
working stroke mm 20 20 20 20 20
welding time cycles 21 17 26 14 20
welding current kA 9.4 11 9 13.5 11
working rating in welds/min   10 10 10 10 10
Net weight (approximately) kg 135 143 146 145 148

* Different voltages and frequencies on request

SKU 4640
Brand Tecna
Shipping Weight 250.0000kg
Shipping Width 1.200m
Shipping Height 1.800m
Shipping Length 1.200m
Shipping Cubic 2.592000000m3
Unit Of Measure ea
